SECTION 2 VTG-IOM-2016-1214 INSTALLATION
2-27
Note: All installations must be in compliance with local and national codes. Typical installation diagrams con-
tained in this manual are for reference purposes only.

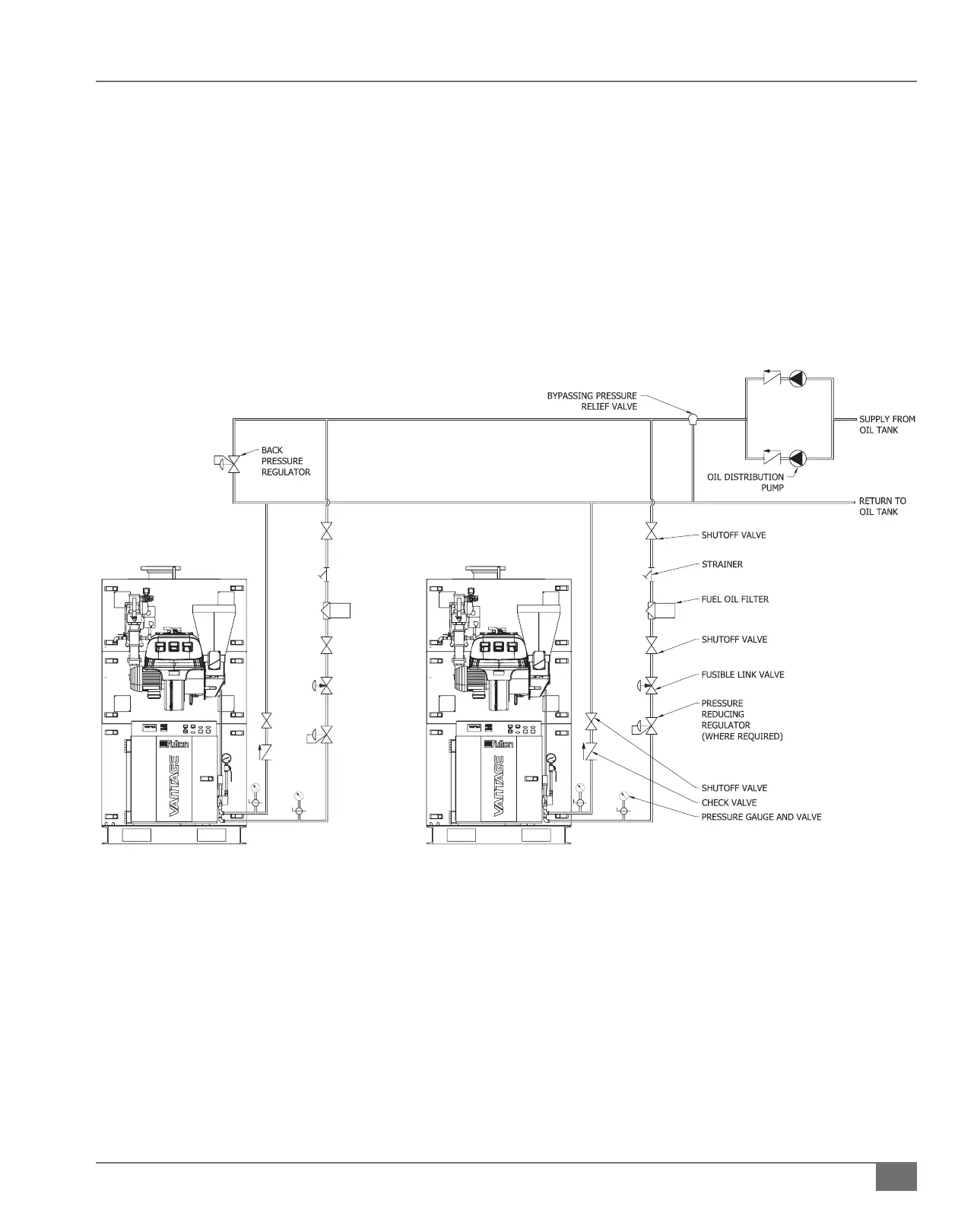

FIGURE 17  SYSTEM USING COMMON OIL PIPING FOR MULTIPLE BOILERS
(INSTALLED HORIZONTALLY)
(HANDLE REMOVED)
