2. Verify settings of the upper door. The upper door is retained by (4) 1-1/8”
nuts. Tools required for upper door setting verication:
 1-13/16” socket and ¾ x ½” adapter (U.S. only; these were
provided from the factory and should be stored in a safe place
in the boiler room). If these components have been misplaced,
please contact Fulton to purchase replacement components.
Upper Door
Lower Door
Tighten nuts in
criss-cross pattern
1st
3rd
4th
2nd

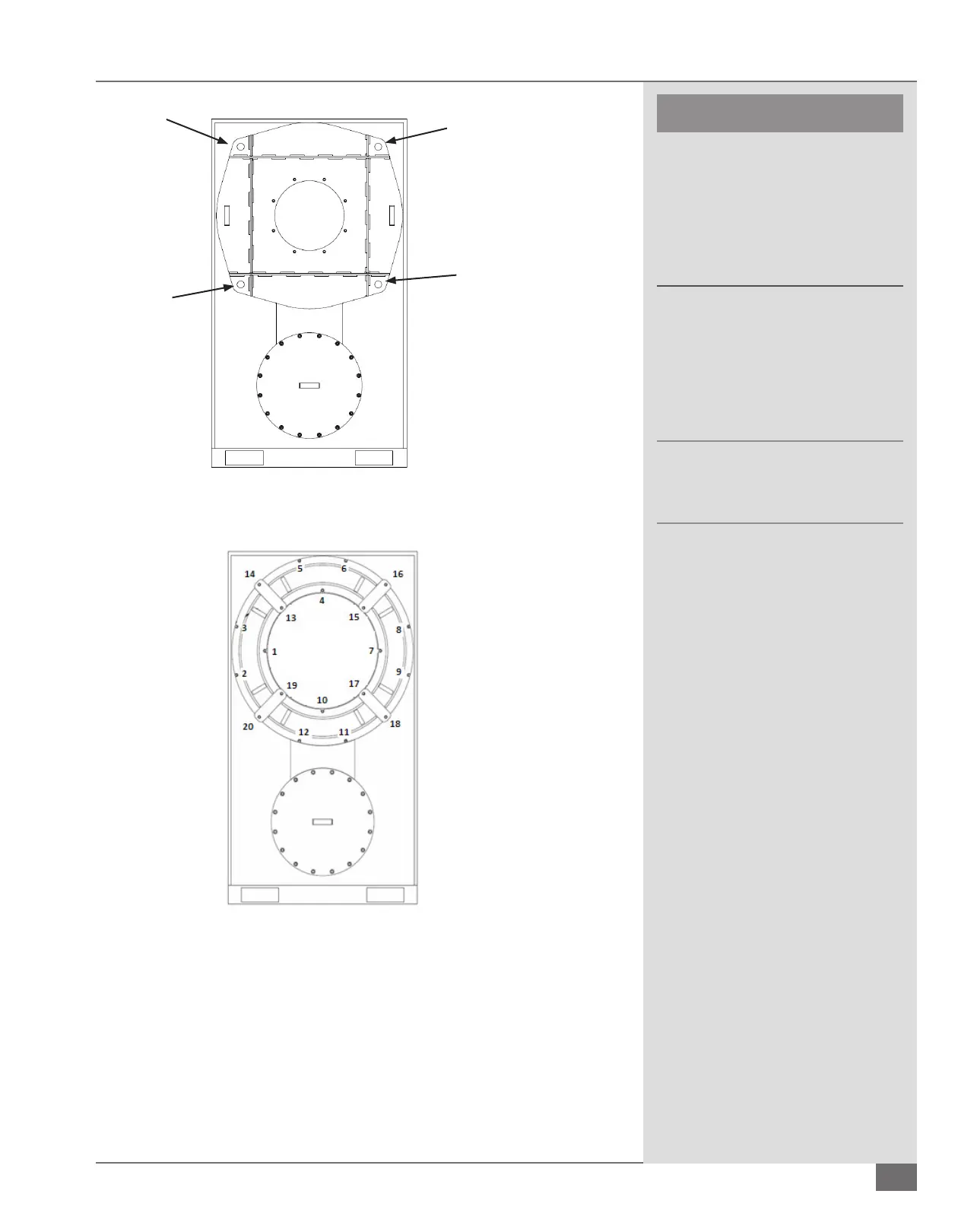

FIGURE 24  VERIFYING TORQUE SETTINGS FRONT VIEW, PANELS REMOVED
VTG2000 THROUGH VTG5000
Upper Outer
Doors (QTY 4)
FIGURE 25  VERIFYING TORQUE SETTINGS FRONT VIEW, PANELS REMOVED
VTG6000
Lower Door
Tighten nuts in
numbered pattern
