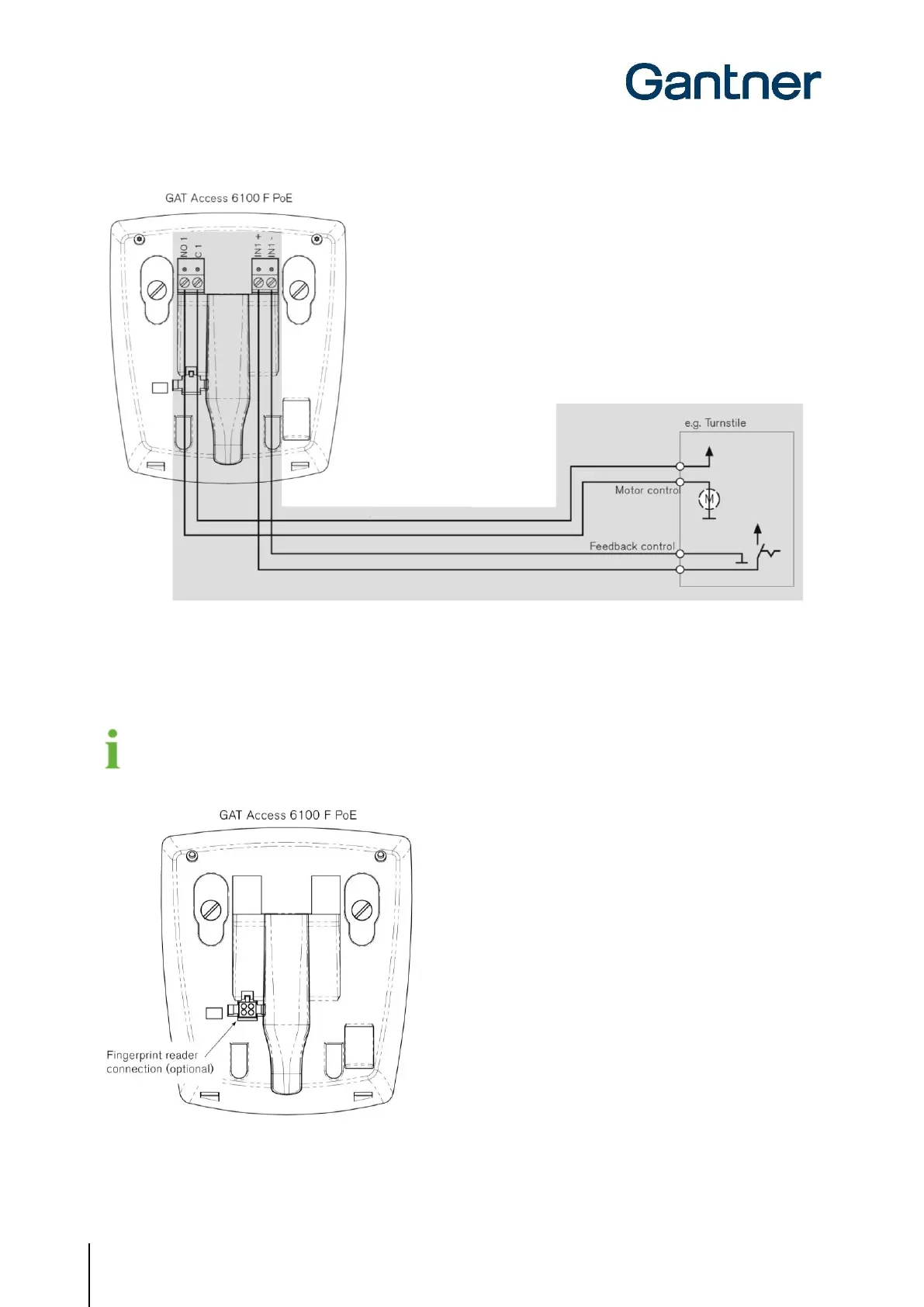

Figure 4.7 - Connection of the GAT Access 6100 F PoE to a turnstile
The GAT Access 6100 F PoE provides the option of connecting a GAT FR 055 (Part No. 557433) or GAT FR 055
FIU3k (Part No. 557534) fingerprint reader. The fingerprint reader cable connects to the 4-pin socket on the rear part
of the GAT Access 6100 F PoE as shown in Figure 4.8.
See the GAT FR 055 datasheet for detailed information on installing and connecting a GAT FR 055 / GAT FR
055 FIU3k.
Figure 4.8 - Connection of a fingerprint reader to the GAT Access 6100 F PoE
