177 232003110G (03)

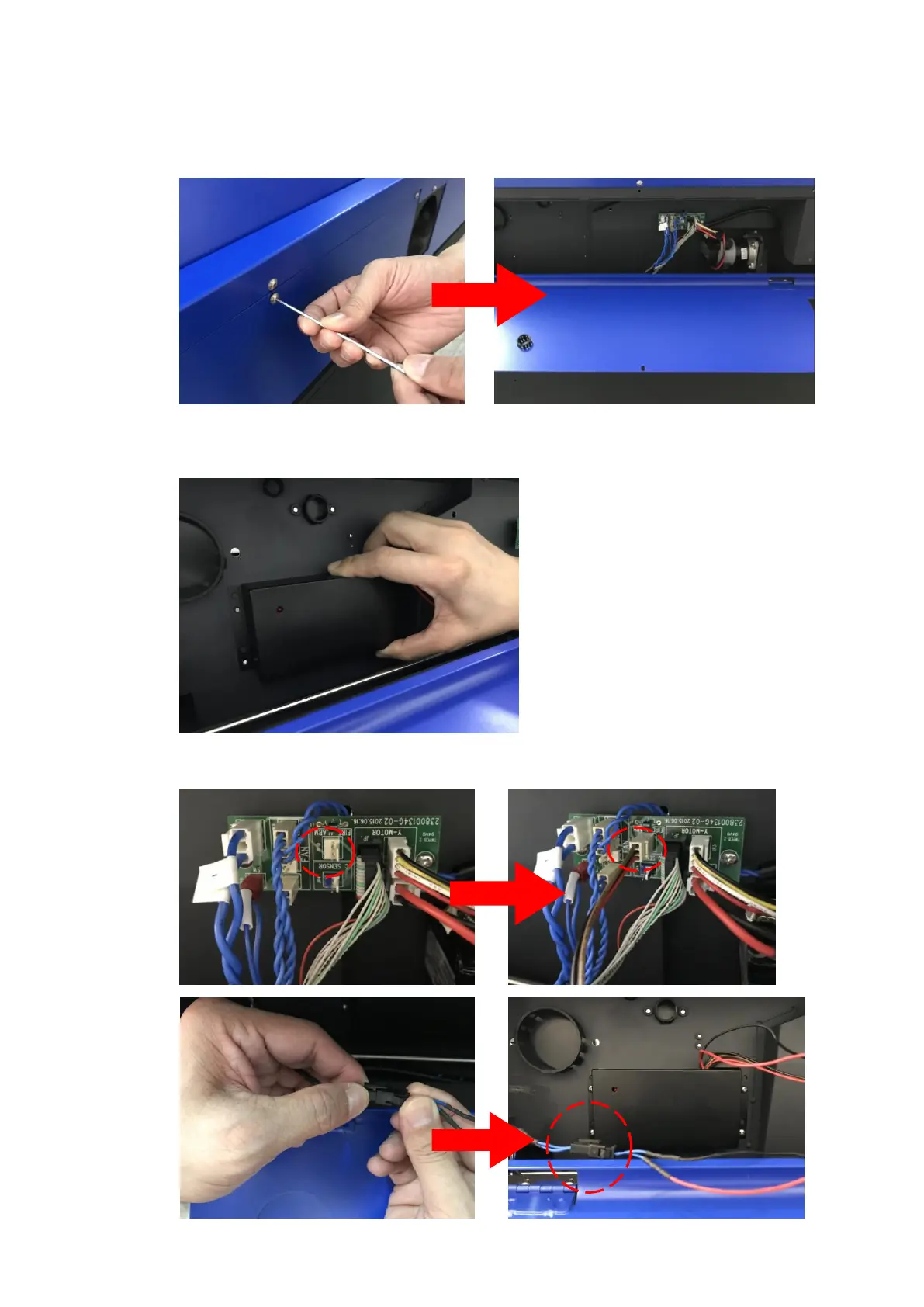

3. Remove the protective cover from the rear.
4. Place the SmartGUARD sensor board on the reserved place.
5. Connect the wire from the SmartGUARD sensor board to the Y motor PCB.
