7.2 Air Compressor
Specifically designed for laser engravers, the air compressor utilizes an oil-free diaphragm.
The air compressor helps to eliminate harmful and potentially damaging moisture from the laser optics,
maximizing life of the laser optics. In addition, the air compressor provides an optimal airflow to the
SmartAIR nozzles to minimize flaming, suppress working temperatures, and blow away dust and particle
by products generated from the laser process. GCC LaserPro S400 provides an air control by pen color
function in Windows driver to enable or disable air assist automatically per different pen jobs. Refer to Chapter
5.2.4.2 about driver operation in pen page.
INST
ALLA
TION:

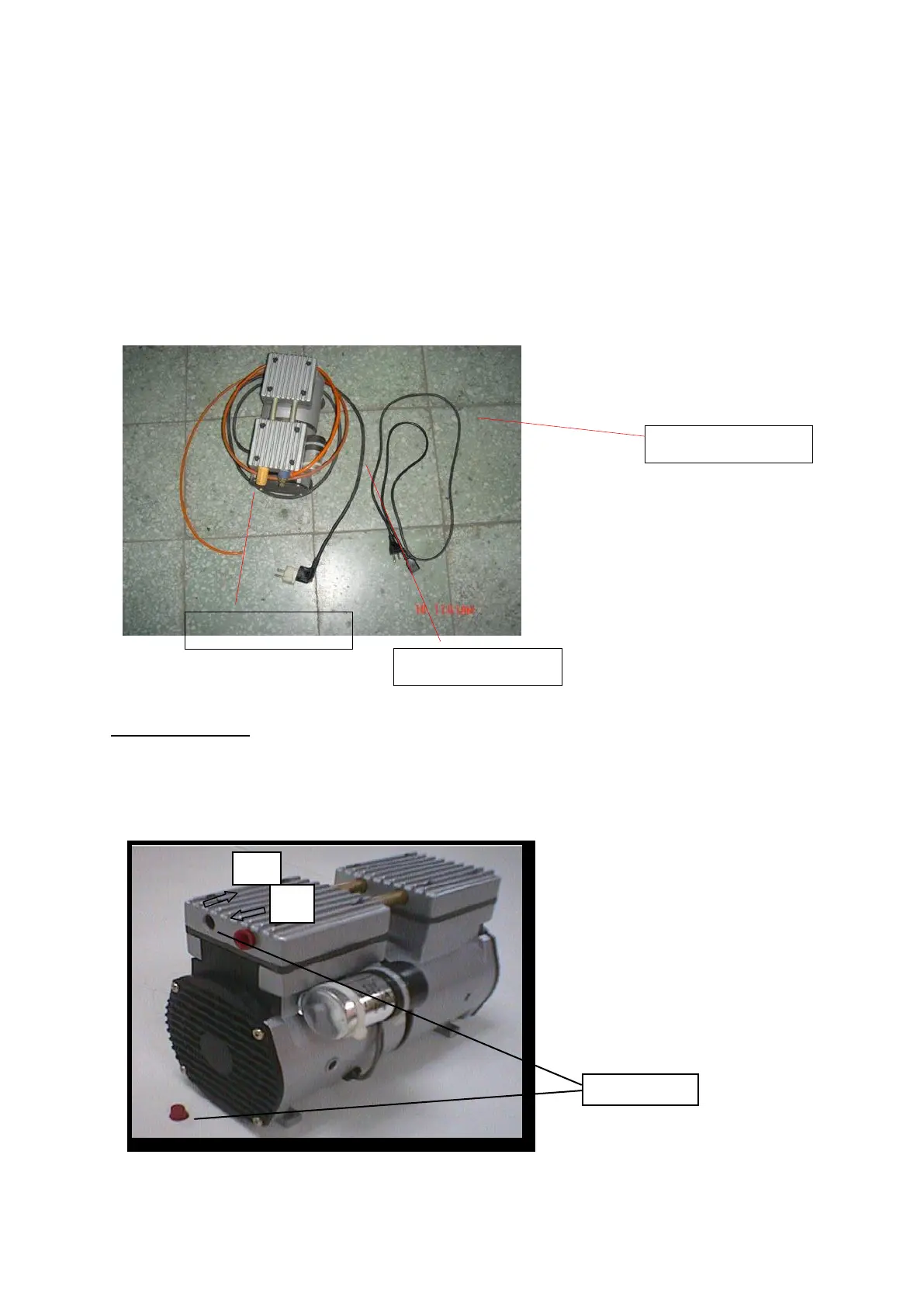

1) Remove the plugs on the air compressor to expose the air inlets.
2) Fasten the included air tube fastener valve to the outgoing air inlet (indicated by 2a) and the
air filter into the ingoing air inlet (indicated by 2b).
Plugs
3) Connect a 1/4" tubing to the air tube fastener valve on the air compressor.
