183 232003110G (03)
8.2 Maintaining the Work table and Motion System
8.2.1 Accessing the Work Table and Motion System
It will be important to gain full access to the work table and motion system to properly clean and
maintain these areas. To do so, you will need to lift the SmartLID. You can do this via the
following steps:
Opening the SmartLID:

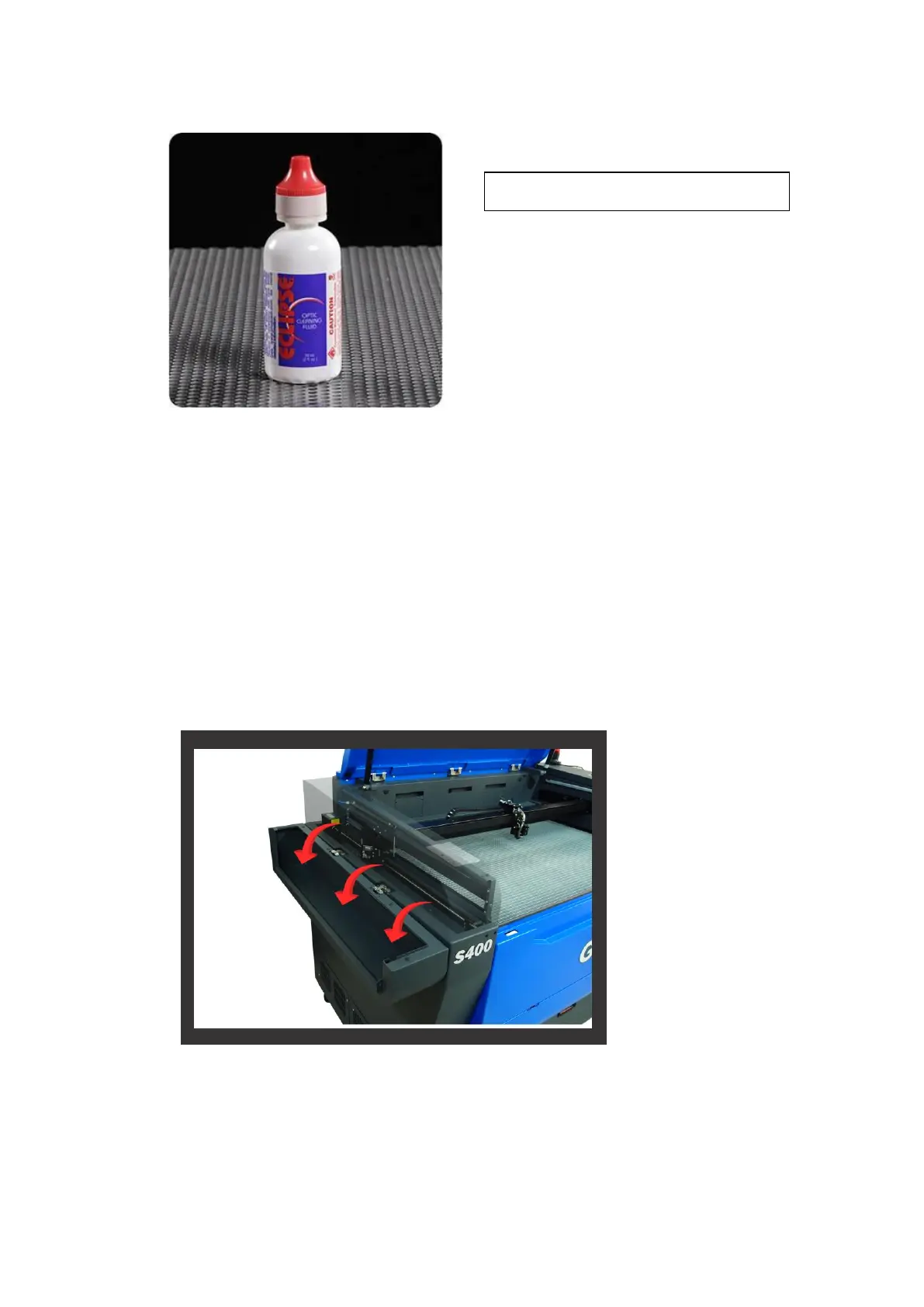

1) The top lid of the machine can be lifted open by using the handles from the rear side of the
LaserPro S400. Lift the lid to the maximum (indicated by a small click) to engage the latch (as
shown in the picture below).
Eclipse Cleaning System Solution
