7.3 Focus Lens Options
7.3.1 CO2 Laser Focus Lens
GCC offers four different focal lenses namely the 1.5”, 2.0”, 2.5”, and 4.0” for different applications. The
number description, 1.5”, 2.0”, 2.5”, and 4.0” signifies the distance of where passed through beam will
converge. For example, when a laser beam passes through a 2.0” focus lens, the beam will converge at a
2.0” distance resulting in a concentration of energy at that spot.

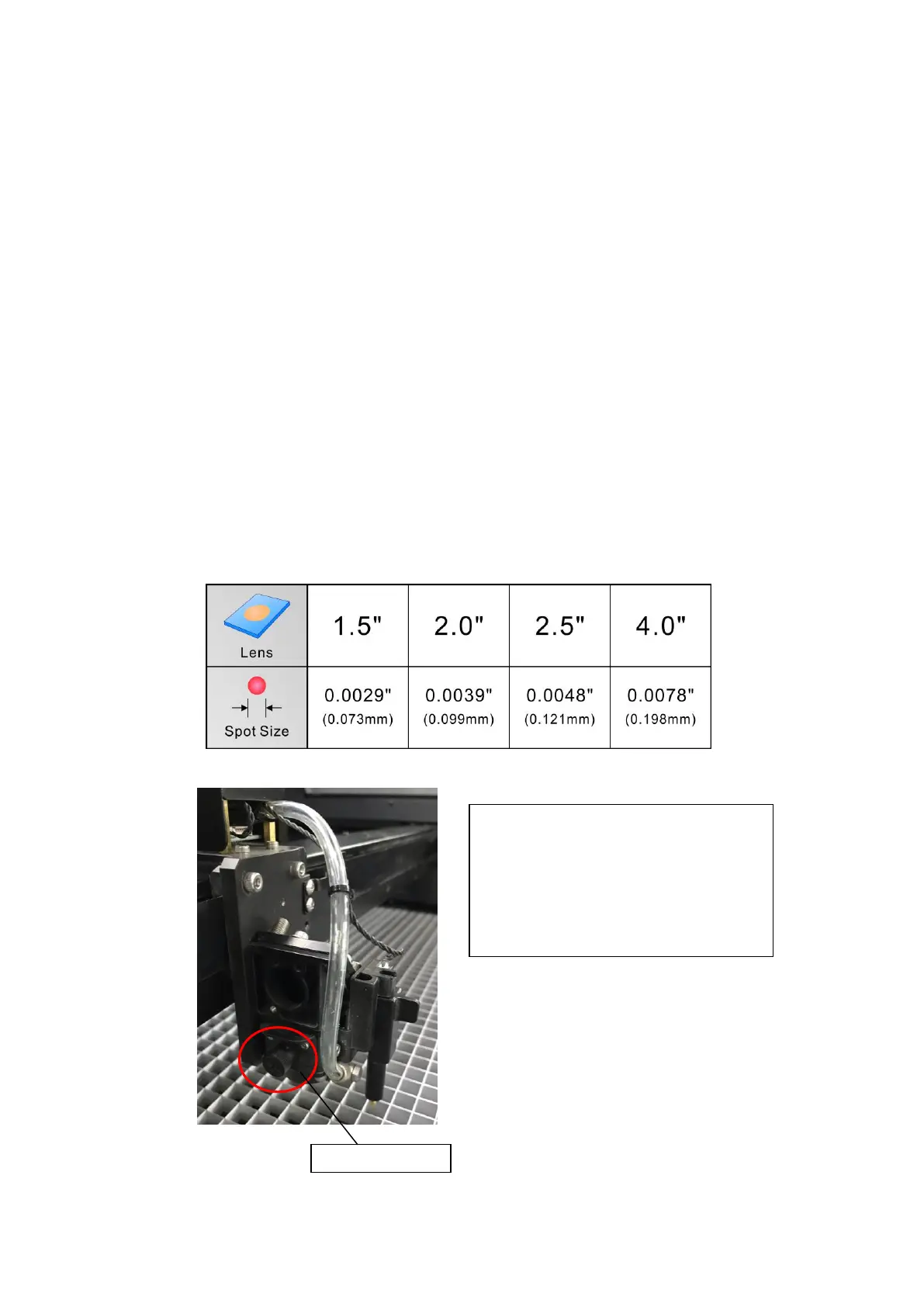

The resulting spot size from the different focus lens are a o different and the following chart shows the
different spot sizes achieved from the different lenses.
1.5” Lens: The 1.5” lens is best when used for engraving of very fine detail
2.0” & 2.5“ Lens: The 2.0” & 2.5“ lenses are good for normal engraving and cutting of up to 10mm
thick acrylic.
4.0” Lens: The 4.0” lens is good for 10mm and above acrylic cutting.
Unscrew the three thumb screws on
lens carriage to remove the carriage
panel. Take out the lens carriage and
insert the optional one for different
applications.
