162 232003110G (03)

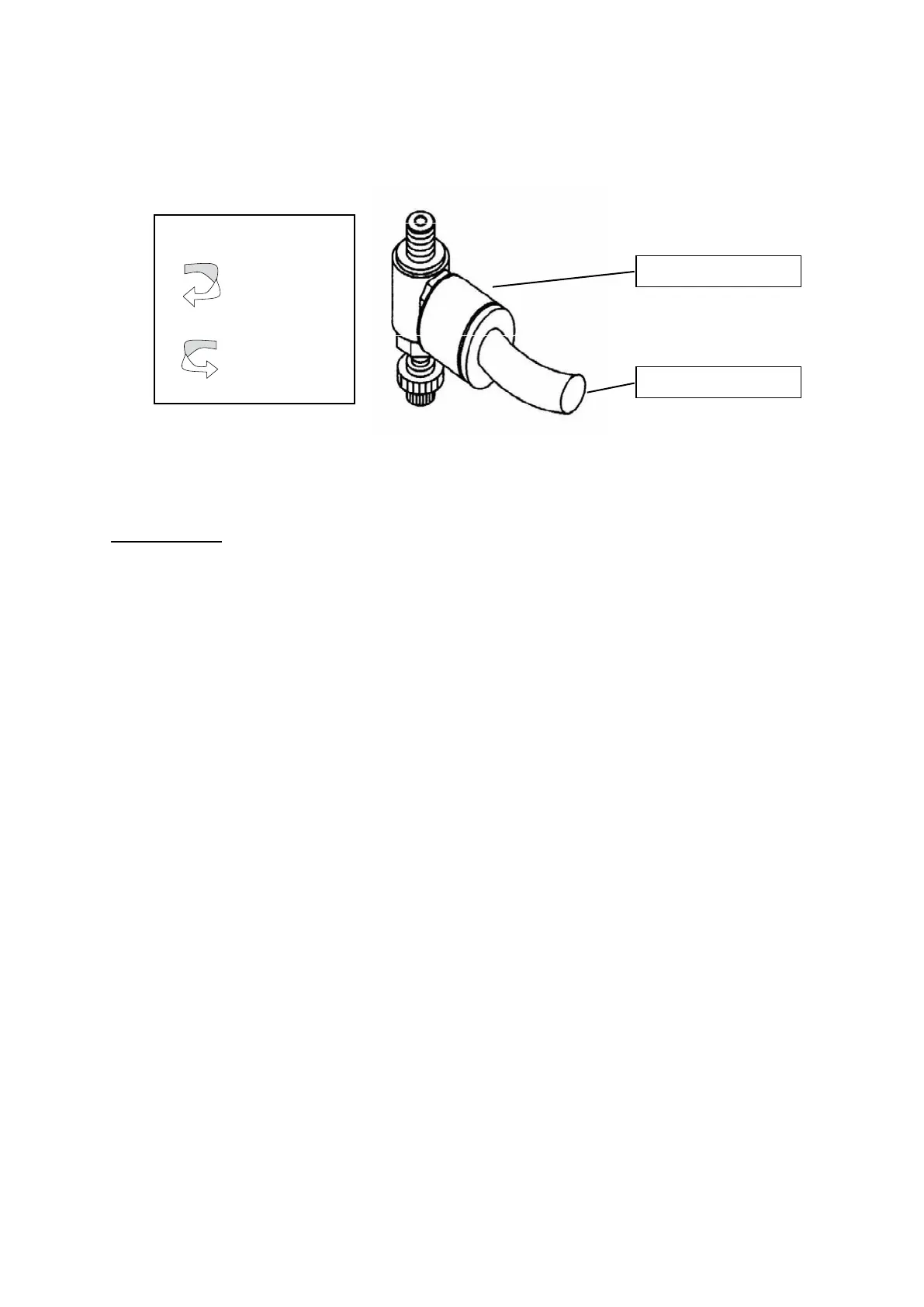

7) Take the unattached end of the 1/4" air tubing (other end already connected to air compressor) and
connect it to the air tube connector on the air assist valve. Make sure you press down on the air tube
fastener when inserting the 1/4" air tubing, to form a tight, secure attachment as indicated in the
diagram below.
Air Flow Regulator:
Turn Clockwise
to increase
airflow
Turn Counter-
Clockwise to
decrease
Air Tube Fastener
Air Tube Connector
8) Congratulations, you have finished setting up the air compressor. Make sure you have the proper
SmartAIR nozzle installed (depending on your application), before you turn on and utilize the air
compressor.
OPERATION:
Switch on the air compressor unit and make sure that the airflow regulator on the air assist value is opened
(turn clockwise to increase the airflow, counter-clockwise to decrease the airflow). The air nozzle under the
laser head should emit a steady flow of air.
With the SmartAIR nozzle and air compressor properly installed and operating, all configurations and
settings relating to air-assist functions are controlled through the LaserPro S400 print driver and hardware
control panel. Please refer to the LaserPro S400 PEN page on print driver section of this manual for
detail on how to enable and configure air-assist functionality.
