Equipment Overview: Front Panel Displays

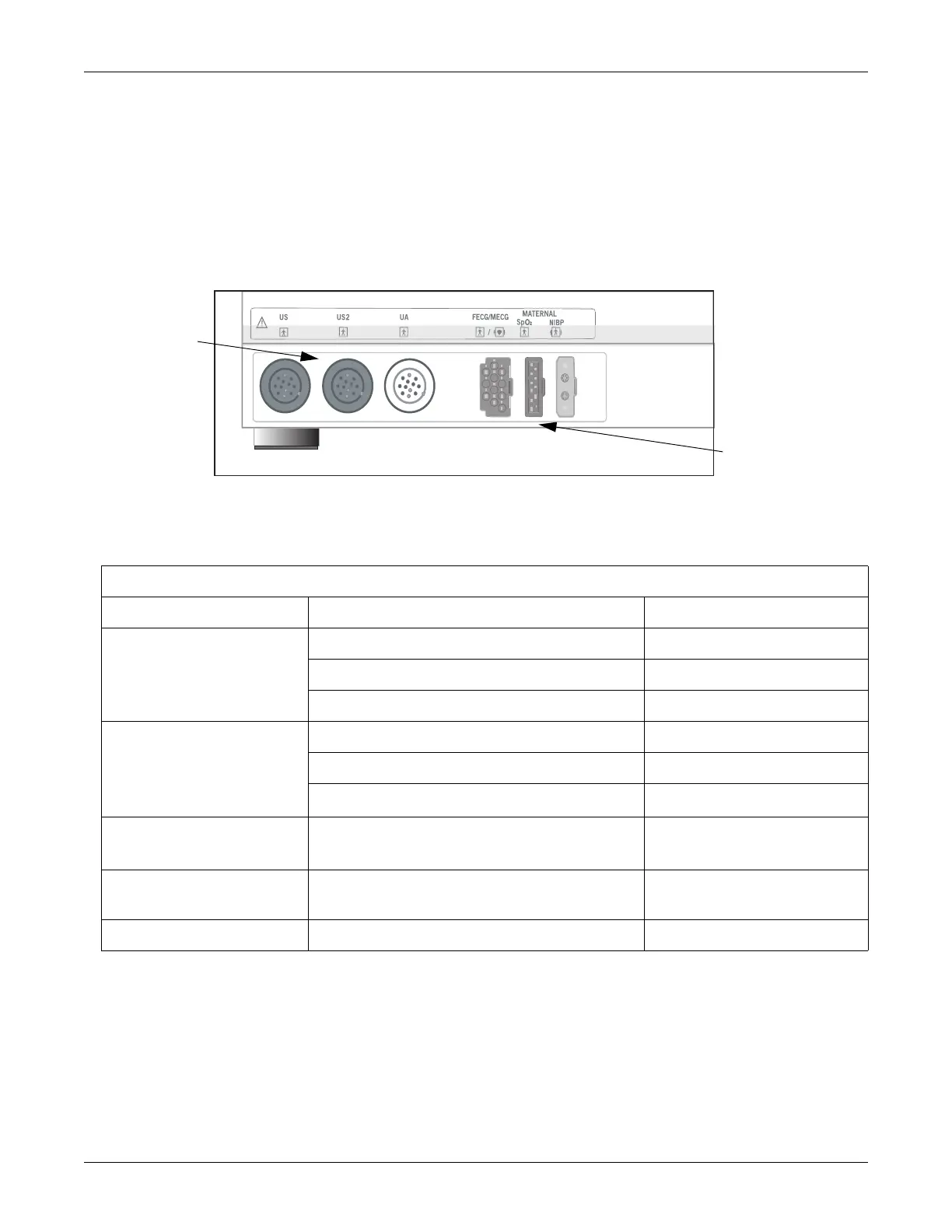

Front Panel Displays
The monitor is divided into two main sections: patient information (the left-side of
the monitor) and monitor functionality (the right-side of the monitor). The keys are
ordered for user efficiency.The content and layout of the display can change,
depending on which functions are installed in the monitor and the modes of
operation in use.
Maternal and Fetal Parameters
Primary Labor
Parameters
(Fetal)
Additional
Parameters
(Maternal)
Table 2. Display Summary
Display Section Item Mode
Primary Labor Parameters
(upper portion of monitor)
Fetal Heart Rate 1 (FHR1) US, US2, FECG, or INOP
Fetal Heart Rate 2 (FHR2) US, US2, or INOP
Uterine Activity (UA) TOCO, IUP, or INOP
Additional Parameters
(Available in Maternal/Fetal
Monitor only)
Maternal Blood Pressure NIBP
Maternal Heart/Pulse Rate MECG, Pulse or INOP
Maternal SpO
2
MSpO
2
Waveform Fetal ECG Waveform, Maternal ECG Waveform, or
Maternal SpO
2
Pulsatile Waveform
FECG, MECG, MSpO
2
, or Off
Time Current Time, [Label] Frozen Message and Time of
Activation
—
Softkeys System Configuration Softkey Controls —
To Next Page
