2-12 250 Series Maternal/Fetal Monitor Revision D
2020551-001

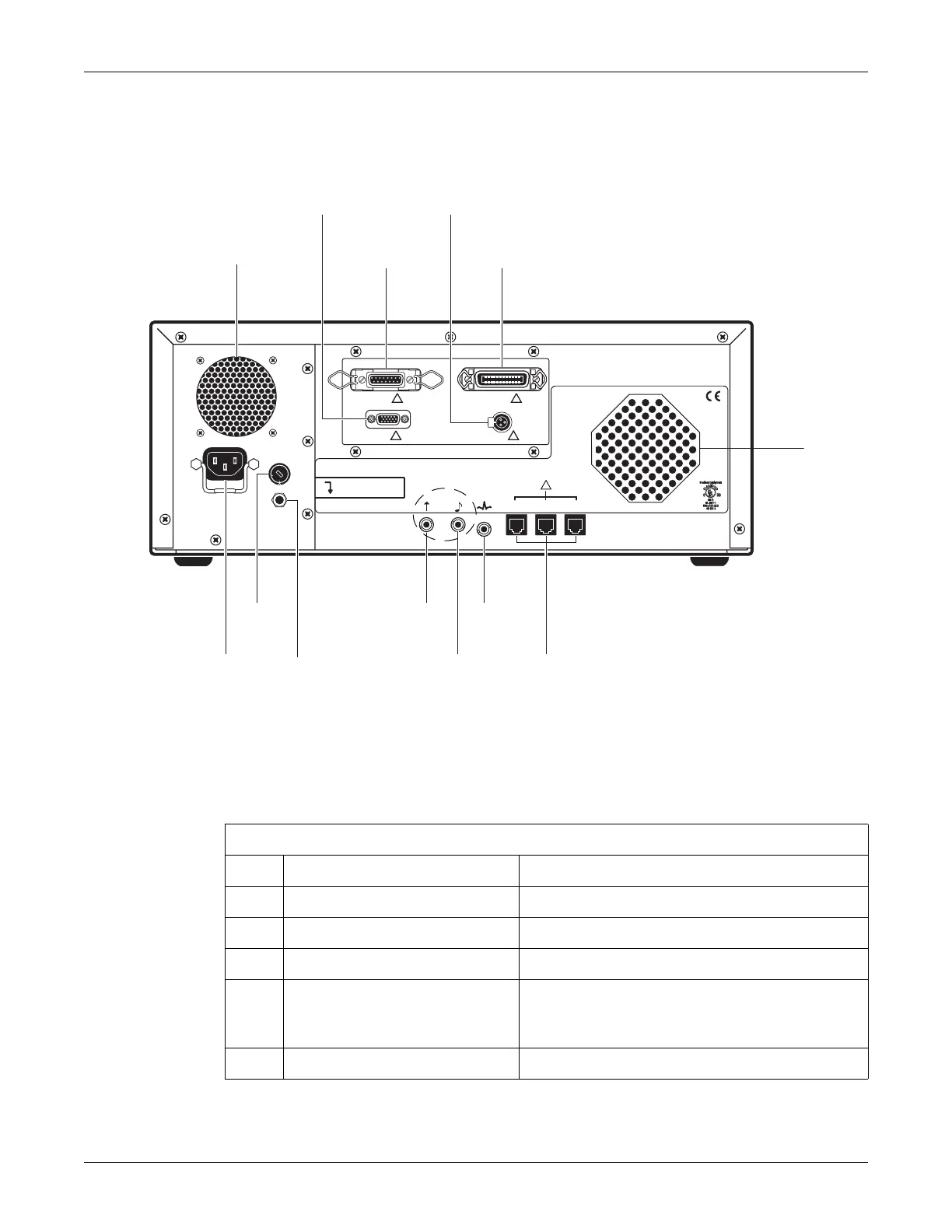

Equipment Overview: Rear Panel Description
Rear Panel Description
Monitor Rear Panel Connectors (Standard and Optional)
IMPORTANT: The Fetal Acoustic Stimulator and Remote Event
Marker connectors are identical in size and shape. Be sure you connect to
the proper connector to ensure accurate information.
120
2
4
0
CAUTION: FEDERAL
LAW RESTRICTS THIS
DEVICE TO SALE BY
OR ON THE ORDER OF
A PHYSICIAN.
J103
J102
J109
RS232C
J110
RS232C
J111
RS232C
!
J101
!
J104
PUSH
!
!
!
100 -120V ~ 50-60HZ 100W
Munzinger Strae 3-5; D-79111 Freiburg Germany
GE Medical Systems Information Technolgies GmbH
European Representative
8200 West Tower Avenue; Milwaukee, WI, USA
GE Medical Systems Information Technologies, Inc
0086
CANADIAN PATS. 1,057,360 1,214,143
U.S. PATS. 3,982,528 4,533,926 4,573,479
A
B
C
D
E
M
L
K
J
I
H
G
F
Table 5. 250 Series Rear Panel (Standard and Optional Features)
Name Description
A Vent
Provides ventilation for the monitor’s internal circuitry.
B J101 Telemetry Connector Connector for Corometrics 340 telemetry system interface.
C J103 Data Entry Connector Connector for data entry system interface.
D
J104 Nurse Call Connector Connector for standard Nurse Call System interface. The
connector’s maximum output is 50 Vdc at 100 mA; the
maximum on resistance is 0.5 .
E J102 Central Systems Connector Connector for analog central station system interface.
