3-10 250 Series Maternal/Fetal Monitor Revision D
2020551-001
Installation: Setup

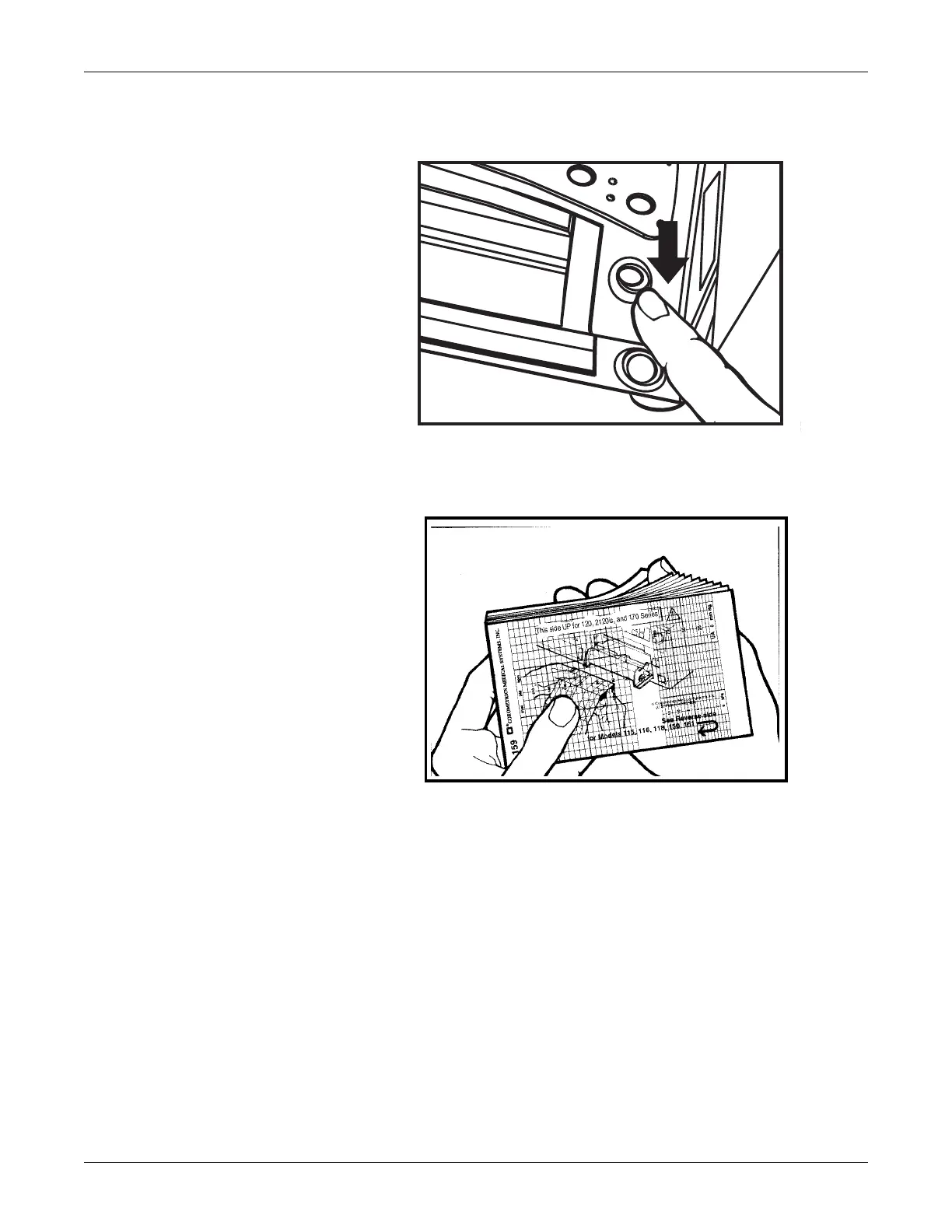

1. Press down on the latch on the right side of the strip chart recorder door.
2. Fan the pack of Z-fold paper on all sides to loosen any folds and to ensure
proper feed of the paper through the recorder.
3. Hold the package of paper so that:
the black squares are on the bottom of the pack; and
the Corometrics logo and page numbers are on the
left
side of the pack.
NOTE: The black squares indicate the end of the recorder paper. When the black
squares appear, the strip chart recorder has approximately 20 minutes of
paper remaining, when running at a speed of 3 cm/min.
NOTE:
The paper is marked, “This side up for the 120, 2120is, and 170 Series.” This
