GE Corometrics 250 Series User Manual

4-18 250 Series Maternal/Fetal Monitor Revision D
2020551-001
Maintenance: Electrical Safety Tests
Patient–to–Chassis Using AC Voltage for 1 Minute

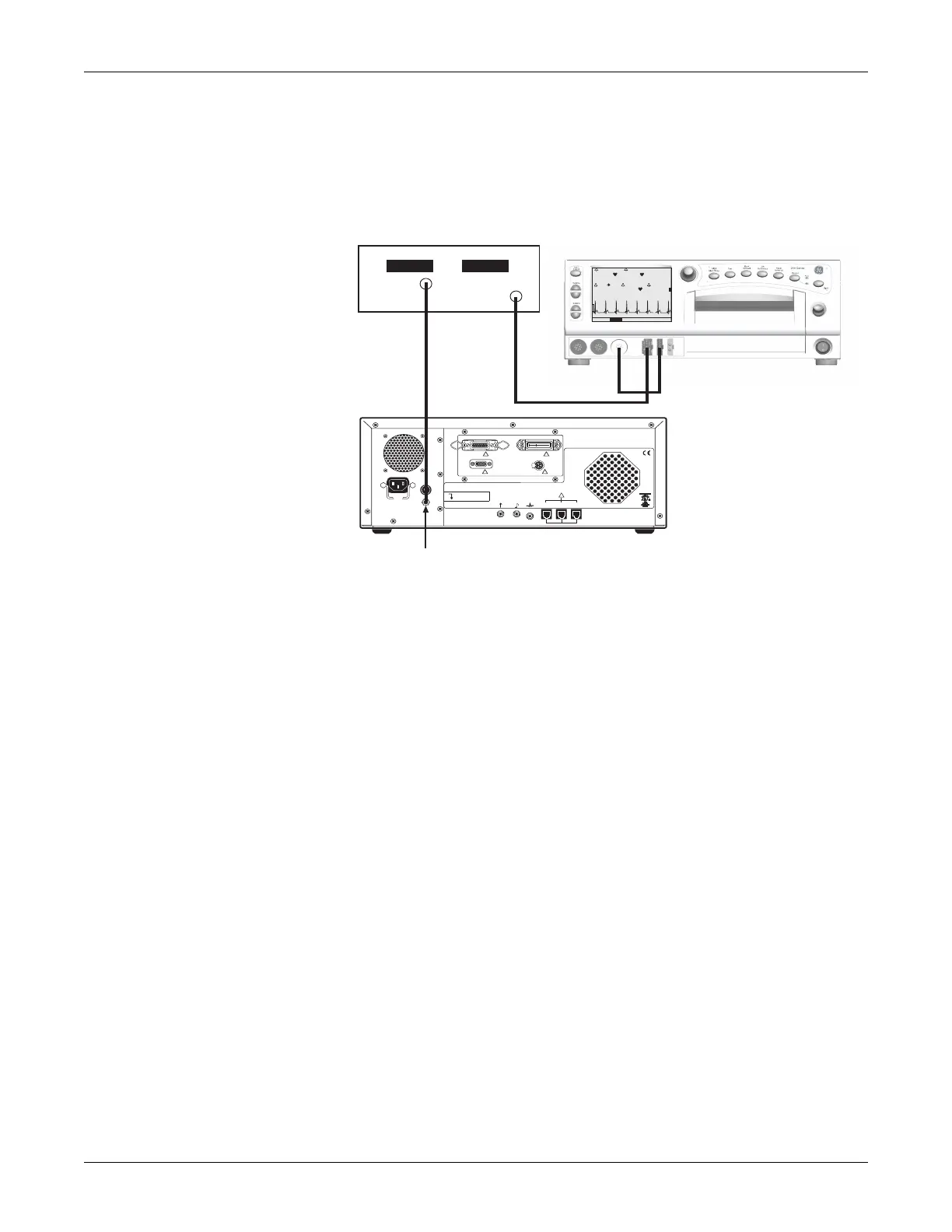

Connect the monitor to the hi-pot tester as shown below.
NOTE: The hi-pot tester voltage is 2.5 kVAC.
Patient–to–Chassis Using AC Voltage for 1 Minute (2.5 kVAC)
 FECG: Connect an FECG test body to the monitor’s front panel ECG input.
The FECG test body can be the assembly leakage cable. Measure the voltage
breakdown.
F pass F fail
 MECG: Connect an ECG test body to the monitor’s front panel ECG input. The
MECG test body can be a shorted MECG cable or the assembly leakage cable.
Measure the voltage breakdown.
F pass F fail
 IUP: Connect an IUP test body to the monitor’s front panel UA input. The IUP
test body can be a SensorTip cable (wrapped in aluminum foil) or the assembly
leakage cable. Measure the voltage breakdown.
F pass F fail
 MSpO
2
: Connect an MSpO
2
test body to the monitor’s front panel MSpO
2
input. The MSpO
2
test body can be an MSpO
2
cable and sensor (wrapped in
aluminum foil) or the assembly leakage cable. Measure the voltage breakdown.
F pass F fail
 US: Connect an US test body to the monitor’s front panel US input. The US test
body should be an ultrasound transducer wrapped in aluminum foil. Measure
the voltage breakdown.
F pass F fail
120
240
CAUTION: FEDERAL
LAW RESTRICTS THIS
DEVICE TO SALE BY
OR ON THE ORDER OF
A PHYSICIAN.
J103
J102
J109
RS232C
J110
RS232C
J111
RS232C
!
J101
!
J104
PUSH
!
!
!
100 -120V ~ 50-60HZ 100W
Munzinger Strae 3-5; D-79111 Freiburg Germany
GE Medical Systems Information Technolgies GmbH
European Representative
8200 West Tower Avenue; Milwaukee, WI, USA
GE Medical Systems Information Technologies, Inc
0086
CANADIAN PATS. 1,057,360 1,214,143
U.S. PATS. 3,982,528 4,533,926 4,573,479
165
172
30
87
98%
MECG
MSpO2
03:22:45
US2
FECG
TOCO
Print Freeze Alarms Setup VSHX
25 mm/s
II 2x
FECG
HBC
130/ 85
NIBP
MAP (107)
03:15
15:00
FMD
250 Series Monitor Front
Hi-Pot Tester
AC Out
Ground
Assembly Leakage Cable
250 Series Monitor Rear Panel
Equipotential (Ground Lug)
