System Setup
3-26 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Peripheral Connection
NOTE: Please refer to the operation manual of each peripheral for
information needed by the user to operate the system safely.
To install the peripherals, See ‘Peripherals Installation’ on
page 3-34 for more information.

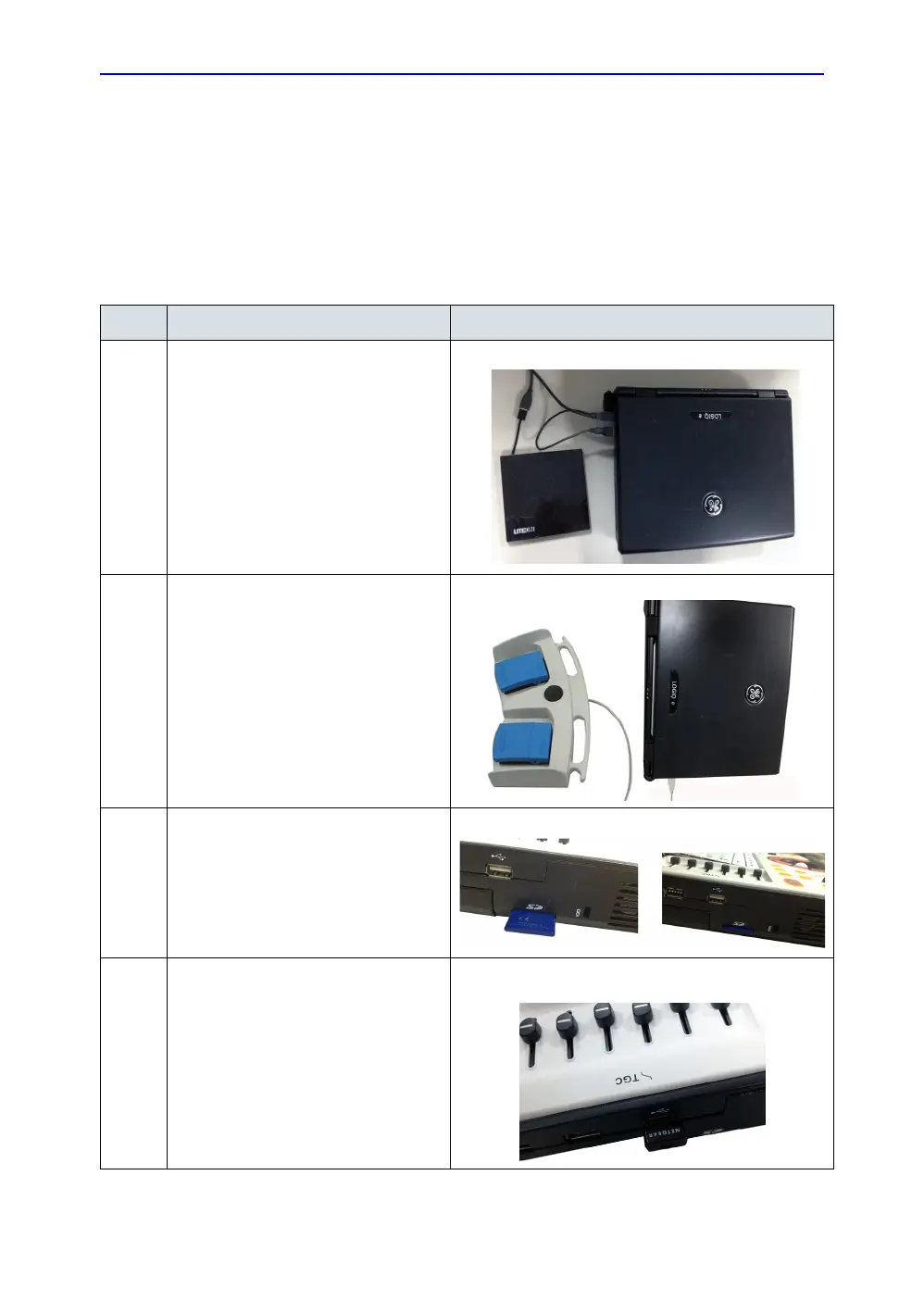

Table 3-10: Peripheral Connection
No. Steps Corresponding Graphic
1. Connect DVD-RW.
Connect the DVD-RW to the system.
The DVD-RW can be properly
connected using either of the 3 USB
ports.
NOTE: Do not connect the DVD-RW to
the system while scanning.
2. Connect Footswitch.
Connect the footswitch to the system.
The footswitch can be properly
connected using either of the 3 USB
ports.
3. Connect SD Card.
Connect SD Card to the system. Insert
the SD Card into the SD Card port.
4. Connect Wireless LAN Adapter.
Connect the Wireless LAN Adapter to
the system. The wireless LAN adapter
can be properly connected using either
of the 3 USB ports.
To Next Page
