Peripherals Installation
LOGIQ e – Basic Servic
e Manual
3-43
5461614-100
English Rev. 6
Wireless Lan Adapter Inst
allation
T
ools
No special tools needed.
Manpower
One person 5 min.
Prep
arations
1.
Unpack the Wireless LAN Adapter
.
2.
Ensure no physical damage.
Inst
allation Procedure
1.
Connect the Wireless LAN Adapter to
the USB port on the
LOGIQ e syst
em.

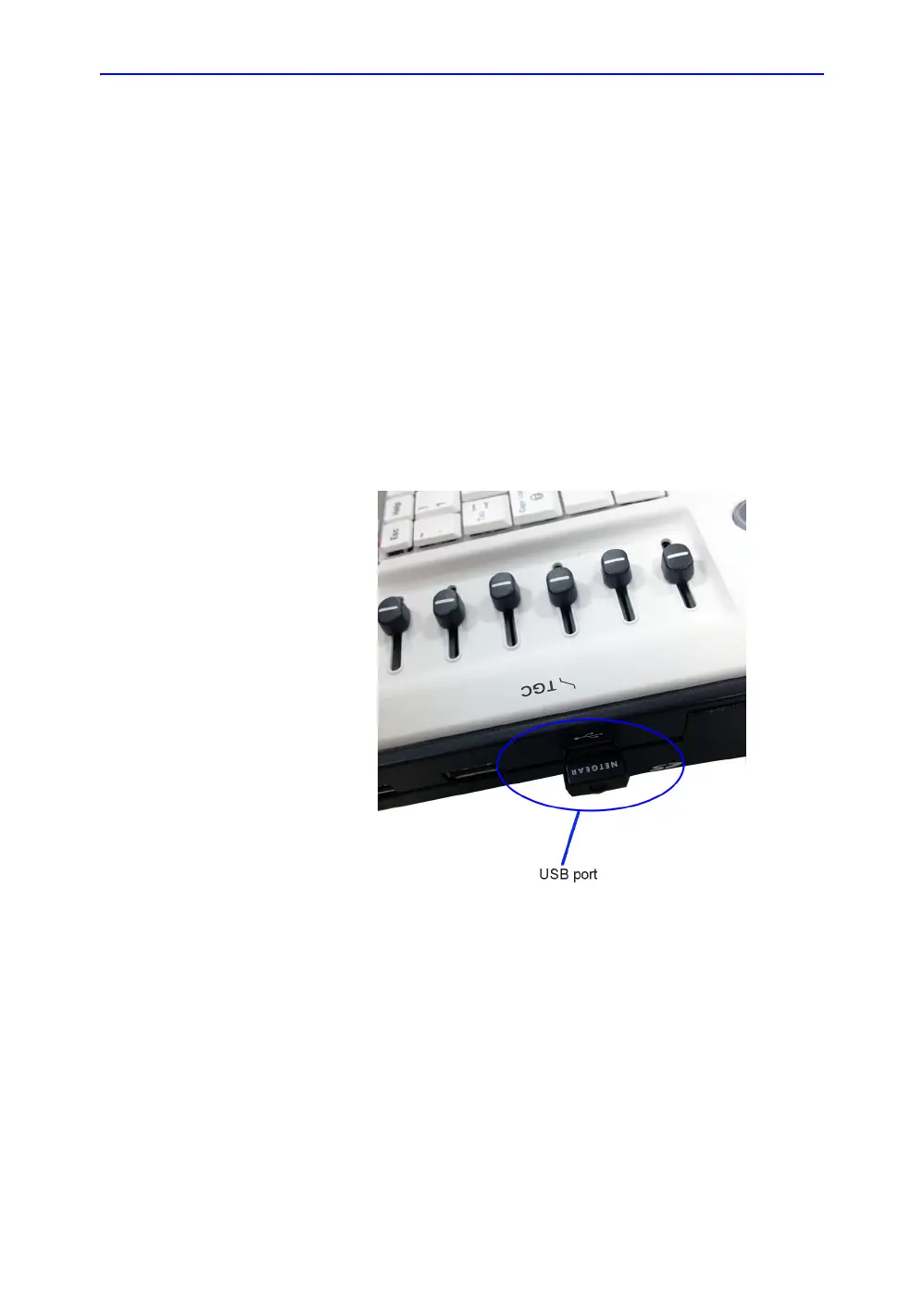

Figure
3-22.
Connect Wireless LAN Ad
apter to the system
122
124
