Peripherals Installation
LOGIQ e – Basic Servic
e Manual
3-47
5461614-100
English Rev. 6
Barcode Scanner Inst
allation
T
ools
No special tools needed.
Manpower
One person 1 min.
Prep
arations
1.
Unpack the Barcod
e Scanner
.
2.
Ensure no physical damage.
Inst
allation Procedure
1.
Connect the Barcode Scanner to the USB port on th
e
LOGIQ e syst
em.
Figure
3-26.

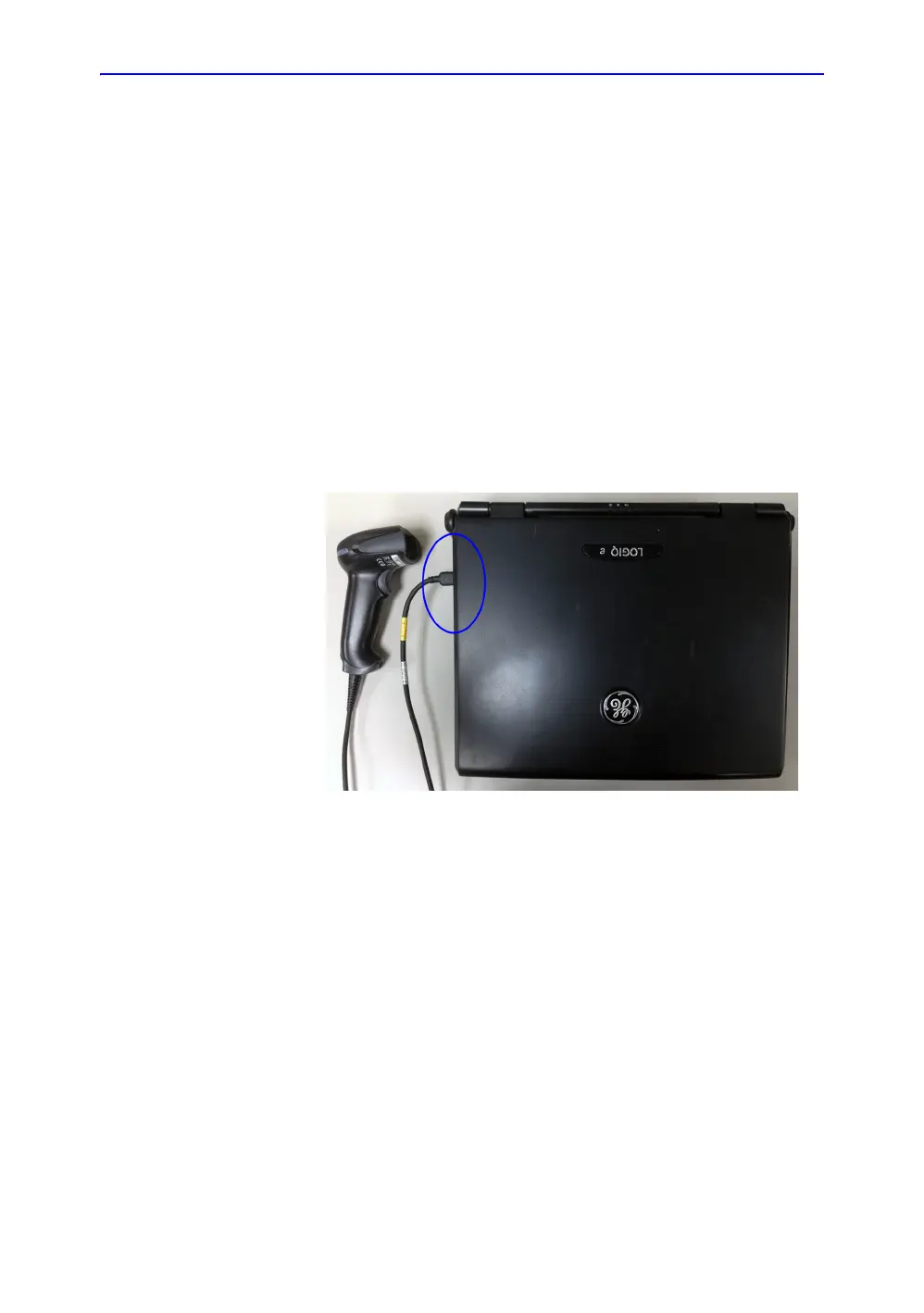

Connect Barcode Scanner to the system
126
128
