Peripherals Installation
LOGIQ e – Basic Service Manual 3-49
5461614-100 English Rev. 6
Barcode Scanner Installation (continued)
Set Up Barcode Scanner
The barcode scanner needs to be set up before the first use.
To set up the barcode scanner, follow the steps below:
1. Power on the system. Connect barcode scanner to the
system.
2. Scan the three barcodes.
First scan the Remove Custom Defaults barcode (1), then
scan the Activate Defaults barcode (2). This is to reset the
scanner to the factory default settings. Finally, scan the USB
Serial barcode (3). The Barcode scanner is ready for use.

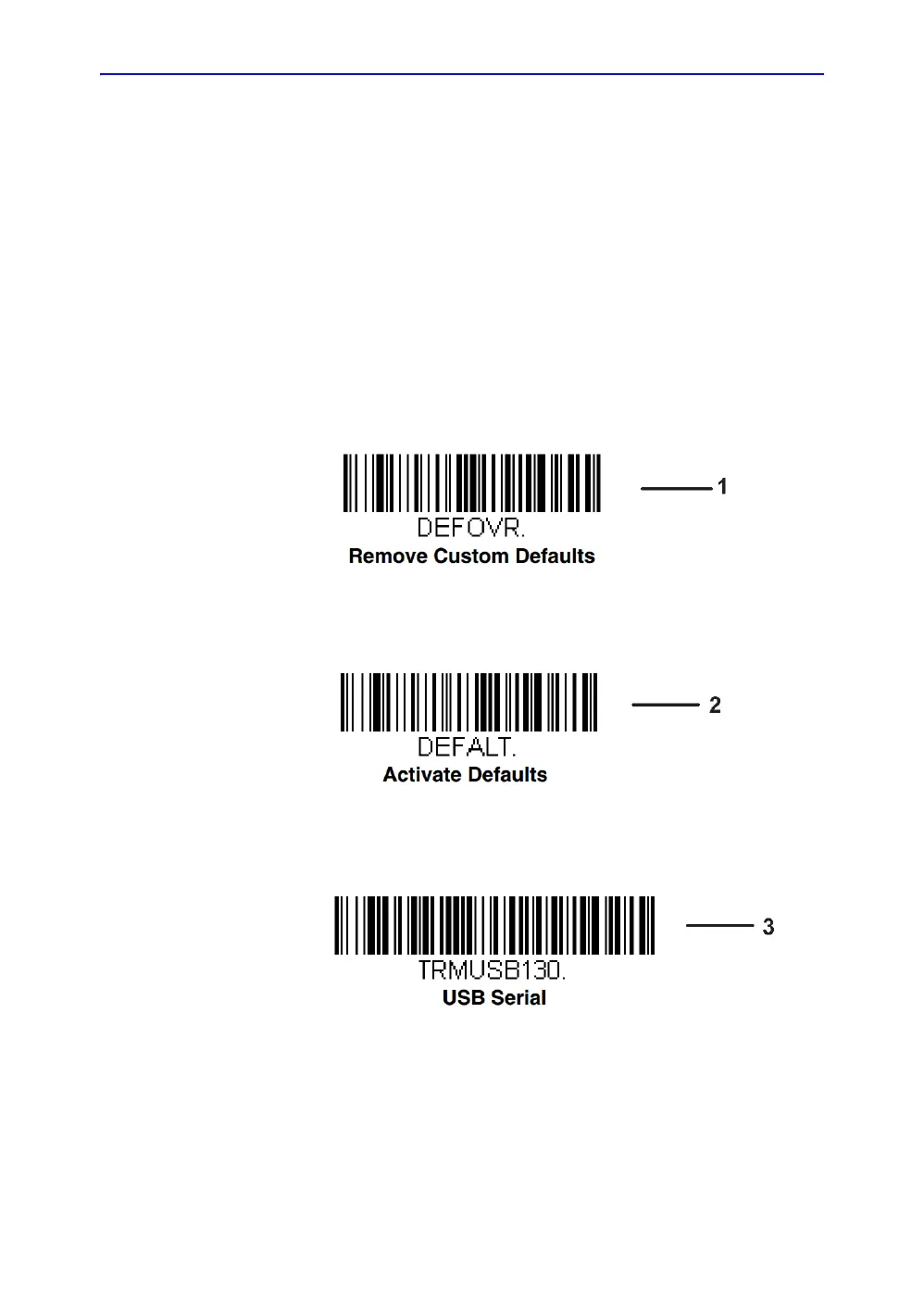

Figure 3-28. Barcode
NOTE: Only the printed barcodes on the paper can be scanned. If
you do not have the printed version, be sure to print them to
the paper first and scan them on the paper.
