General Procedures and Functional Checks
4-28 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Color Flow Mode Checks
Introduction
Color Flow screens are B Mode or M Mode screens with colors
representing blood or tissue movement.
Color Flow Mode Screen Example

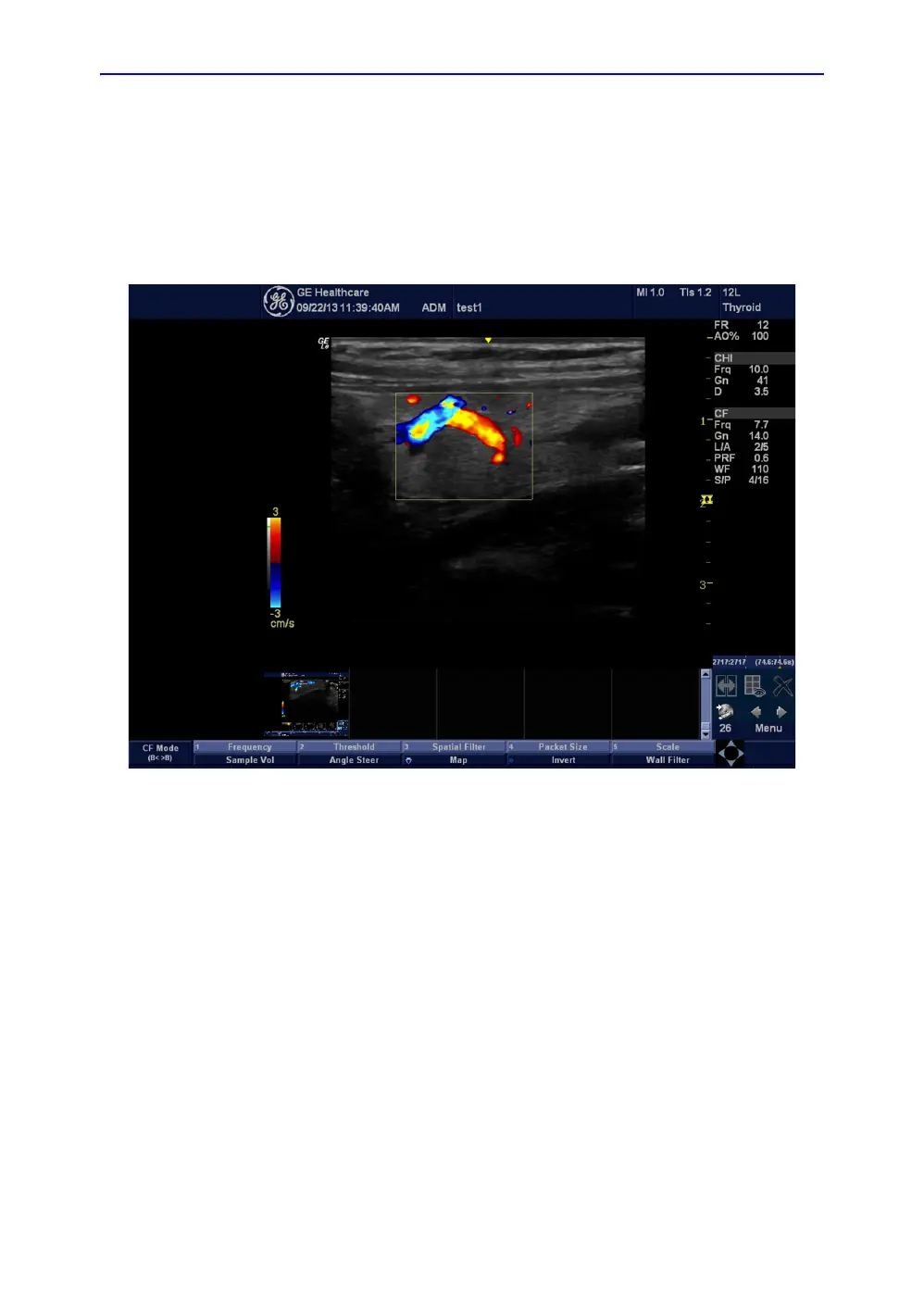

Figure 4-14. CFM Mode Screen Image Example
Preparations
1. Connect one of the probes.
For available probes, See ‘Available probes’ on page 3-30
for more information..
See ‘Connect a probe’ on page 3-17 for more information.
for info about connecting the probes.
2. Turn ON the scanner (if it isn’t turned on already).
