Functional checks
LOGIQ e – Basic Service Manual 4-29
5461614-100 English Rev. 6
Color Flow Mode Checks (continued)
Adjust the Color Mode controls

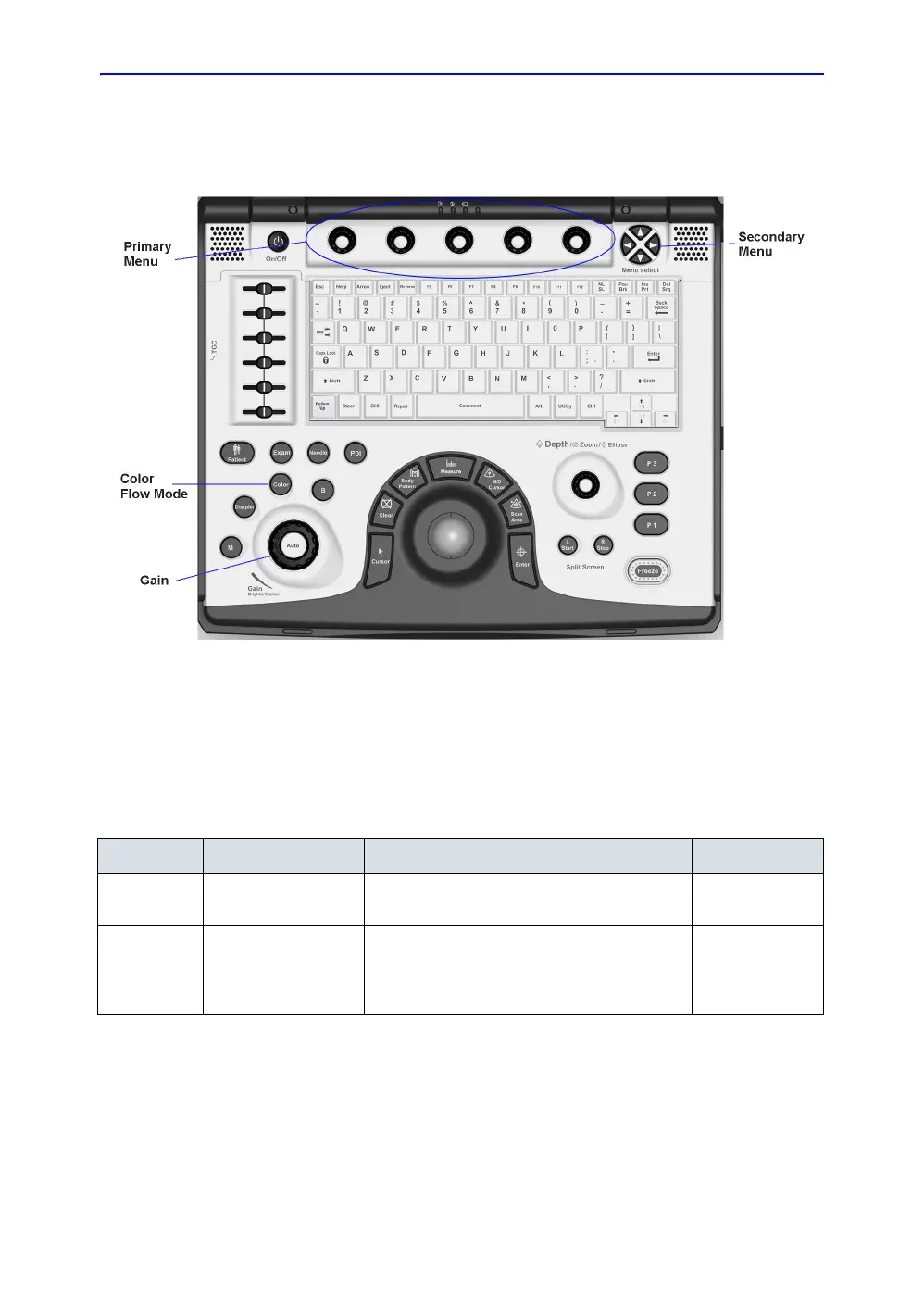

Figure 4-15. Controls available in Color Flow Mode
1. Press Color on the Operator Panel to access Color mode.
2. These Image Controls are used to optimize the Color
picture. Verify that all the listed controls are working as
intended:
Table 4-5: Color Flow Mode Operator Panel Controls
Step Task Expected Result(s) Comments
1 Press Color Mode
key
Color Flow Mode Starts
2 Adjust Gain Amplifies the overall strength of the echoes
processed in the Color Flow window. Turn the
Gain dial (CFM Mode key) to the left/right to
increase/decrease Gain.
