Network Configuration
LOGIQ e – Basic Servic
e Manual
7-19
5461614-100
English Rev. 6
Wireless LAN Network
1. Connect
wireless
LA
N card with s
ystem.
2.
Enter Utility -> Connectivity
.
3.
In the Section of
Wireless Network
, select
Confi
guratio
n
.

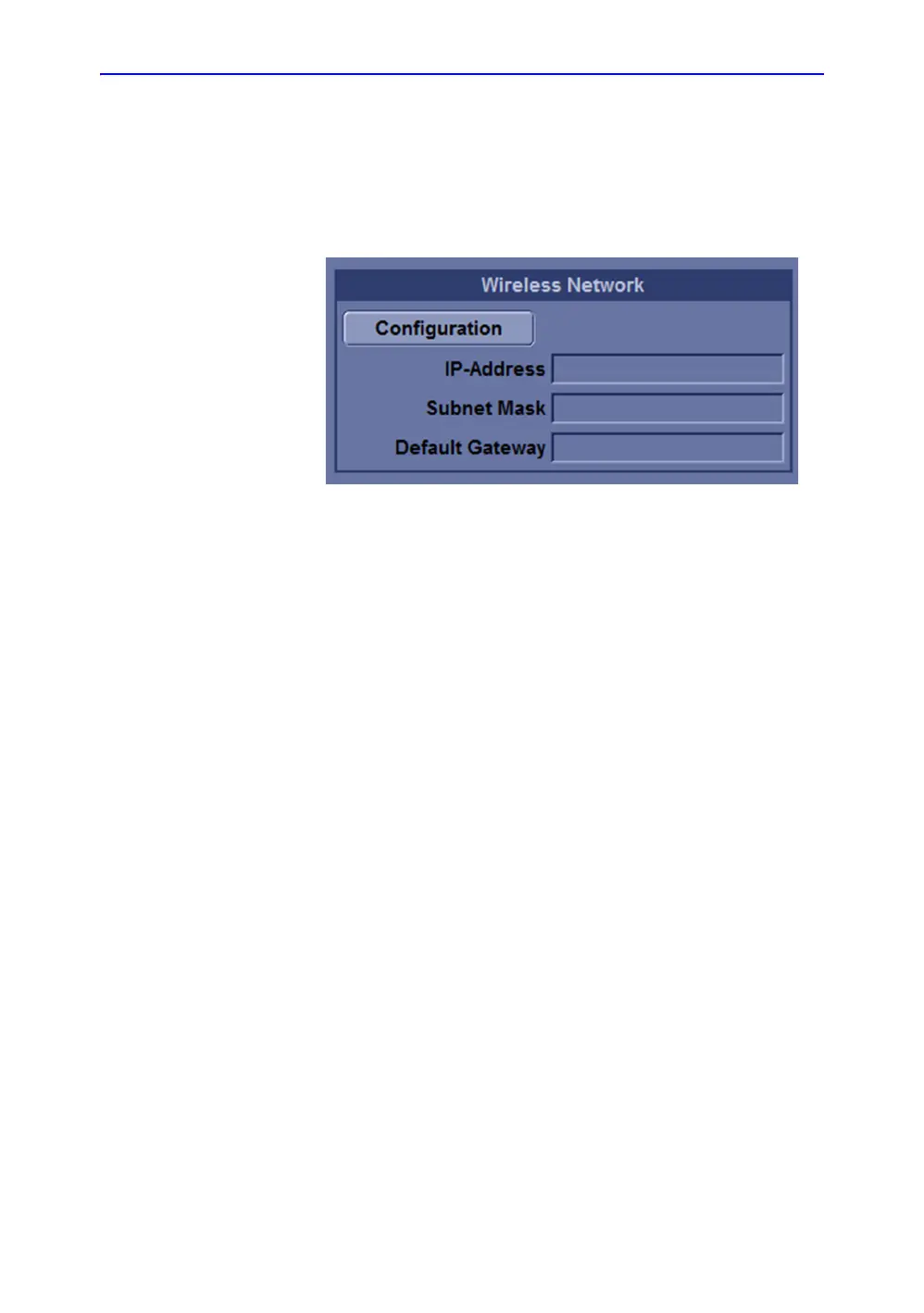

Figure
7-14.
Wireless Network config
uration
228
230
