Set Up Docking Cart
LOGIQ e – Basic Service Manual 11-15
5461614-100 English Rev. 6
Connect USB Printer to Docking Cart (continued)
Mounting Procedure
Table 11-7: Mounting Procedure of B/W USB Printer

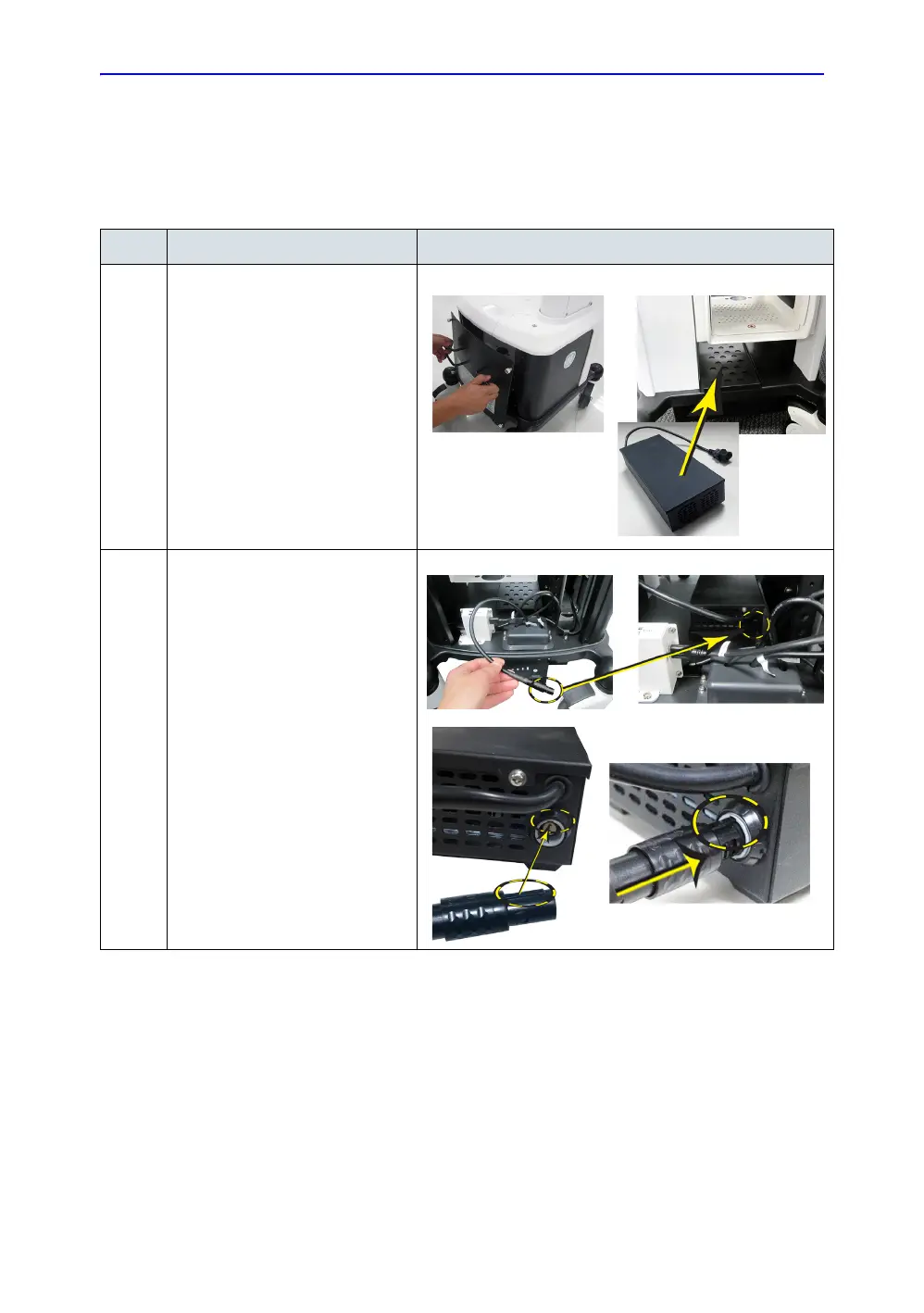

No. Step Corresponding Graphic
1. Remove the rear panel from
Docking Cart.
Place the DC/AC adapter in the
cabinet of Docking Cart. Let the
cable of DC/AC adapter come out
from the back of Docking Cart.
Note: The printer DC/AC adapter
is optional. It is ordered separately.
2. Connect the power cable from the
Docking Cart to the DC/AC
adapter.
Note: When connecting the power
cable to DC/AC adapter, align the
embossing on the power cable
connector with the groove on the
DC/AC adapter connector port
edge. Then push the cable
connector into the port.
