Docking Cart Setup
11-18 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Removal Procedure
Remove the new parts in the reverse order of installation.

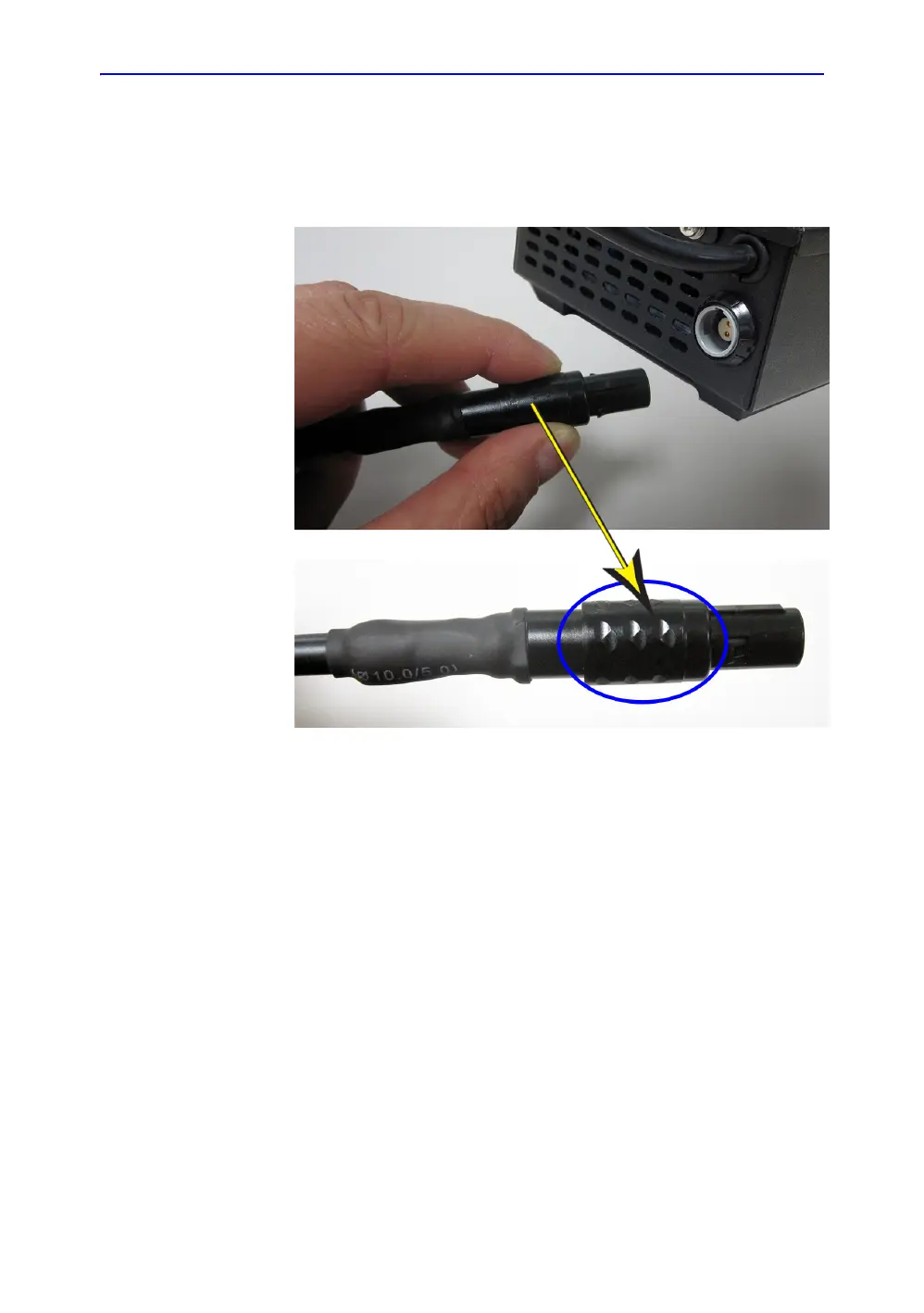

NOTE: When disconnecting the power cable from the DC/AC adapter,
grab the handle of the cable with fingers and pull the cable.
Figure 11-5. Disconnect Power Cable
To Next Page
