Docking Cart Setup
11-20 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Connect DVD-RW to Docking Cart (continued)
Mounting Procedure
NOTE: The mounting procedure in this section is only an example for
illustrational purpose. For mounting procedure of different
models of DVD-RW, please refer to the User Instruction which is
supplied with the DVD-RW.

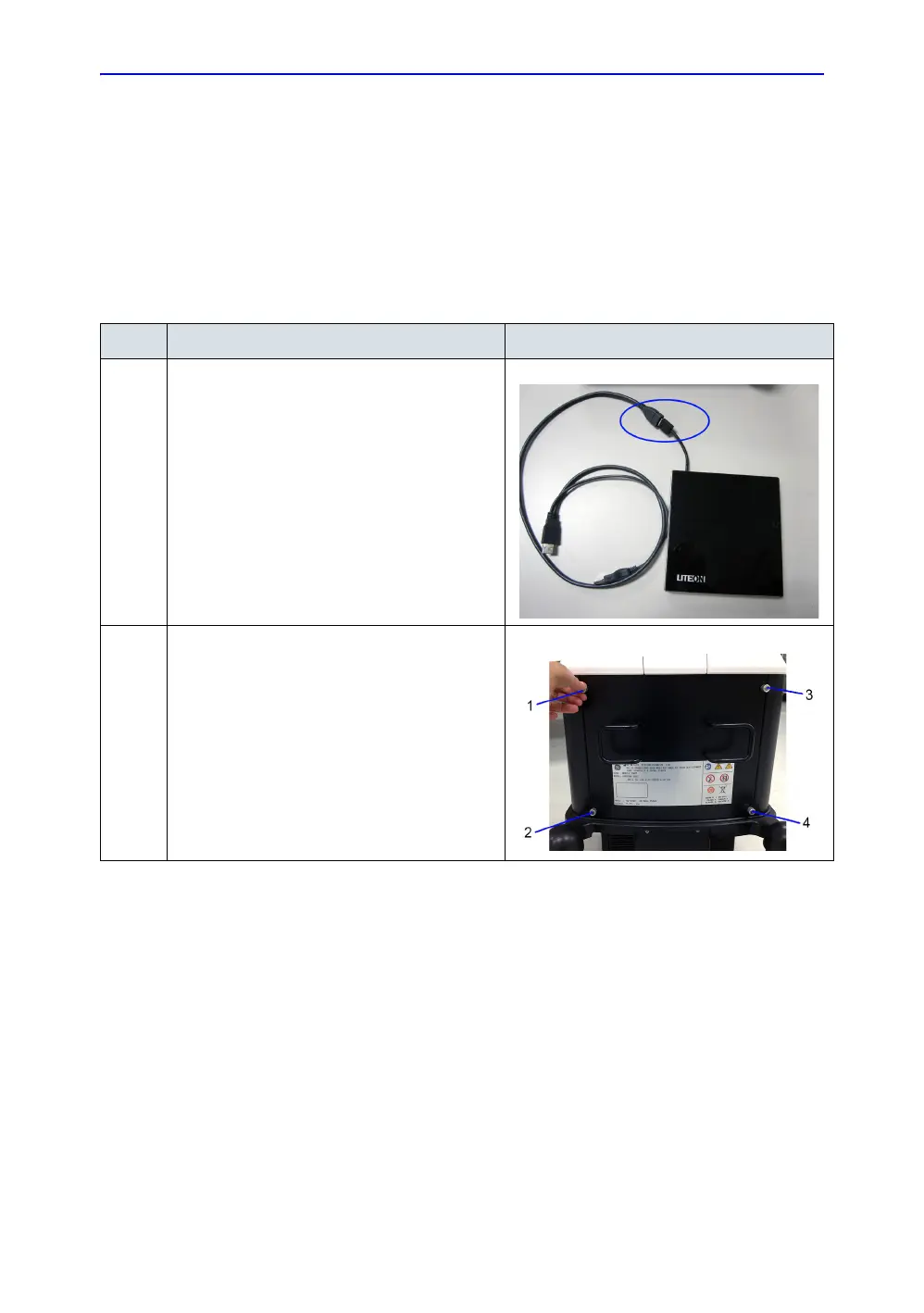

Table 11-9: Mounting Procedure of DVD-RW
No. Step Corresponding Graphic
1. Connect the USB Y Cable to the DVD-RW.
2. Unscrew the 4 screws to remove the real panel.
To Next Page
