Set Up Docking Cart
LOGIQ e – Basic Service Manual 11-23
5461614-100 English Rev. 6
Connect ECG to Docking Cart
Tools
• No special tools needed
Needed Manpower
• 1 person, 3 minutes+travel
Preparations
• Shut down the system and switch off the main breaker.
Mounting Procedure

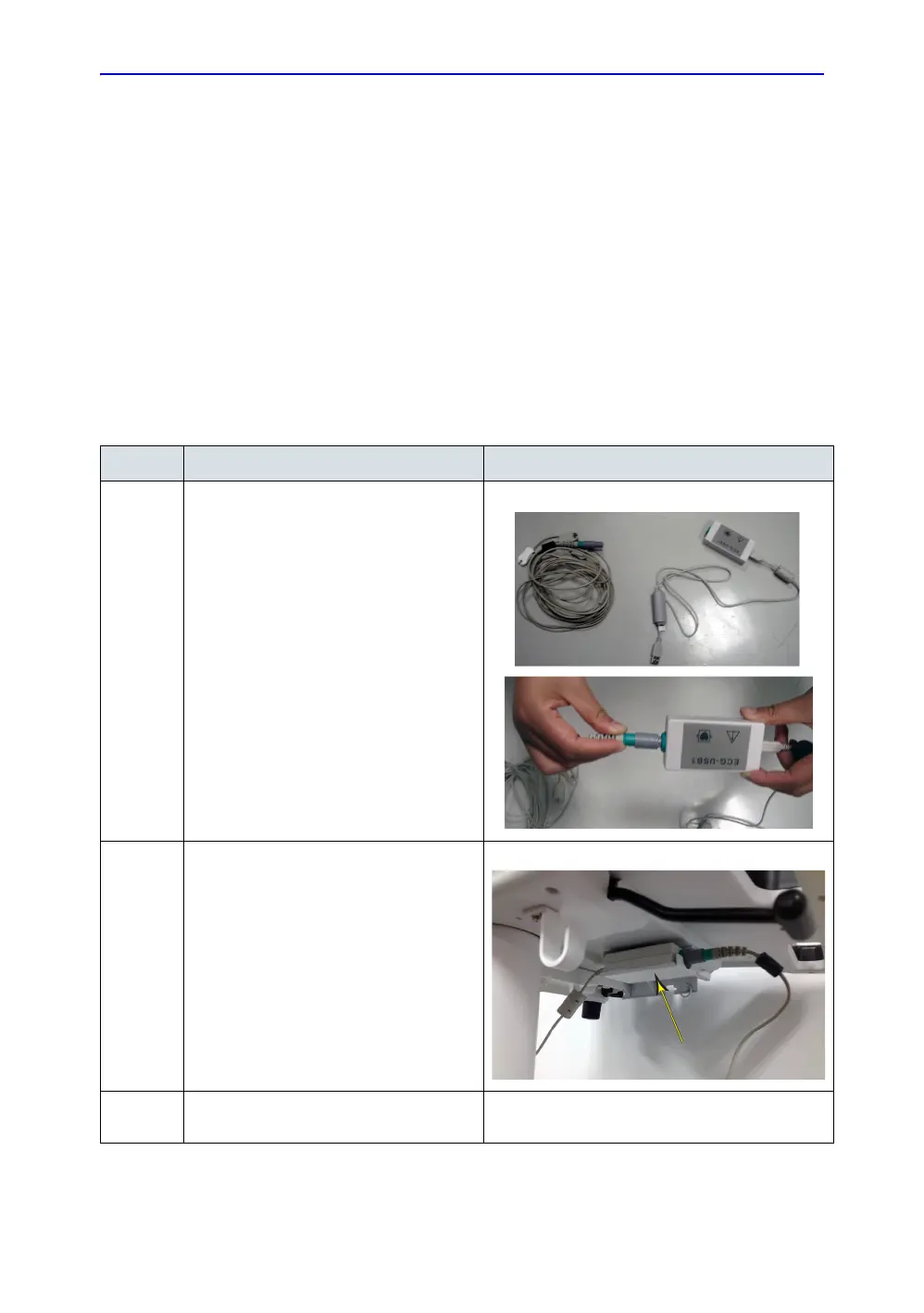

Table 11-11: Mounting Procedure of ECG
No. Step Corresponding Graphic
1. Install ECG..
2. Put ECG in the ECG bracket.
3. Connect the ECG to the USB port on the
Docking Cart.
