Docking Cart Setup
11-22 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Removal Procedure
Remove the new parts in the reverse order of installation.

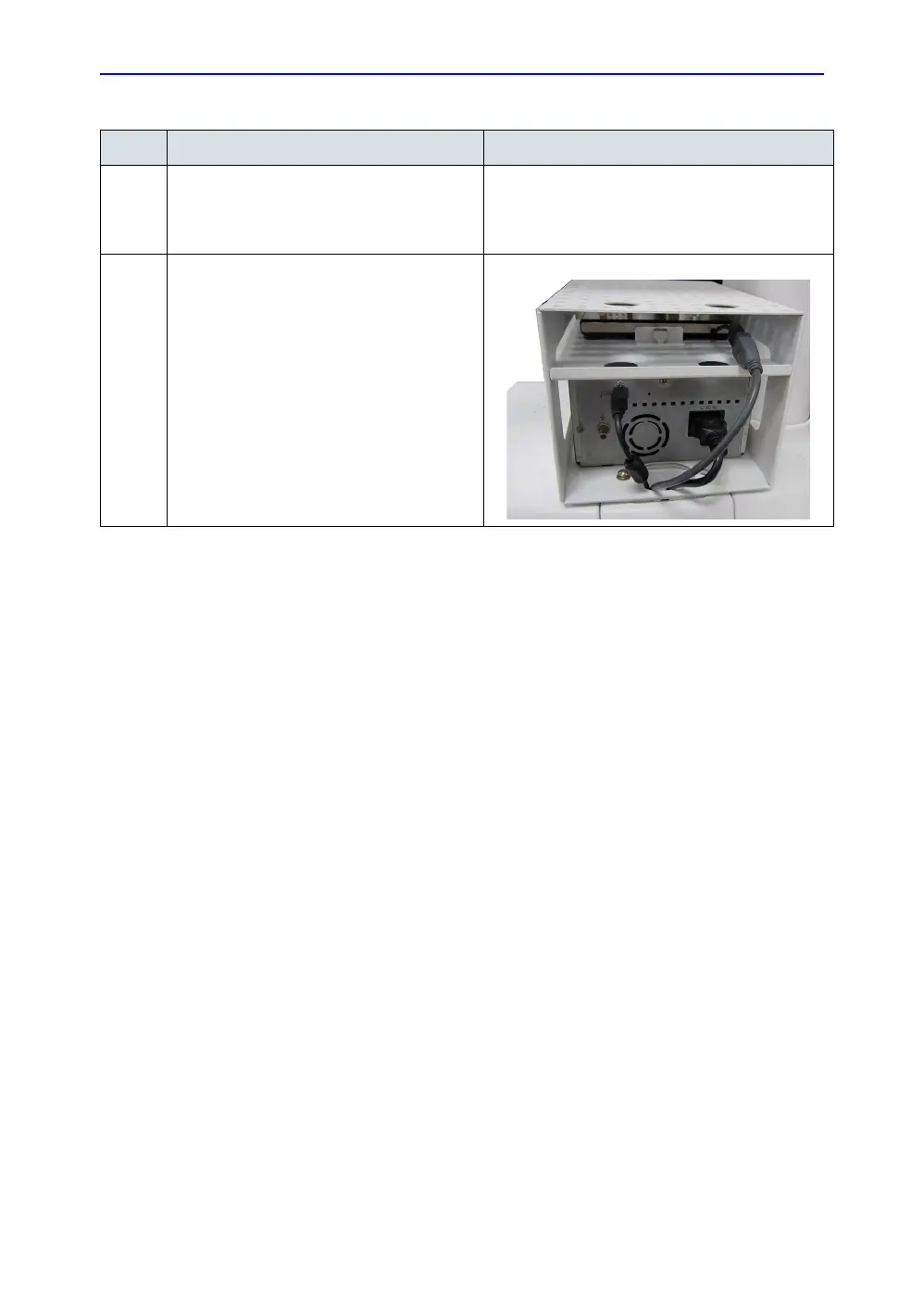

Table 11-10: Mounting Procedure of DVD-RW to Top support DVD/print shelf
No. Step Corresponding Graphic
1. Be sure Top DVD/Print Shelf has been
installed.
See ‘Top Support DVD/Print Shelf Assy’ on
page 11-35 for more information.
2. Place the DVD-RW on the TOP DVD Shelf
and connect the USB cable to the USB HUB.
Refer to Table 11-9 on page 11-20 for the
information.
To Next Page
