GE LOGIQ e Basic Service Manual

Docking Cart Functions (Theory)
LOGIQ e – Basic Service Manual 11-51
5461614-100 English Rev. 6
Connect with VGA cable (continued)
5. Select Next. The screen displays on the external
monitor.Then select Close to close the dialog box.

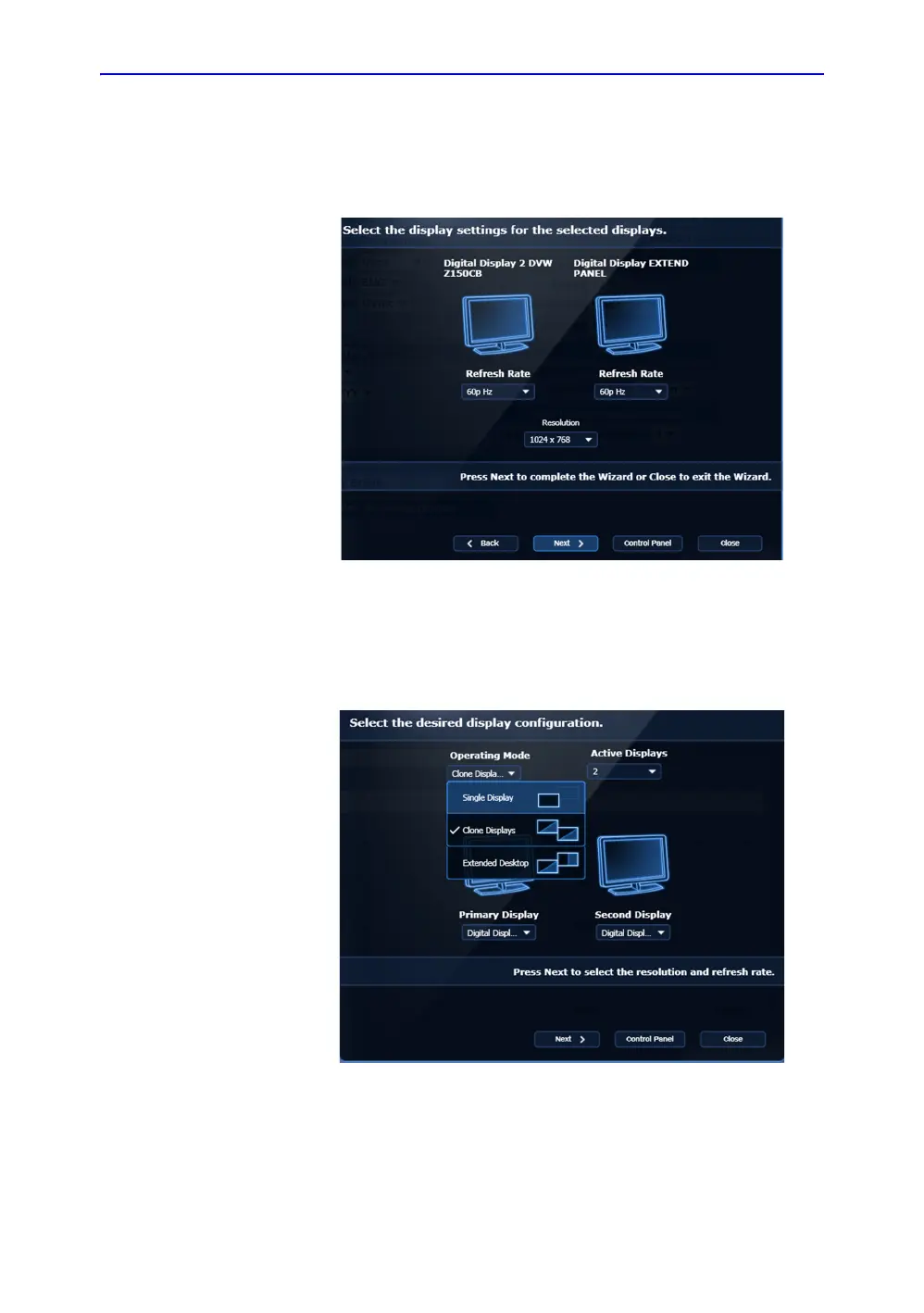

Figure 11-30. External monitor display
6. To exit external monitor, press Ctrl+Alt+V. Select Single
Display in the menu list of Operating Mode, then select
Next and Close.
Figure 11-31. Exit External monitor display

GE LOGIQ e Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Type	Ultrasound System
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	abdominal, cardiac, vascular, OB/GYN, musculoskeletal, small parts
Probes	linear, phased array
Portability	Portable
Connectivity	DICOM, USB, Ethernet
