Docking Cart Servicing
12-8 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Rear Panel Assy (Part No. 5422978)
Purpose: This is a description on how to remove and replace the
Rear Panel Assy.
Tools
• No special tools
Needed Manpower
• 1 person, 1 minutes + travel
Preparation
• Shut down the system and switch off the main breaker.
Removal Procedure
Mounting Procedure
1. Install the new parts in the reverse order of removal.

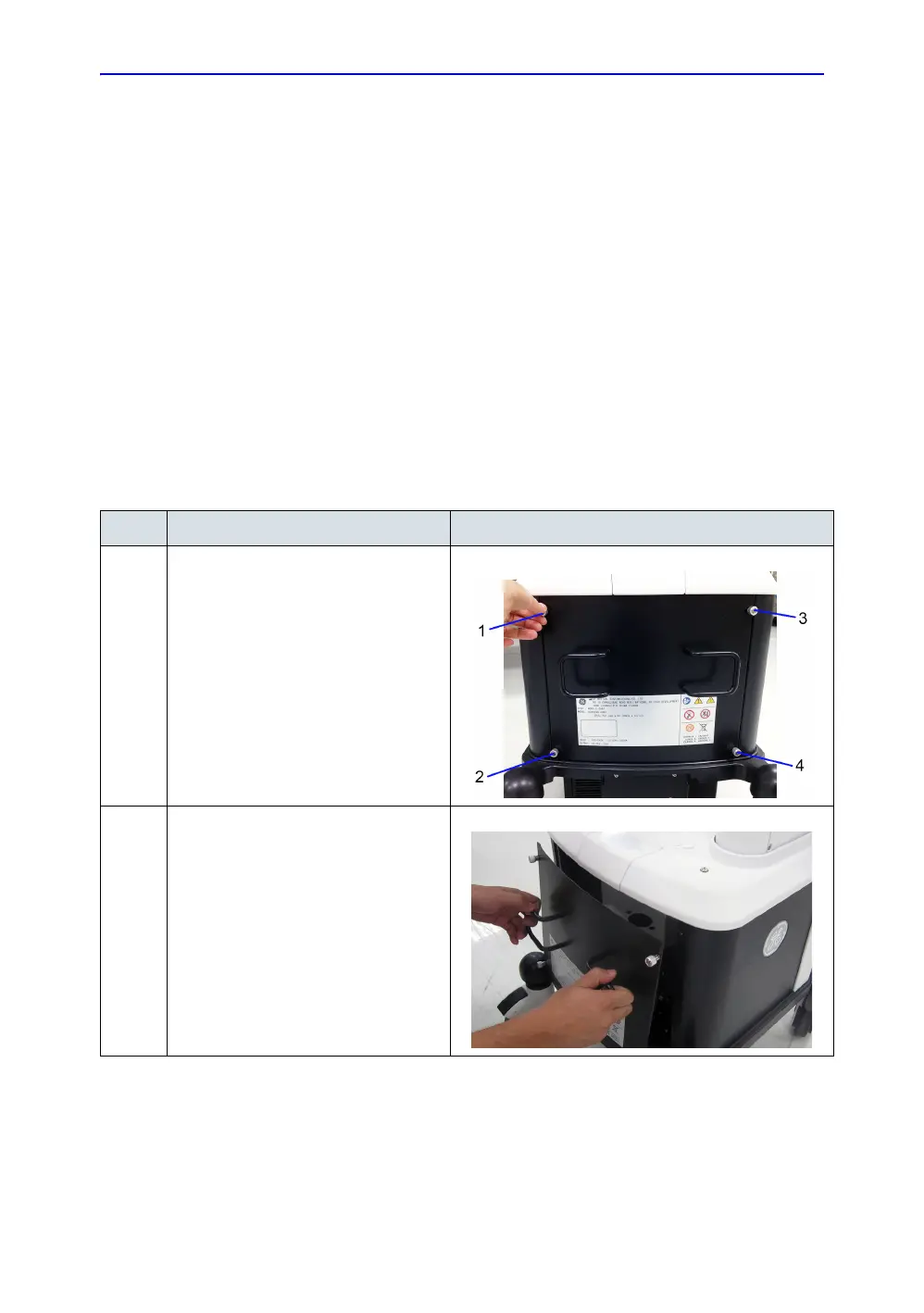

Table 12-3: Removal Procedure for Rear Panel Assy
No. Steps Corresponding Graphic
1. Loose the 4 screws.
2. Remove the rear panel Assy.
To Next Page
