Replacement Procedure
LOGIQ e – Basic Service Manual 12-11
5461614-100 English Rev. 6
Mounting Procedure
1. Install the new parts in the reverse order of removal.
See ‘Install Extended Life Battery to Docking Cart’ on
page 11-25 for more information.
After the battery is installed, try pulling the battery to check if the
battery is fixed in the power box.
• If the battery can not be pulled out, it means the battery is
well installed.
• If the battery can be pulled out, it means the battery is not
well installed. Reinstall the battery until it can not be pulled
out from power box.

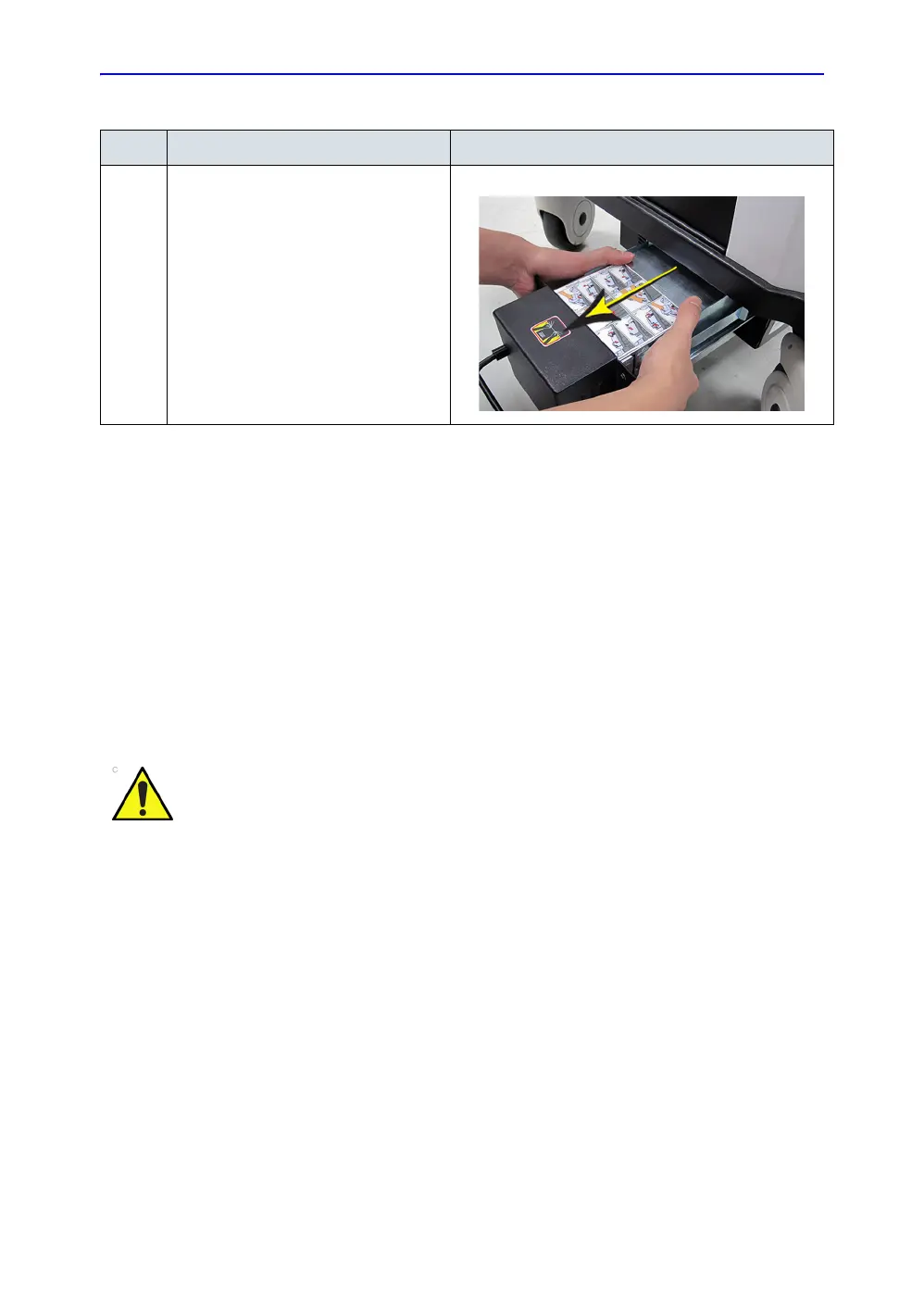

4. Take out the battery with both hands.
Table 12-4: Removal Procedure Extended Life Battery
No. Steps Corresponding Graphic
CAUTION
Use caution to avoid injuring hands when installing the
Extended Life Battery.
