2-4 MAC 1200/1200 ST Revision C
2012250-021
Controls and Indicators: General Information

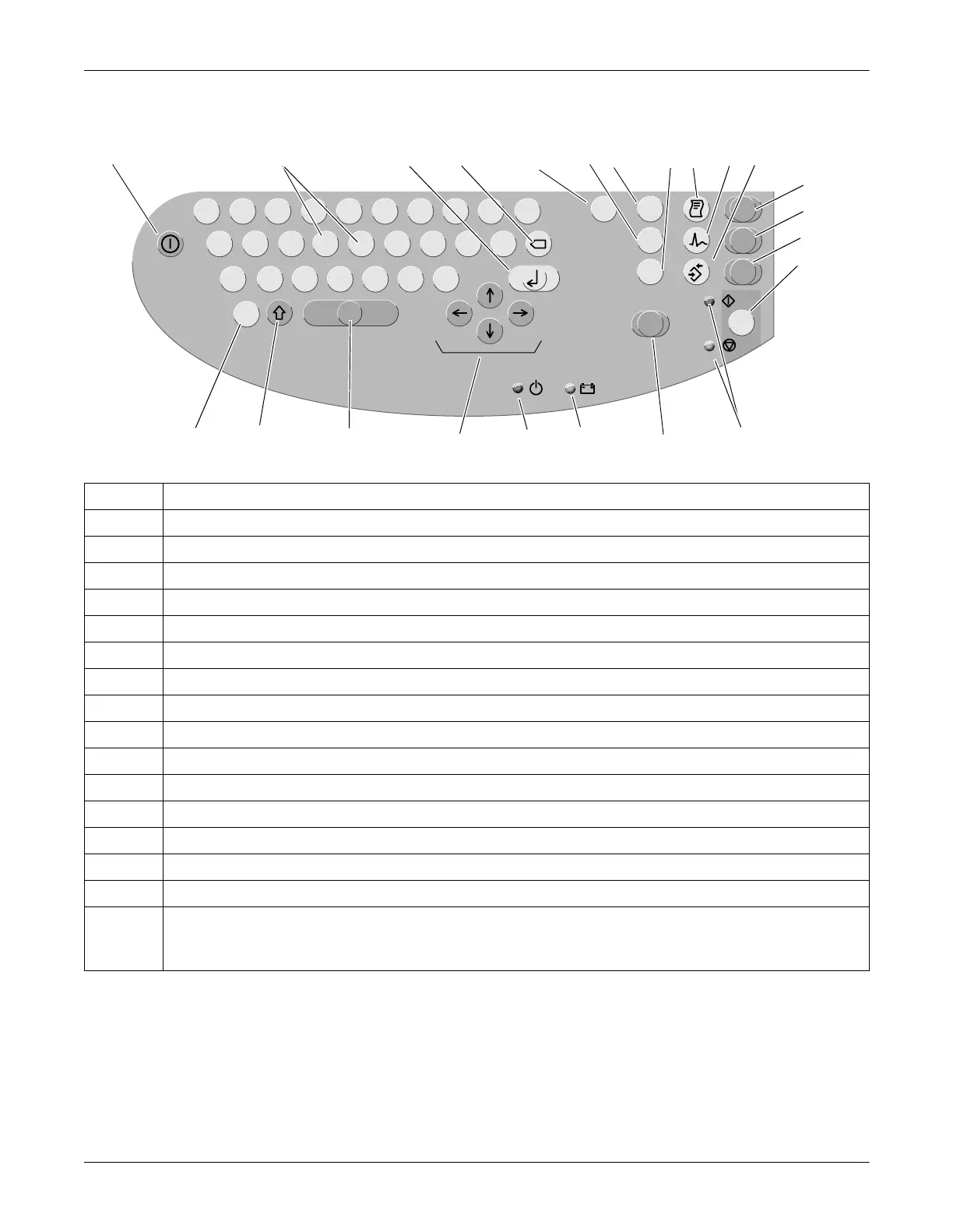

MAC 1200 Keyboard
Z
;
X
:
C
/
V
,
B
.
N
<
M
>
L
)
X
K
(
J
%
H
*
G
+
F
-
D
=
S
?
A
!
Alt
Q
1
W
2
E
3
R
4
T
5
Y
6
U
7
I
8
O
9
P
0
Arrhy
Pat
Config
mm/mV
mm/s
Filter
Man
Auto
098A
1234567891011
23 22 21 20 19 18 17 16
12
13
14
15
Description
1 Power switch (ON/OFF)
2 Keys to select a higher or lower HR alarm limit
3 Confirms entered data
4 Correction key (entry of data)
5 Displays the configuration menu
6 Enables/disables the muscle filter (elimination of muscle artifact)
7 Selects the writer speed 25, 50 or 5 mm/s in Manual Mode and the report formats in Automatic Mode
8 Selects the gain (5, 10, 20, 40 mm/mV)
9 Press to print the report or additional copies of the ECG, or to send/receive ECGs
10 Selects the ECG leads displayed and recorded in Manual Mode and displayed Automatic Mode
11 Sends ECG to memory/retrieves ECG from memory
12 Selects the Automatic Mode
13 Selects the Manual Mode
14 Selects the Arrhythmia Mode
15 Starts and stops the recorder, clears the setup menu and terminates patient data entry
16 Indicators:
Green: recording in selected mode started;
Yellow: recording in selected mode stopped
