GE MAC 1200 ST Operator's Manual

Revision C MAC 1200/1200 ST 4-7
2012250-021
Preparing for ECG Recording: Electrode Application
Electrode Placement for Nehb Leads

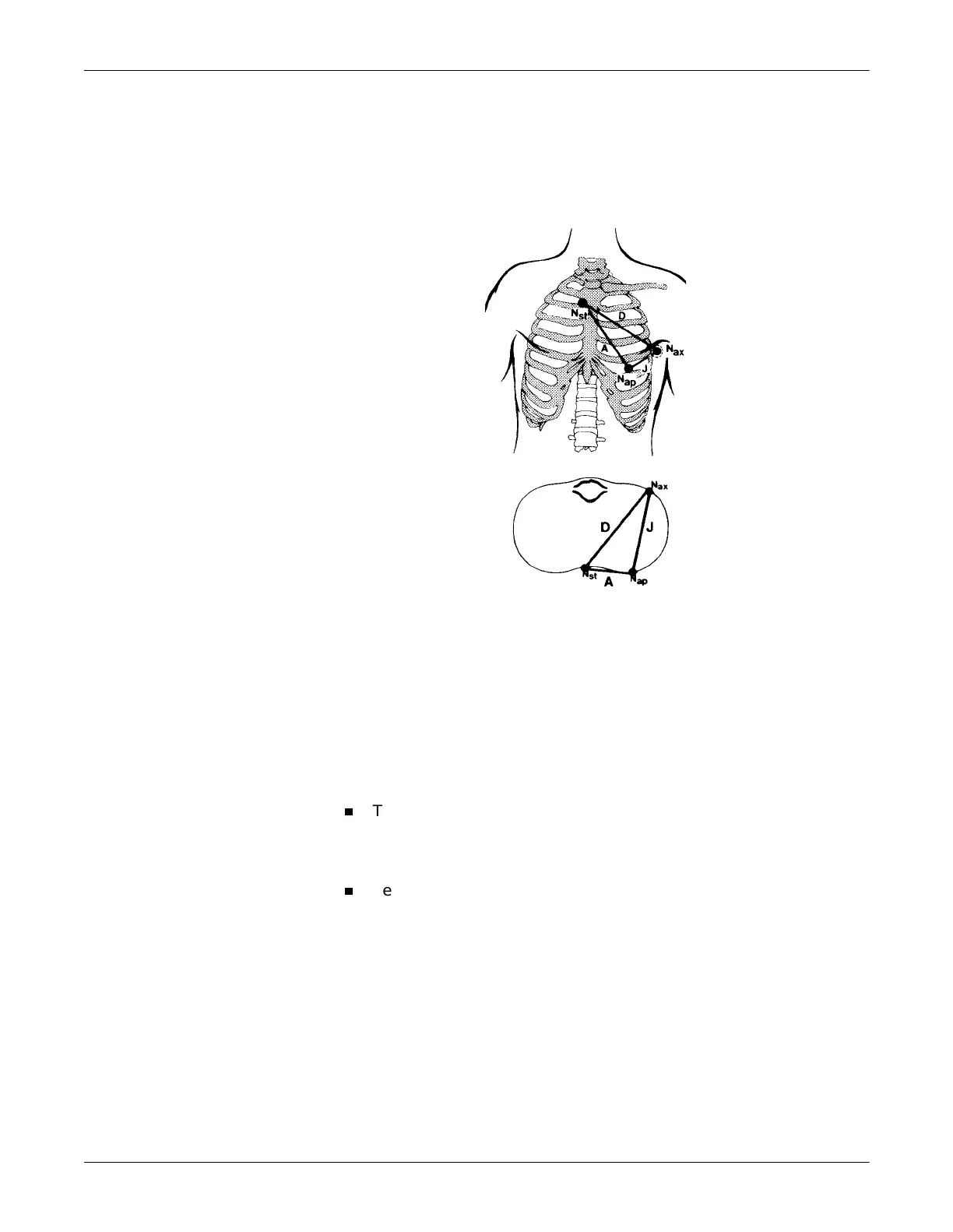

The figure below shows the electrode sites for acquisition of the Nehb
leads. Connect the 12-lead patient cable as shown in the figure on the
next page (Nap is the same as C4).
Electrode Placement for Nehb Leads
Nst 4th intercostal space at the right border of the sternum
Nax At the posterior auxiliary line in the 5th intercostal space
(identical with C7)
Nap At the mid-clavicular line (identical with C4) in the 5th intercostal
space
As an alternative it is also possible to record the Nehb leads with the 10-
lead patient cable (only in Manual Mode).
 To do so, connect as follows.
R to Nst
L to Nax (C7)
F to Nap (C4)
 Select SEQ. No. 4 (Chapter 10, “Manual Mode” section) and change
the lead labels as follows.
I to D
II to A
III to J
011
A
