Chapter 2. CPU Features & Specifications

106 PACSystems* RX7i, RX3i and RSTi-EP CPU Reference Manual GFK-2222AD

Ethernet Topology

A typical application will take advantage of the two independent LANs. The dedicated LAN1 port will be

used for communications with plant-level or supervisory layers. The switched LAN2 will be used to

communicate with devices over PROFINET within the manufacturing cell or process.

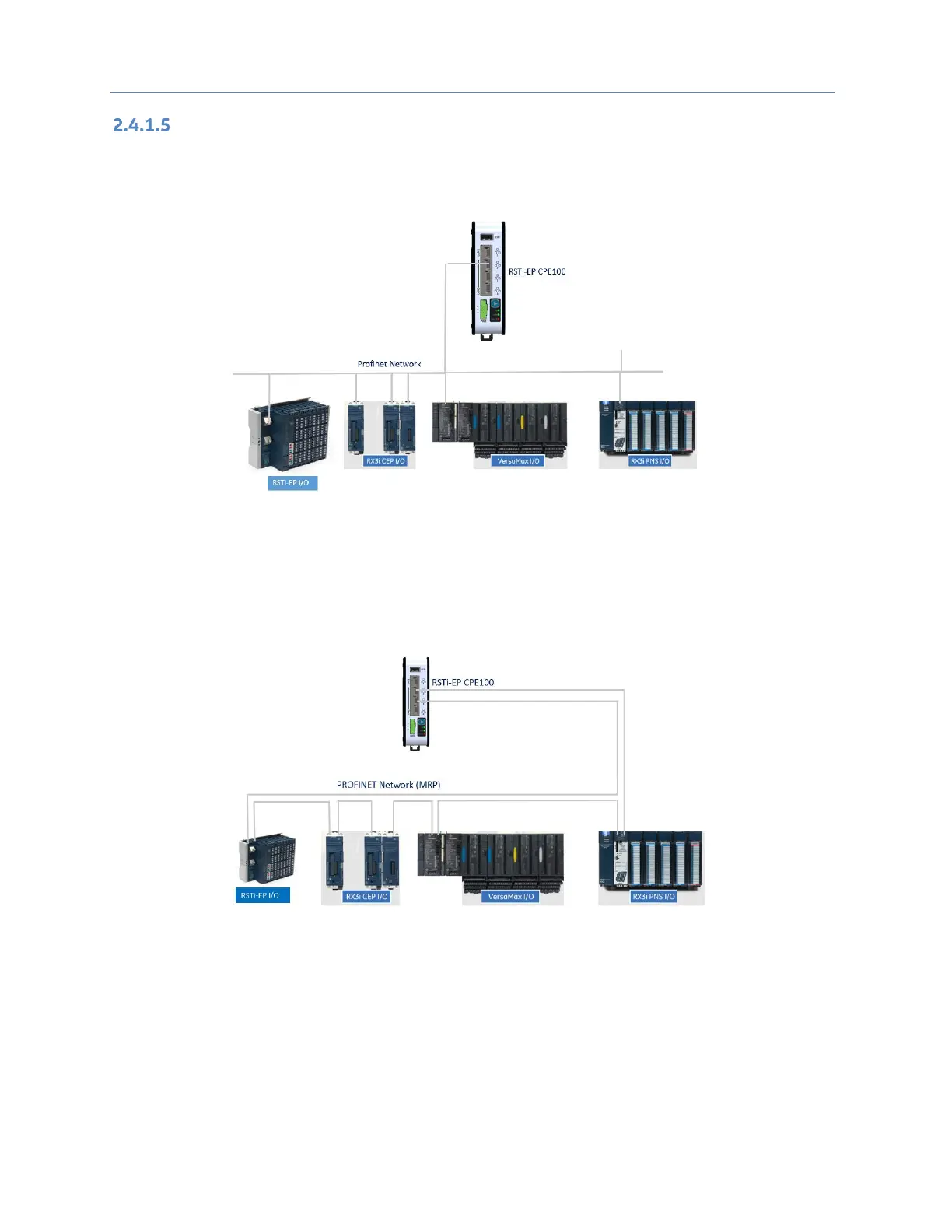

Figure 34: Typical Multi-Tier LAN Application (Star/Bus Topology)

Whenever CPE100/CPE115 is configured for MRP only Ethernet Port2 & Port3 of LAN2 can be used to

form a ring. Ethernet Port4 of LAN2 can still be used either to connect programmer, simplex PROFINET

device or any other supported Ethernet protocols.

Figure 35: Typical Multi-Tier LAN Application (Ring Topology)
