Chapter 2. CPU Features & Specifications
GFK-2222AD April 2018 101
2.4.1 CPE100/CPE115
Introduction
The EPSCPE100 and EPSCPE115 are the first standalone CPUs in the RSTi-EP family. Each is supported
by two mounting options:
1) As shipped, it mounts onto a DIN rail using a DIN-rail adaptor plate.
2) Alternately, it mounts directly in a cabinet, using a panel-mount adaptor plate ICMFAACC001-
AA.
The mounting instructions and power requirements are documented in the Quick Start Guide, GFK-3012,
and are not replicated here.

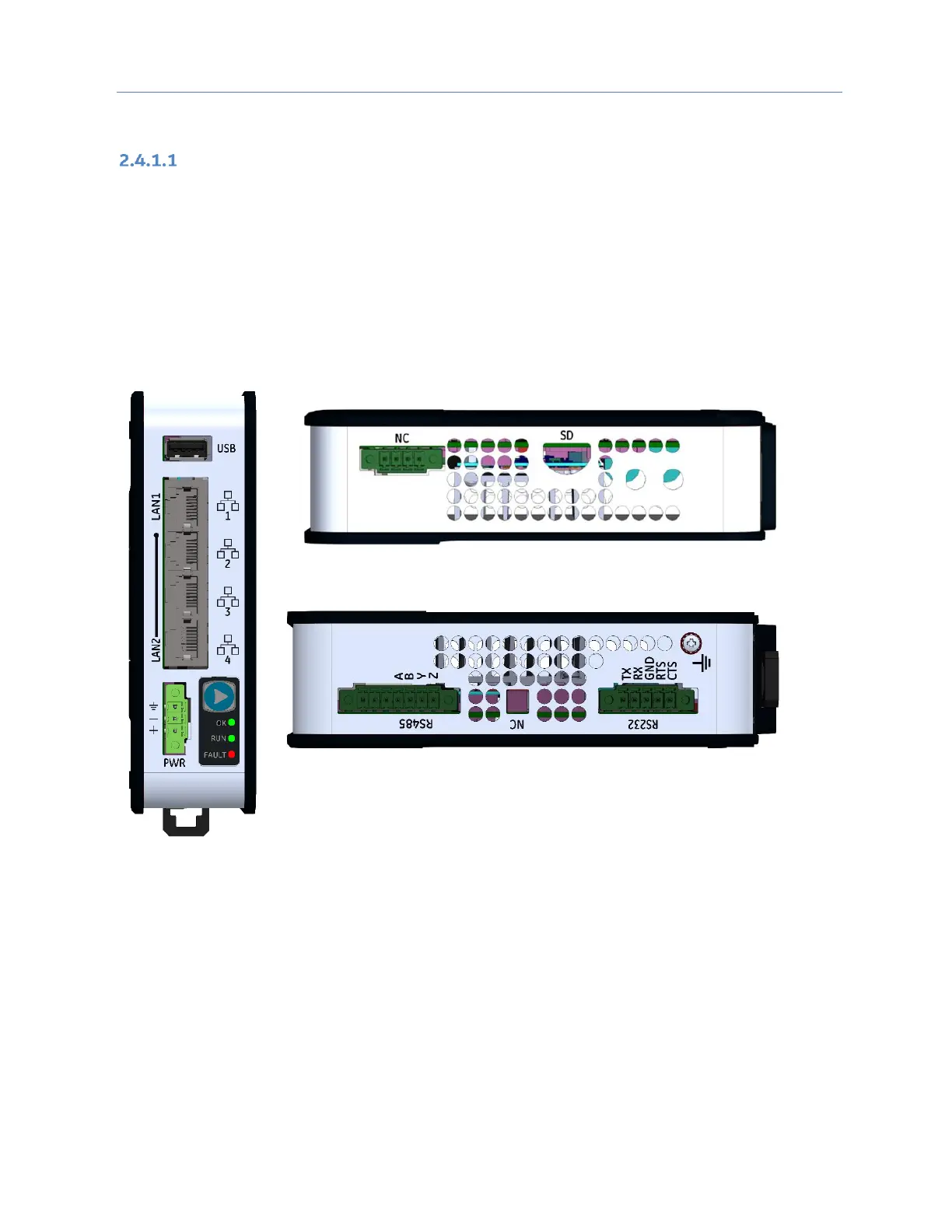

The physical features of the CPE100/CPE115 are shown in the Figure 31
Top View
Bottom View
Front View
Figure 31: CPE100/CPE115 Front, Top and Bottom Views and Features
The PACSystems* RSTi-EP EPSCPE100/CPE115 are enhanced performance standalone programmable
controllers equipped with 1MB(CPE100)/1.5MB(CPE115) of user memory and four Ethernet ports to run
real time deterministic control applications. LAN1 is dedicated to high speed Ethernet and LAN2 is
comprised of 3 switched ports configurable as either a second embedded Ethernet controller or an
embedded PROFINET controller, which provides the PROFINET functionality and supports only simplex
mode of operation. It is a standalone PLC that supports distributed I/O.
