Chapter 2. CPU Features & Specifications

GFK-2222AD April 2018 79

2.2.4 CPU315 and CPU320/CRU320

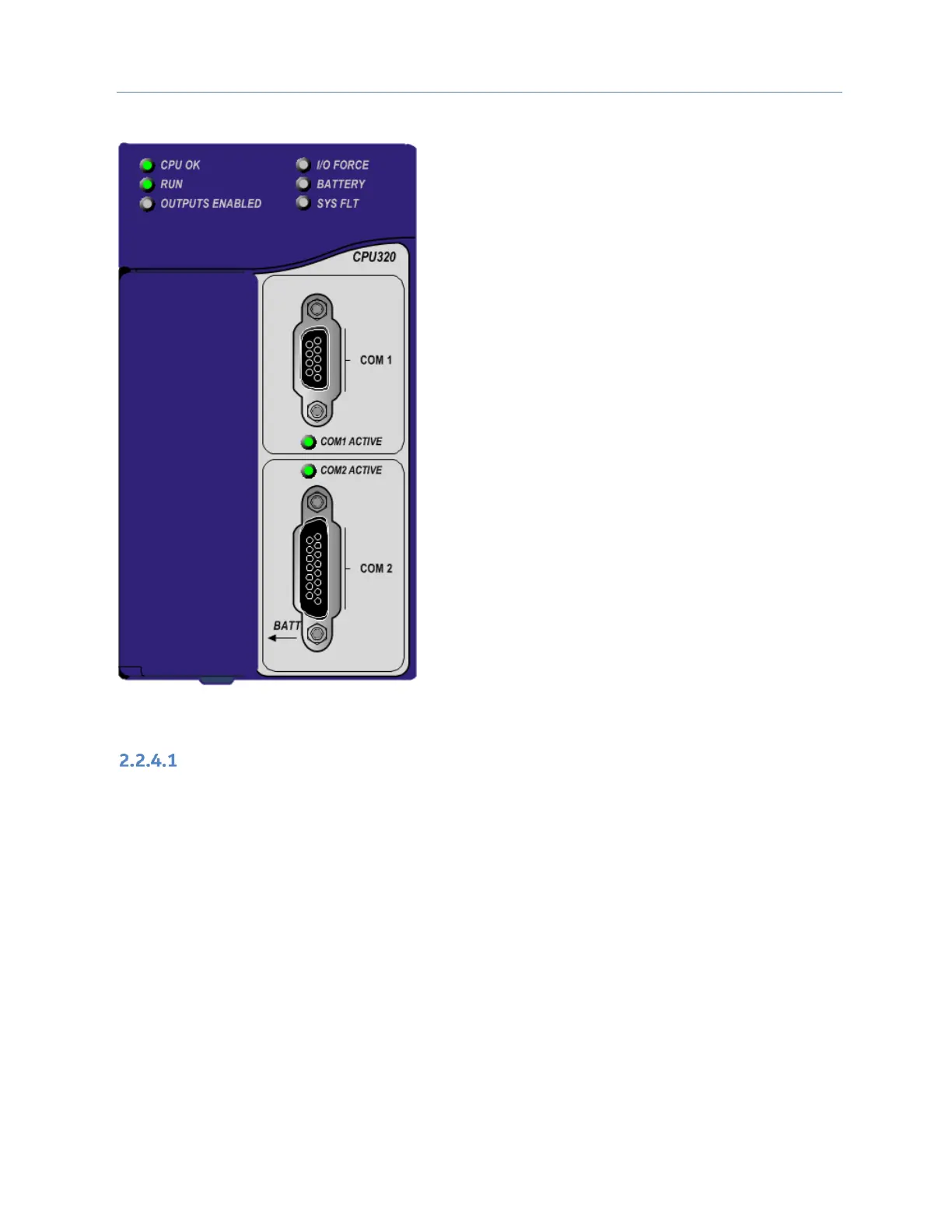

Figure 27: IC695CPU320 Front View

Serial Ports CPU315, CPU320 & CRU320

Each CPU has two independent, on-board serial ports, accessed by connectors on the front of the

module. COM1 and COM2 provide serial interfaces to external devices. Either port can be used for

firmware upgrades. For serial port pin assignments, electrical isolation, and details on serial

communications, refer to Chapter 5.
