Chapter 2. CPU Features & Specifications
GFK-2222AD April 2018 103
Membrane Run/Stop Pushbutton

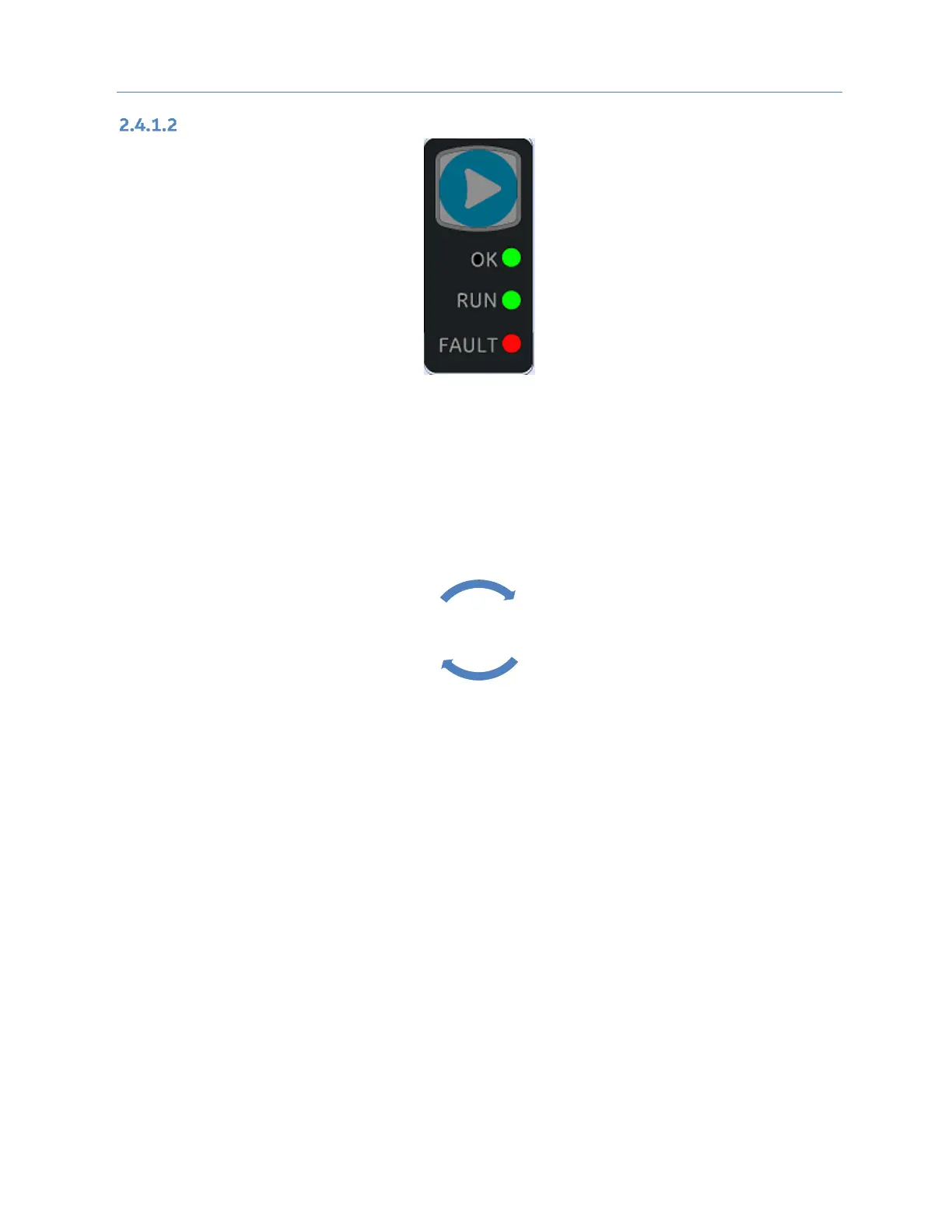

Figure 32: CPE100/CPE115 Membrane Pushbutton and Module Status LEDs
If the blue membrane pushbutton (Figure 32) is pressed while the CPE100/CPE115 is powering up, it
restores the default IP address (192.168.0.100). It also erases the stored hardware configuration, logic
and contents of the backup RAM.
During normal operation, briefly pressing the membrane pushbutton changes the state of the CPU from
its current Run/Stop state to its alternate state, as shown in the following state diagram:
Figure 33: State Diagram for CPE100/CPE115 Run/Stop Operation
The Run/Stop switch is enabled by default; it can be disabled in PME Hardware Configuration (HWC)
settings.
STOP/IO
Disabled
RUN/IO
Enabled
