Appendix A. Performance Data
298 PACSystems* RX7i, RX3i and RSTi-EP CPU Reference Manual GFK-2222AD
I/O Interrupt Block Performance and Sweep Impact Times
Sweep Impact Item
CPE302
CPE305
CPE310
(µs)
CPU310
(µs)
CPU315/
CPU320
(µs)
CPE010
(µs)
CPE020
(µs)
CPE030
(µs)
CPE040
(µs)
I/O interrupt sweep impact
-
109
127.8
-
309.7
335
125.6
24.0
Minimum response time
Typical response time
Maximum response time
—
151.7
175.0
302.7
326.1
327.3
346.2
392.4
396.1
434.9
334
336
359
330.6
331.5
375.1
315.2
315.5
325.7
Note that the min, typical, and max response times include a 300 µs Input card filter time.
Dropped Interrupts
When multiple interrupts are triggered during the interrupt latency period, it is possible that interrupt
blocks will only be executed one time even though the interrupt trigger has occurred more than once.
The likelihood of this occurring will increase if the system interrupt latency has increased due to the
specific configuration and use of the system.
This will not cause the CPU to miss a given interrupt; just consolidate the number of times an interrupt
block is executed even though the interrupt stimulus had occurred more than one time.
109
Performance data not available for this release.
Interrupt Trigger
Interrupt
Logic
Suspended
Interrupt Logic Block
Higher-priority event

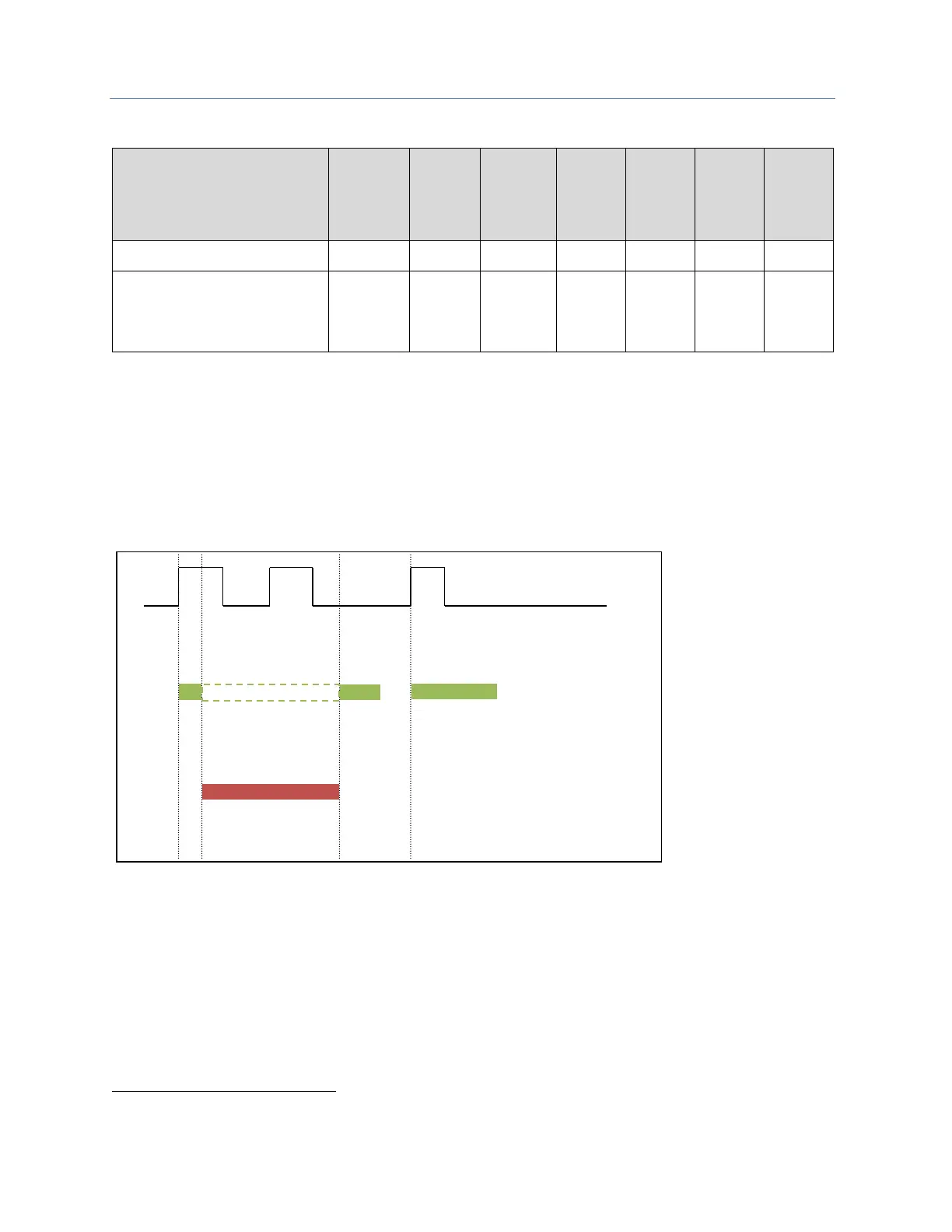

Figure 65: Interrupt Execution Considerations
