Chapter 2. CPU Features & Specifications

82 PACSystems* RX7i, RX3i and RSTi-EP CPU Reference Manual GFK-2222AD

2.2.5 CPU310

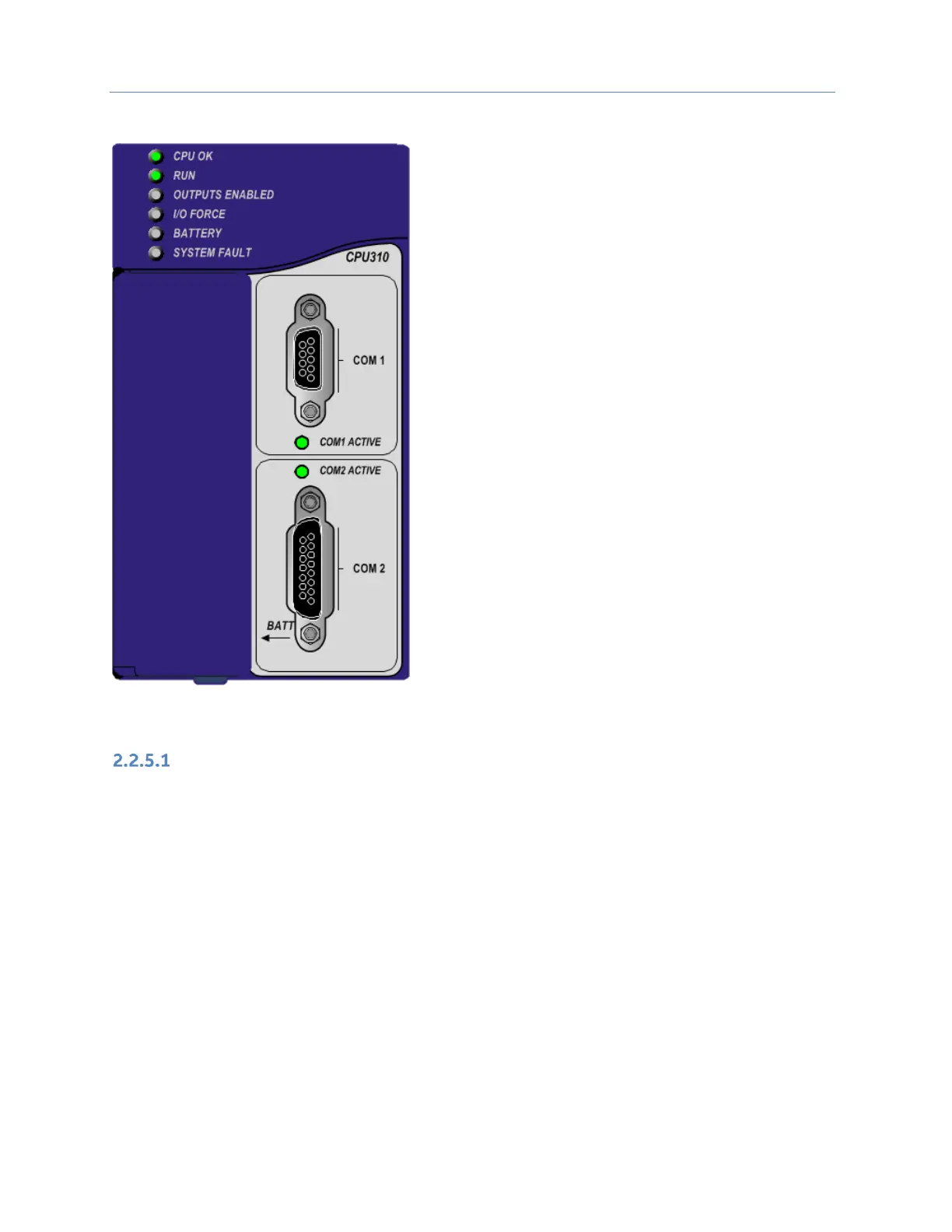

Figure 28: IC695CPU310 Front View

Serial PortsCPU310

The CPU has two independent, on-board serial ports, accessed by connectors on the front of the module.

COM1 and COM2 provide serial interfaces to external devices. Either port can be used for firmware

upgrades. For serial port pin assignments and other details on serial communications, refer to Chapter

Default Chapter4
