4-20 Chapter 4 - General Procedures and Functional Checks
PRELIMINARY
4-3-5-2 ECG Functionality Checks
The system automatically detects the ECG module once connected. The indication for the user is
displayed in the Peripherals status area.

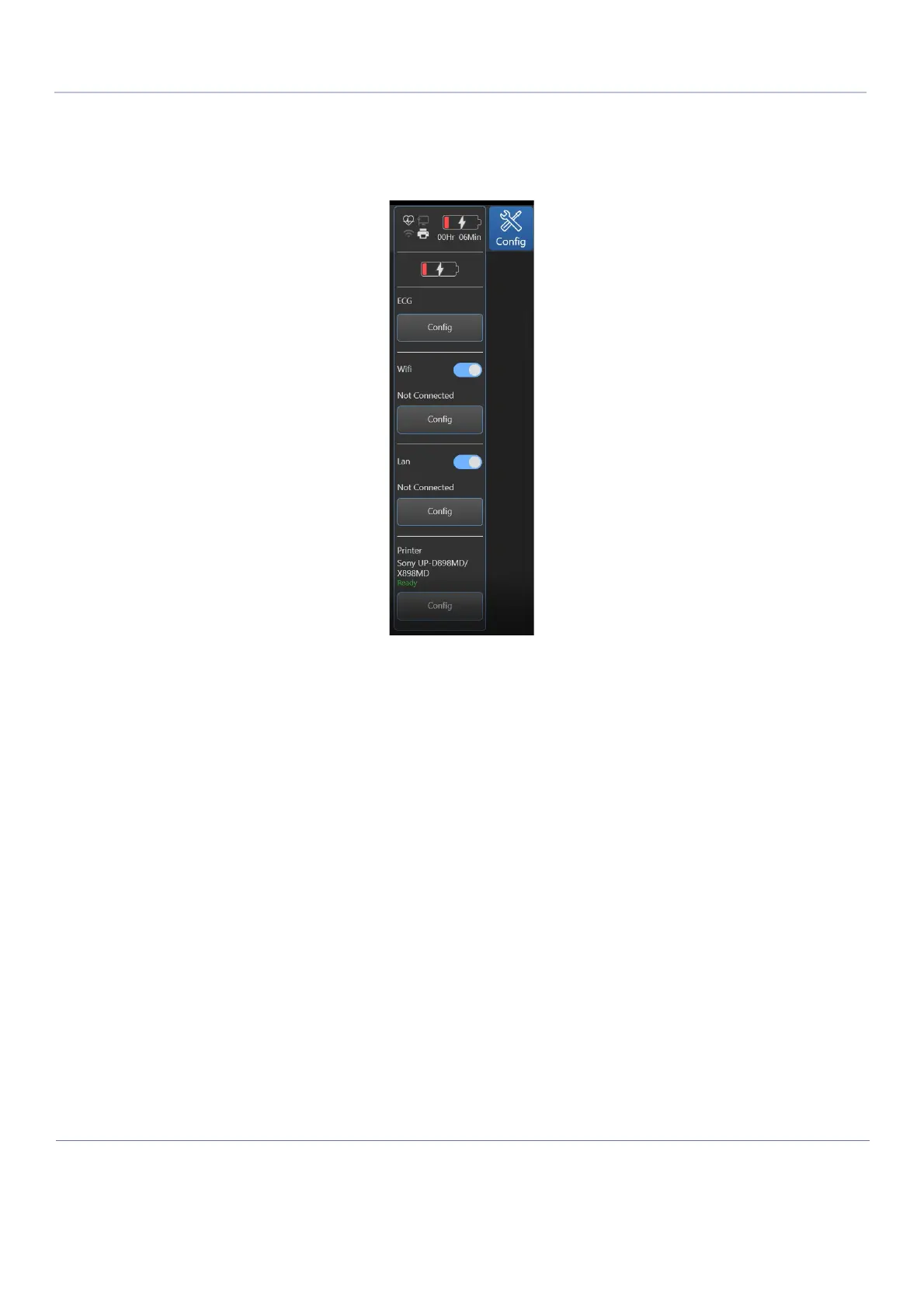

Figure 4-56 Peripheral Status Area
In order to check the functionality of the ECG device, the ECG leads need to be connected to person
body or to an ECG simulator.
