GE Venue Fit - M-BEB Installation Procedure

DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-19
PRELIMINARY
8-2-8-5 M-BEB Installation Procedure
1.) Install SSD.
2.) Install the C-BEB.
3.) Reconnect the eDP cable.
4.) Insert the protruding eDP cable part into the designated groove to avoid cable pinching while
closing the back cover.
5.) Secure the 5 screws (long screws are used for the heat sink).
6.) Install the Magram
7.) Install the fan.
8) Install C-PSB.
9) Install Speakers.
10.)Install Rear cover.

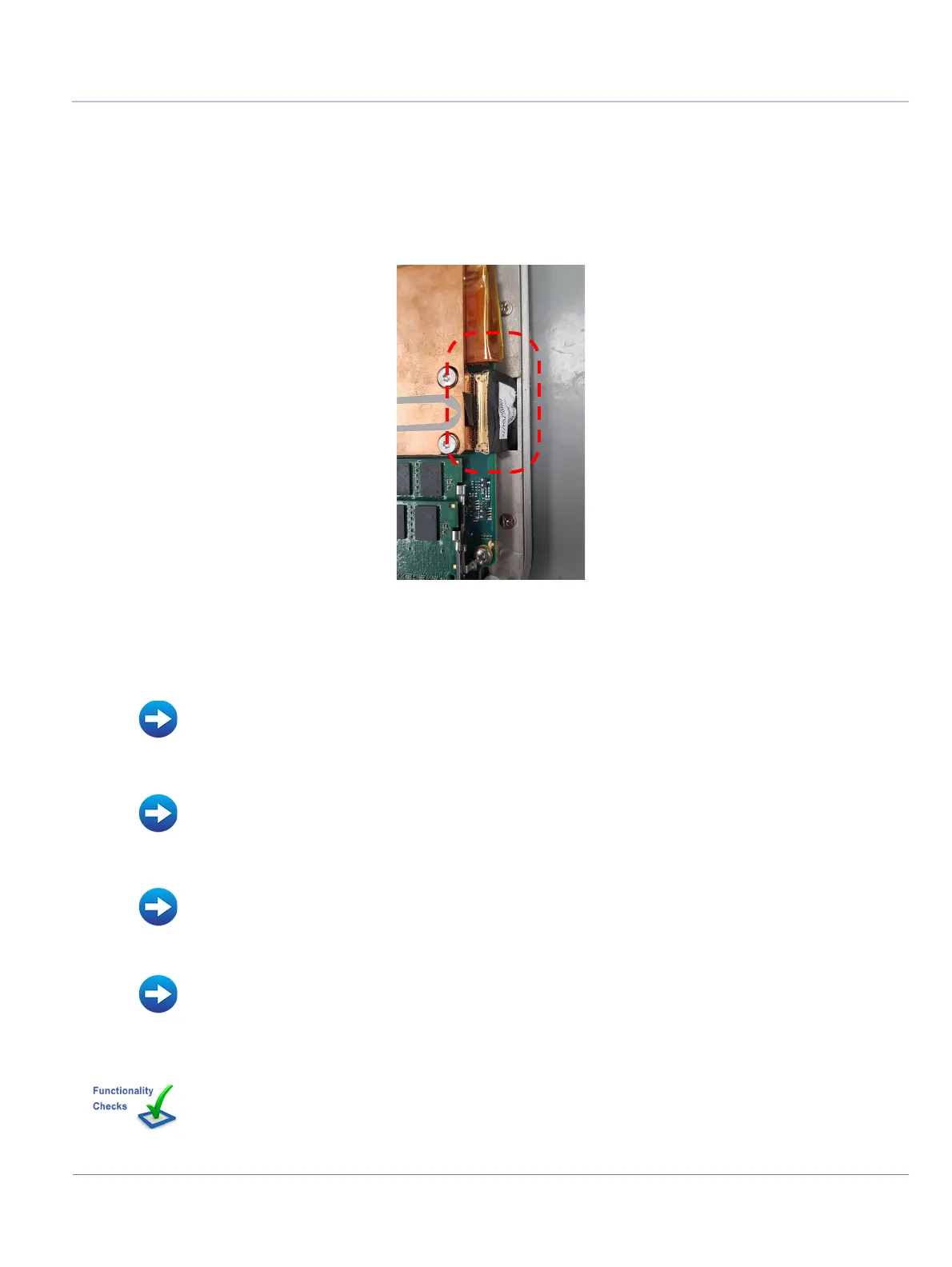

Figure 8-46 Insert the Protruding Part into the designated groove
• Fan Installation Procedure
• Speakers Installation Procedure
• Speakers Installation Procedure
• Rear Cover Installation Procedure
Perform the checks listed in Tab le 8 - 3 6 - System Parts section
