ADV200 • Quick start up guide 81

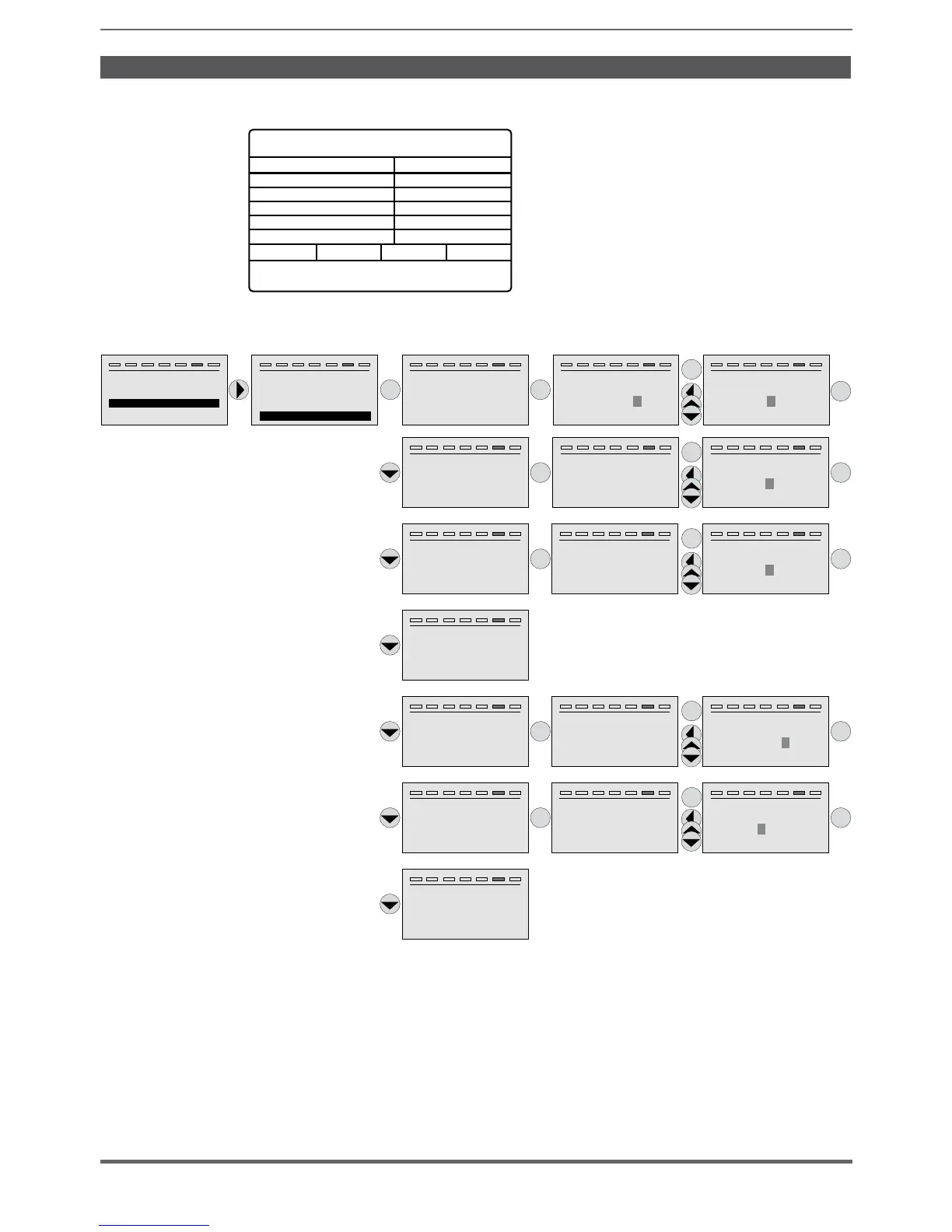

Step 2 - Setting motor parameter (Set motor data)
Set the rating data of the motor connected: rated voltage, rated frequency, rated
current, rated speed, rated power, power factor (cosφ).
10 Hp
Motor: 3 phase
720 rpm
Motor &Co.
Type: ABCDE
380 V
IP54
Made in ..............
19.0 A
IEC 34-1/VDE 0530
Iso Kl F
Nr
.
12345-91
S1
50 Hz
Power factor
0.83
I nom
Rated voltage
Rated power
Rated speed (n )
N
The self-tuning procedure is described below using the data of an imaginary motor
by way of example.
T+ T-ENLOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
Set motor data ?
E=Yes Down=Next
E
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 2000
Rated voltage
+400 V
Def: +400
T+ T- EN LO C ILim n:0 AL
13.01
PA R: 100
Rated voltage
+ V
Def: +400
000000400
E
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 2000
Rated voltage
+ V
Def: +400
000000400
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 2000
Rated voltage
+ V
Def: +400
000000380
E
E
T+ T- EN LO C ILim n:0 AL
SEQ.02
PA R: 2002
Rated current
+11.8 A
Def: +11.8
E E
T+ T- EN LO C ILim n:0 AL
SEQ.02
PA R: 2002
Rated current
+ 0000011.8 A
Def: +11.8
E
T+ T- EN LO C ILim n:0 AL
SEQ.02
PA R: 2002
Rated current
+ A
Def: +11.8
0000019.0
T+ T- EN LO C ILim n:0 AL
SEQ.03
PA R: 2004
Rated speed
+1450 rpm
Def: +1450
E E
E
T+ T- EN LO C ILim n:0 AL
SEQ.03
PA R: 2004
Rated speed
+ rpm
Def: +1450
000000720
T+ T- EN LO C ILim n:0 AL
SEQ.03
PA R: 2004
Rated speed
+ 000001450 rpm
Def: +1450
T+ T- EN LO C ILim n:0 AL
SEQ.04
PA R: 2006
Rated frequency
+
50.0
Hz
Def: +50.0
T+ T- EN LO C ILim n:0 AL
SEQ.05
PA R: 2008
Pole pairs
+2
Def: +2
E E
E
T+ T- EN LO C ILim n:0 AL
SEQ.05
PA R: 2008
Pole pairs
+
Def: +2
000000004
T+ T- EN LO C ILim n:0 AL
SEQ.05
PA R: 2008
Pole pairs
+ 000000002
Def: +2
T+ T- EN LO C ILim n:0 AL
SEQ.06
PA R: 2010
Rated power
+5.50 kW
Def: +5.50
E E
E
T+ T- EN LO C ILim n:0 AL
SEQ.06
PA R: 2010
Rated power
+ kW
Def: +5.50
000007.36
T+ T- EN LO C ILim n:0 AL
SEQ.06
PA R: 2010
Rated power
+ 000005.50 kW
Def: +5.50
T+ T- EN LO C ILim n:0 AL
SEQ.07
PA R: 2012
Rated power factor
+0.83
Def: +0.83
Rated Voltage [V]: motor rated voltage as indicated on the data plate.
Rated current [A]: motor rated current, approximately, the value should not be less than 0.3 times the rated current of the
drive, output current class 1 @ 400V on the rating plate of the drive.
Rated speed [rpm]: motor rated speed, the value must reect the speed of the motor at full load at rated frequency. If slip is
indicated on the motor rating data, set the Rated speed parameter as follows:
Rated speed = Synchronous speed - Slip
Rated frequency [Hz]: motor rated frequency, as shown on the data plate.
Pole pairs: Number of motor pole pairs. The number of motor pole pairs is calculated using the data on the plate and
the following formula: P = 60 [s] x f [Hz] / nN [rpm]
Where: p = motor pole pairs
