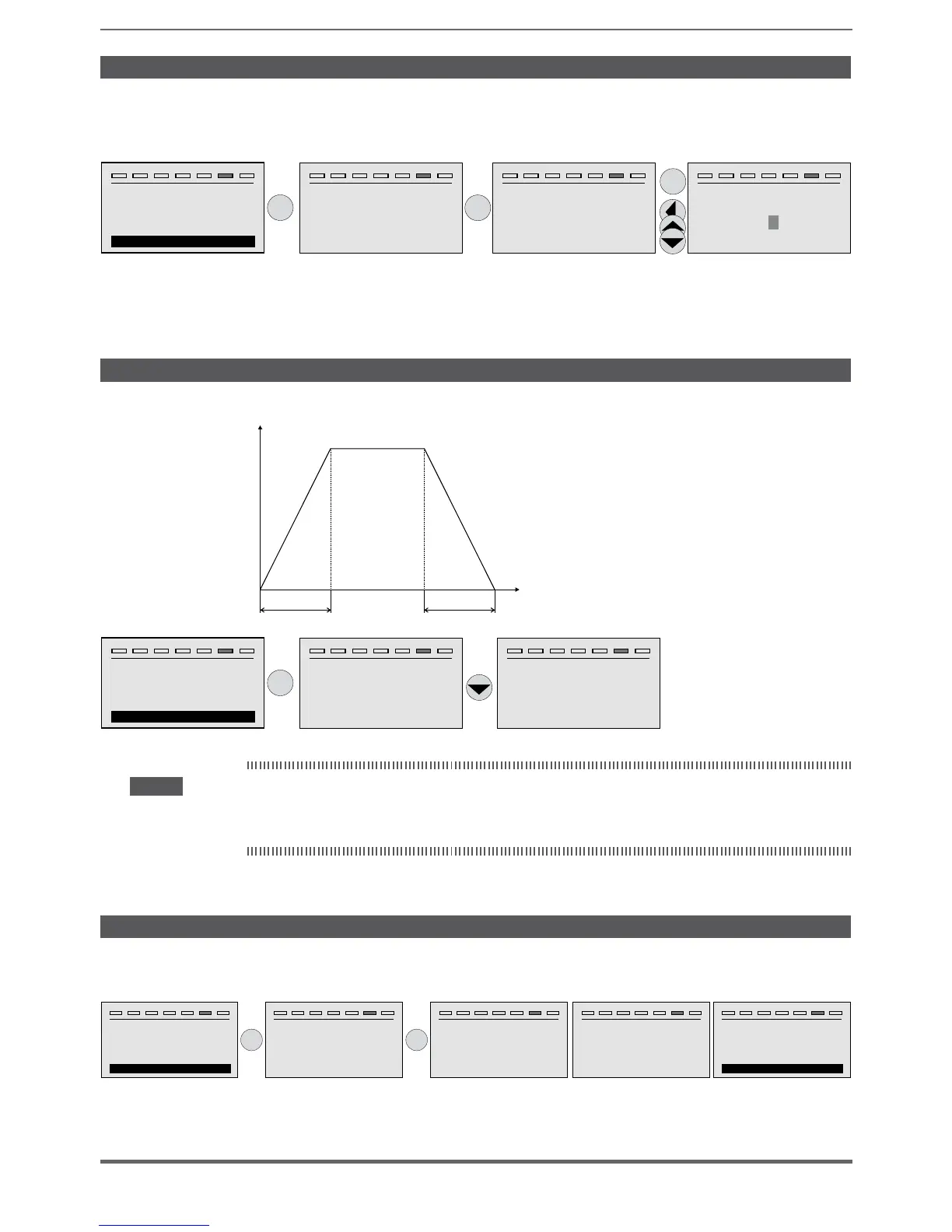

gefran ADV200 Series - Page 95

ADV200 • Quick start up guide 95
Step 6 - Setting the maximum speed reference value (Set max speed)
This step is used to dene the maximum motor speed value that can be reached
with each single reference signal (analog or digital).
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
Set max speed ?
E=Yes Down=Next
E
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 680
Full scale speed
+1500 rpm
Def: +1500
E
E
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 680
Full scale speed
+ rpm
Def: +1500
000000750
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 680
Full scale speed
+ 000001500 rpm
Def: +1500
After setting the speed, proceed to Step 7 to set the acceleration and deceleration
ramp parameters.
Step 7 - Setting ramp parameters (Set ramps)
Set the acceleration and deceleration times for the prole of ramp 0 :
PAR: 700 PAR: 700
Frequency
T
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
Set ramps ?
E=Yes Down=Next
E
T+ T- EN LO C ILim n:0 AL
SEQ.01
PA R: 700
Acceleration time 0
+10.00 s
Def: +10.00
T+ T- EN LO C ILim n:0 AL
SEQ.02
PA R: 702
Deceleration time 0
+10.00 s
Def: +10.00
Note ! After setting the acceleration and deceleration ramps, the parameters that have been set manually and
calculated using the self-tuning procedures can be saved permanently in a non-volatile flash memory.
To save the parameters proceed to Step 8.
Step 8 - Saving parameters (Save parameters)
To save the new parameter settings, so that they are maintained also after power-
off, proceed as follows:
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
Save parameters ?
E=Yes Down=Next
E
T+ T- EN LO C ILim n:0 AL
Save parameters
SEQ.01
PA R: 550
PressEto execute
E
T+ T- EN LO C ILim n:0 AL
Save parameters
SEQ.01
PA R: 550
In progress
T+ T- EN LO C ILim n:0 AL
Save parameters
SEQ.01
PA R: 550
Done
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
End of sequence !
Up=Back Down=Exit
