April 2018 Maintenance Manual
Annual Maintenance Procedures
Part No. 1268489GT S
®
Booms • Z
®
Booms 101
A-1
Grease the Turntable Rotation
Bearing and Rotate Gear
Genie specifications require that this procedure be
performed annually.
Perform this procedure more often if dusty
conditions exist and when operating the machine in
high temperature environments.
Frequent application of lubrication to the turntable
bearing and rotate gear is essential to good
machine performance and service life. Continued
use of an improperly greased bearing and gear will
result in component damage.
1 Locate the grease fitting for the turntable
rotate bearing.
2 Pump grease into the turntable rotation
bearing. Rotate the turntable in increments of
4 to 5 inches / 10 to 13 cm at a time and repeat
this step until the entire bearing has been
greased.
3 Models with Drive Gear: Apply grease to
each tooth of the drive gear, located under the
turntable.
Models with Worm Drive Gear: Grease
each tooth on the outside of the turntable
rotation bearing.
Models with Worm Drive Gear:

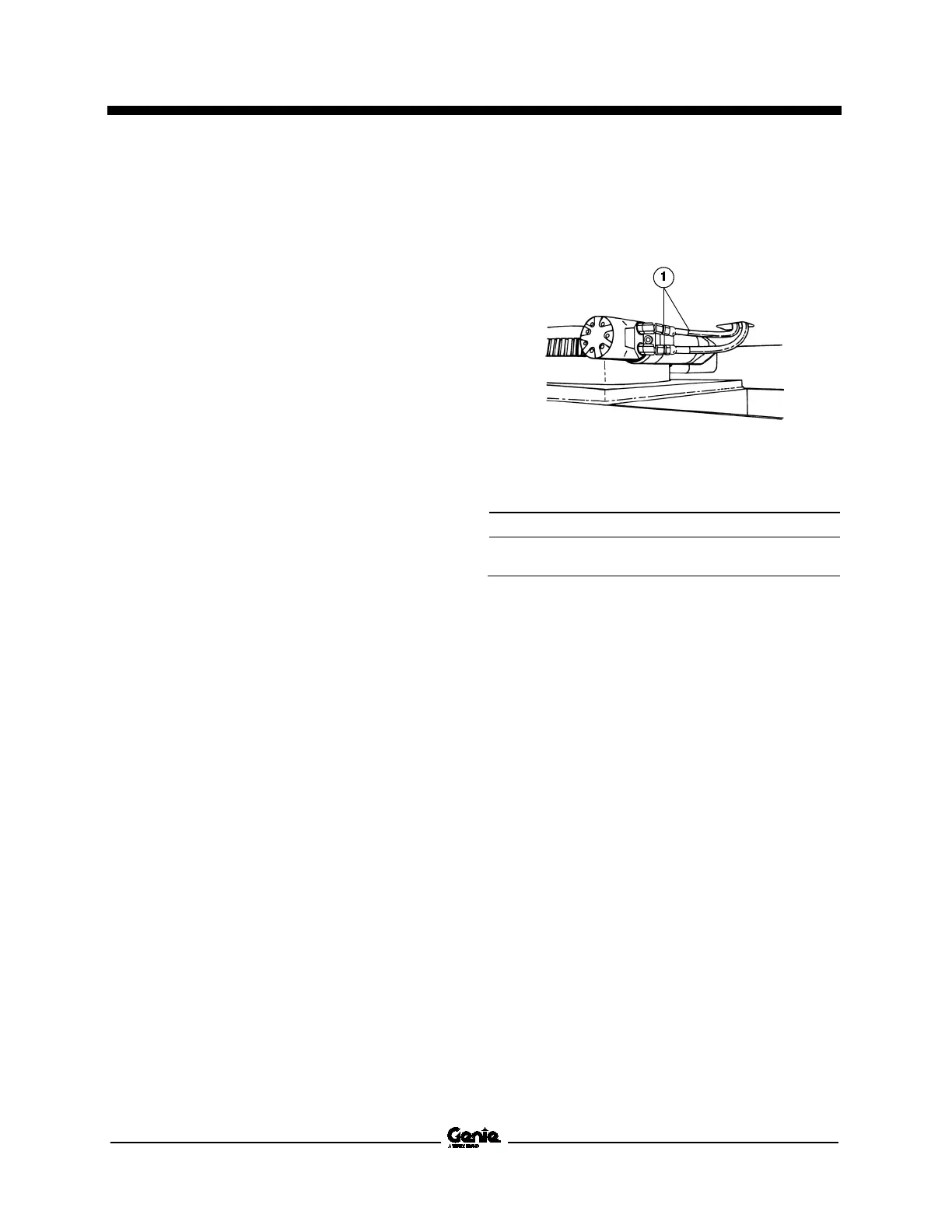

1 Locate the 2 grease fittings on top of the worm
drive housing.
1 grease fittings
2 Pump grease into the gear until you see it
coming out of the side of the gear housing.
Grease Specification
Chevron Ultra
-duty grease, EP NLGI 1 (lithium based)
or equivalent
