Genie Z Series User Manual

April 2018 Maintenance Manual
Programmed Maintenance Procedures
Part No. 1268489GT S
®
Booms • Z
®
Booms 131
P0-3
Grease the Extendable Axles -
S-100, S-105, S-120, S-125,
S100HD and S-120HD
Manufacturer specifications require that this
procedure be performed every 50 hours.
Lubricating the front and rear axles helps to ensure
the smooth operation of the axles over the lifetime
of the product. Two fittings on each axle are
provided to apply grease the top and bottom sliding
wear pads.

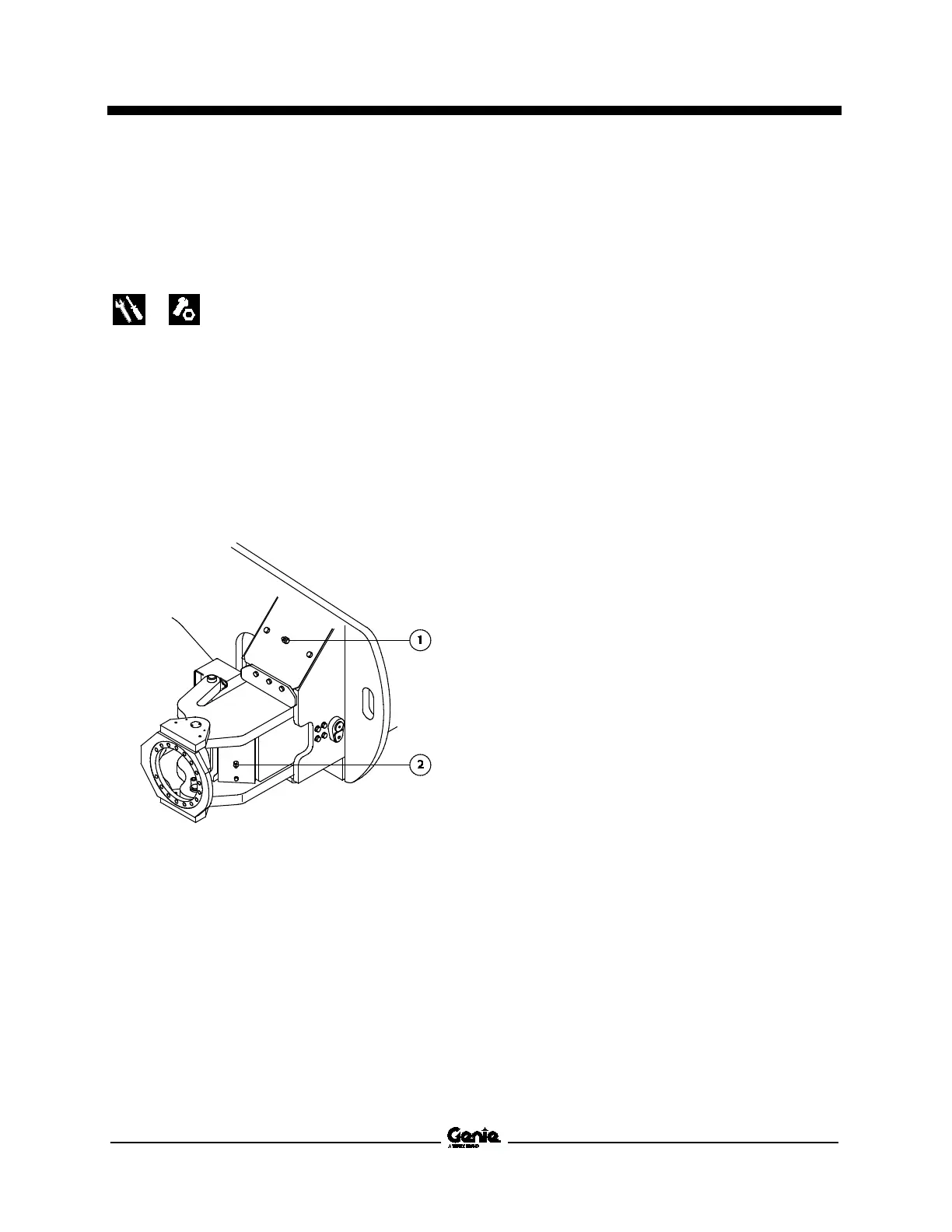

1 Locate the grease fittings on the extendable
axles covers.
1 Top wear pad grease fitting
2 Side wear pad grease fitting
2 Thoroughly pump grease into each grease
fitting. When grease is pumped into each
fitting, a hose directs this lubrication to the top
or bottom wear pad.
3 Cycle the extending axles in and out.
Note: Genie recommends that the extending axles
be cycled in and out at least once a week.

Genie Z Series Specifications

General

Lift Capacity	500 lb (227 kg) to 660 lb (300 kg)
Gradeability	30%
Power Source	Diesel, Electric
Capacity	500 lb (227 kg) to 1, 000 lb (454 kg)
Drive System	4-wheel drive
Tire Type	Solid
Steering	2-wheel or 4-wheel
