Maintenance Manual April 2018
Quarterly Maintenance Procedures
60 S
®
Booms • Z
®
Booms Part No. 1268489GT
Q-18
Test the Recovery System -
ALC-1000 Models
Genie specifications require that this procedure be
performed quarterly.
A properly functioning recovery system is essential
to safe machine operation. The Recovery mode
allows the platform to be lowered in the event the
operator in the platform is unable to lower the
platform using the platform controls, system failure
or emergency situations.
This maintenance procedure applies to the
following models: S-100, S-105, S-120, S-125,
S-100HD, S-120HD, SX-105 XC, SX-125 XC,
SX-135 XC, SX-150, SX-180, Z-80/60, Z-135/70
and ZX-135/70.
Note: Perform this procedure with the machine on
a firm, level surface with the axles extended.
Note: Perform this procedure with all weight, tools,
equipment and personnel removed from the
platform.
Note: If any boom safety limit switches are
faulty, the primary boom will only retract and
not lower.

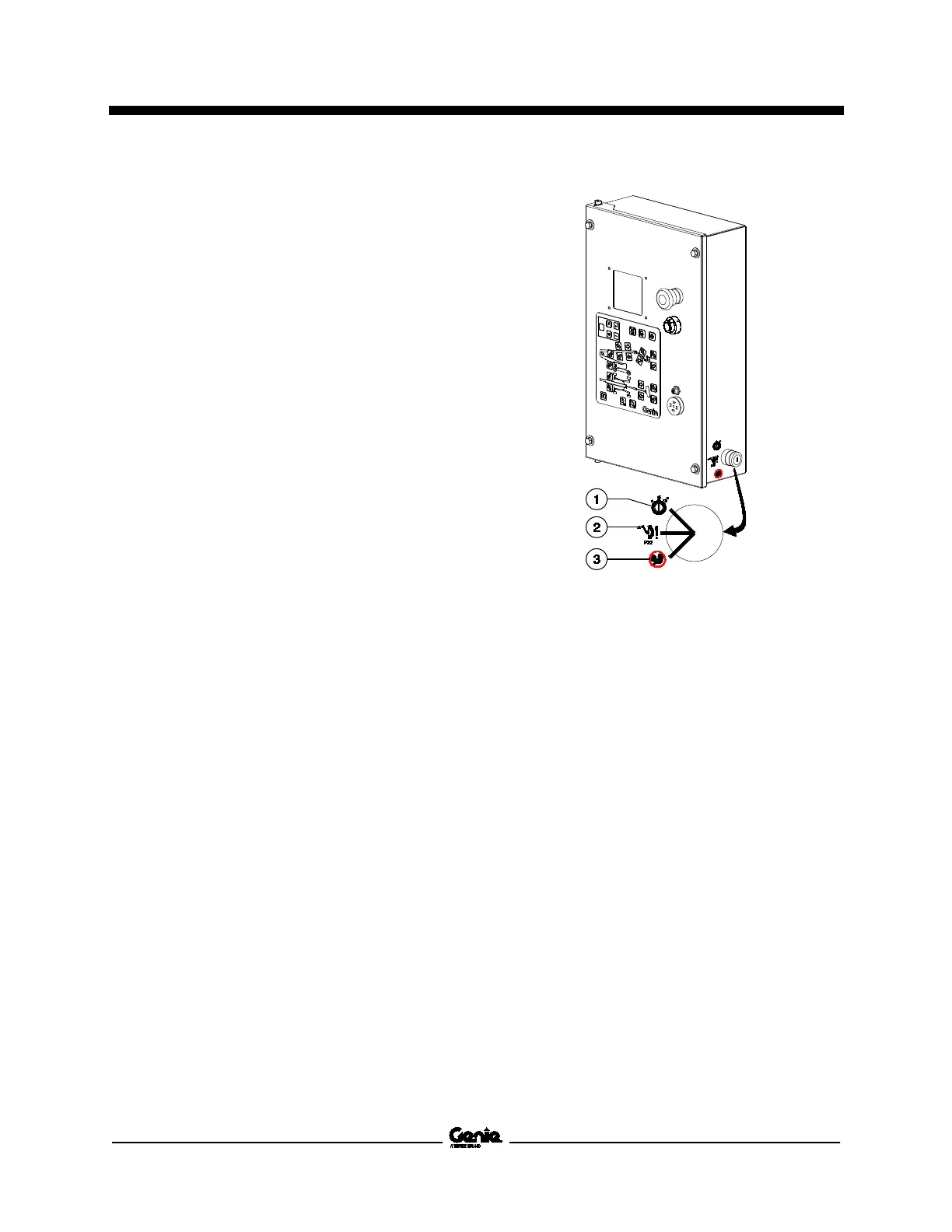

1 Run
2 Bypass
3 Recovery
1 Turn the key switch to the ground control and
pull out the red Emergency Stop button to the
on position. Start the engine.
Z-80, Z-135 and ZX-135 models:
2 Fully raise the secondary boom then extend it
approximately 4 ft / 1.2 m.
All models:
3 Raise the primary boom approximately 15°
then extend it approximately 4 ft / 1.2 m.
4 Turn the key switch to the off position to turn
off the engine. Turn the key switch back to
ground controls.
Note: If this procedure is performed with the main
key switch in the off position an active latched
safety fault will be set and will have to be cleared.
