Genie Z Series User Manual

April 2018 Maintenance Manual
Quarterly Maintenance Procedures
Part No. 1268489GT S
®
Booms • Z
®
Booms 59
Q-17
Inspect the Calibration Decal -
ALC-1000 Models
Genie specifications require that this procedure be
performed quarterly.
Maintaining the safety decal in good condition is
mandatory for safe machine operation. Decals alert
operators and personnel to the many possible
hazards associated with using this machine. They
also provide users with operation and maintenance
information. An illegible decal will fail to alert
personnel of a procedure or hazard and could
result in unsafe operating conditions.
This maintenance procedure applies to the
following models: S-100, S-105, S-120, S-125,
S-100HD, S-120HD, SX-105 XC, SX-125 XC,
SX-135 XC, SX-150, SX-180, Z-80/60, Z-135/70
and ZX-135/70.
1 Turn the key switch to the off position and
push in the red Emergency Stop button to the
off position at the ground controls.
2 Open the turntable cover on the ground
controls side of the machine.
3 Open the ground control box.
4 Verify the ground control panel is equipped
with the required calibration decal.
Result: The control box is equipped with the
required decal and is legible and in good
condition.
Result: The control box is not equipped with
the required decal, or is illegible or in poor
condition. Remove the machine from service
until the decal is replaced.
Note: Contact your authorized Genie distributor or
Genie if a replacement is required.

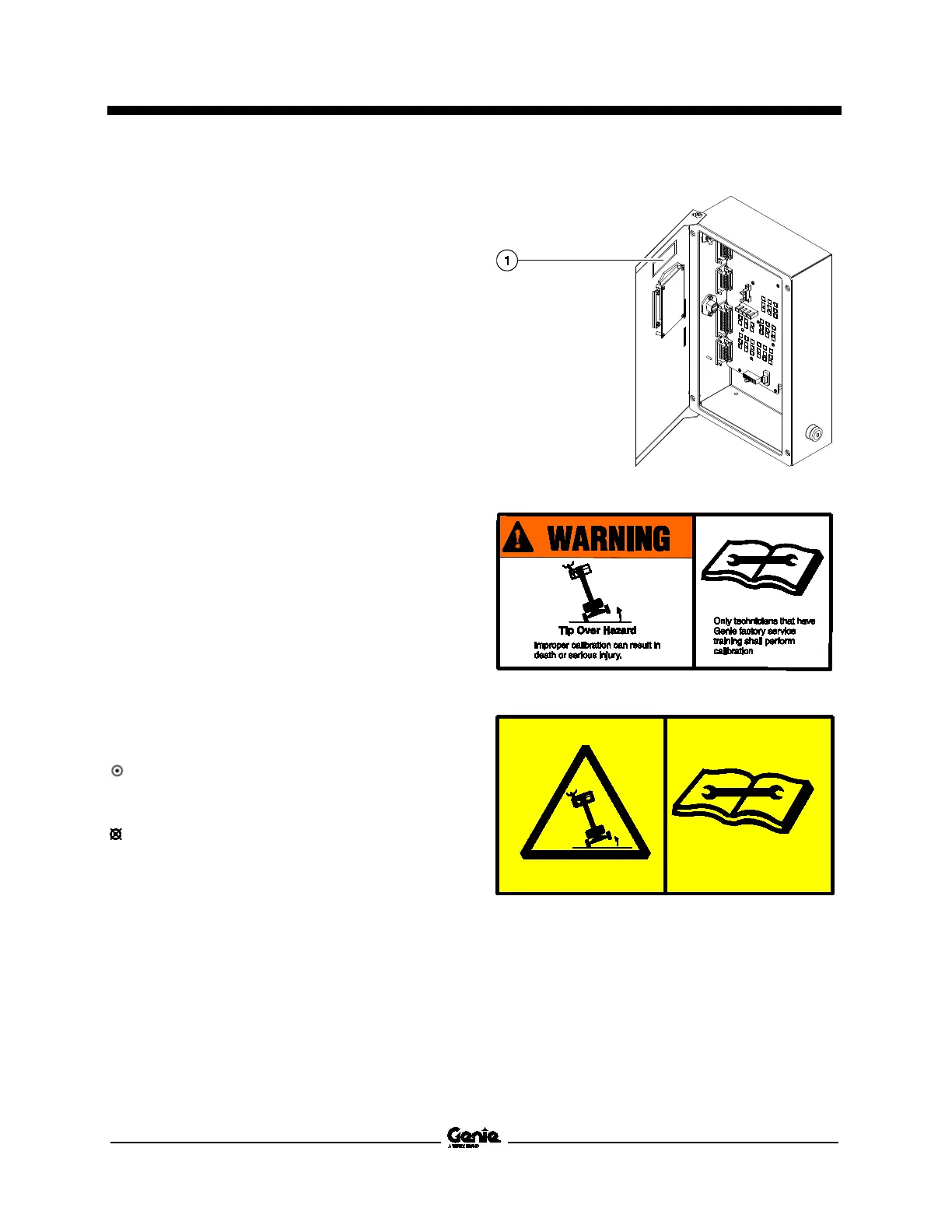

1 calibration decal
ANSI and CSA
CE and AUS
