Genie Z Series User Manual

Maintenance Manual April 2018

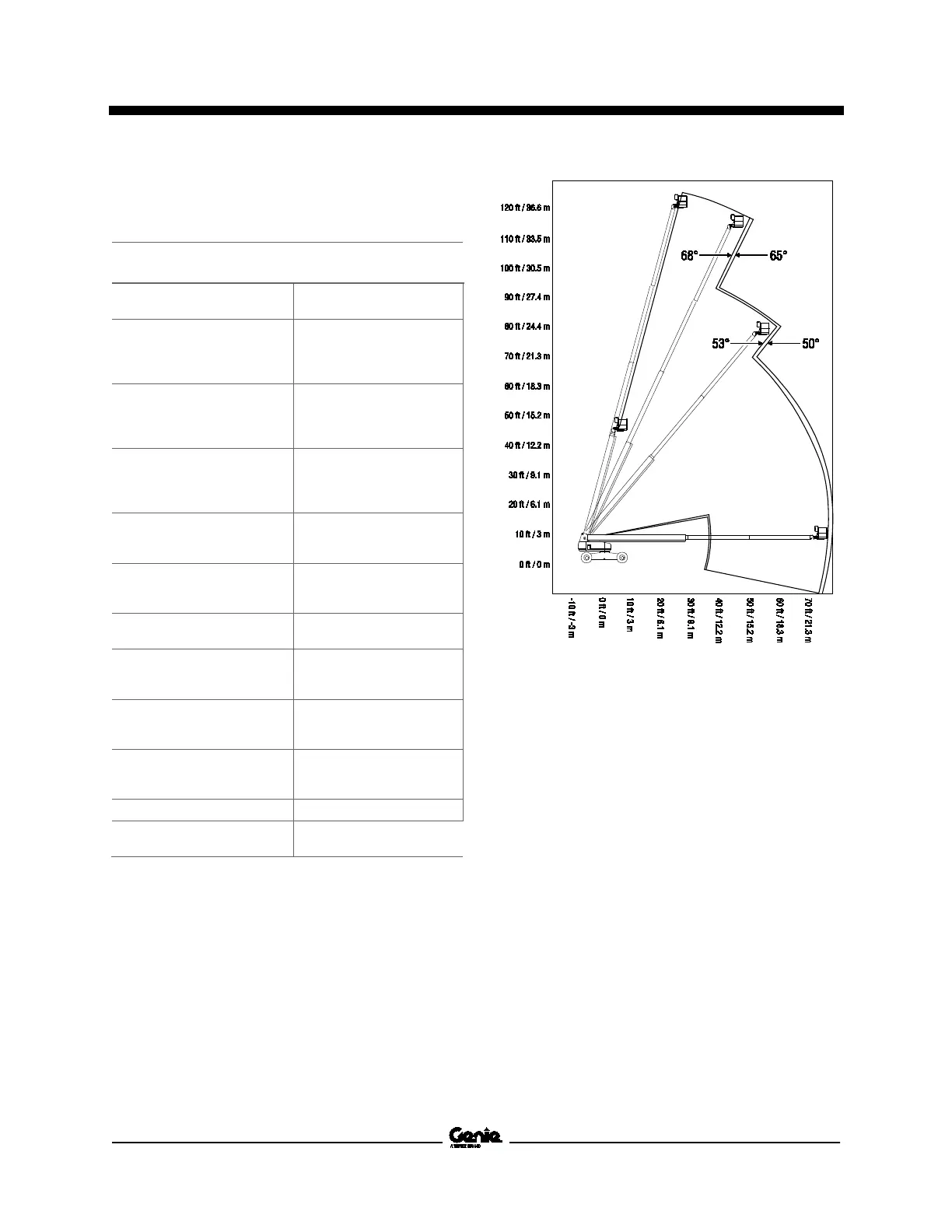

Performance Specifications
2 S
®
Booms • Z
®
Booms Part No. 1268489GT
Function Speeds - S-120, S-125
and S-120HD Models
Note: Function
speeds are maximum from platform
controls with maximum rated load in platform.
Primary boom up/down,
(retracted)
80 - 88 seconds
Primary boom up/down,
extended to >4 ft / >1.2 m
(time from fully stowed to the
fully raised position)
100 - 100 seconds
Primary boom up/down,
extended to >80 ft / >24.4 m
(time from 53° envelope limit to
the fully raised position)
50 - 55 seconds
Primary boom up/down,
extended to >100 ft / 30.5 m
(time from 68° envelope limit to
the fully raised position)
24 - 28 seconds
Primary boom extend,
fully raised position
(0 to 100 ft / 0 to 30.5 m)
170 - 190 seconds
Primary boom retract,
fully raised position
(100 to 0 ft / 30.5 to 0 m)
170 - 190 seconds
Jib boom up/down,
(S-125 models)
28 - 32 seconds
Turntable rotate, 360°
boom horizontal and fully
retracted
170 - 190 seconds
Turntable rotate,
boom horizontal and extended
>0 ft / >0 m
63 - 70 seconds
drive enable to drive enable
Turntable rotate,
boom fully raised and extended
>80 ft / >24.4 m
109 - 120 seconds
drive enable to drive enable
Platform rotate 18 - 22 seconds
Platform level
(10° range of motion)
ANSI/CSA
AS/CE
3 - 5 seconds
20 - 22 seconds

Genie Z Series Specifications

General

Lift Capacity	500 lb (227 kg) to 660 lb (300 kg)
Gradeability	30%
Power Source	Diesel, Electric
Capacity	500 lb (227 kg) to 1, 000 lb (454 kg)
Drive System	4-wheel drive
Tire Type	Solid
Steering	2-wheel or 4-wheel
