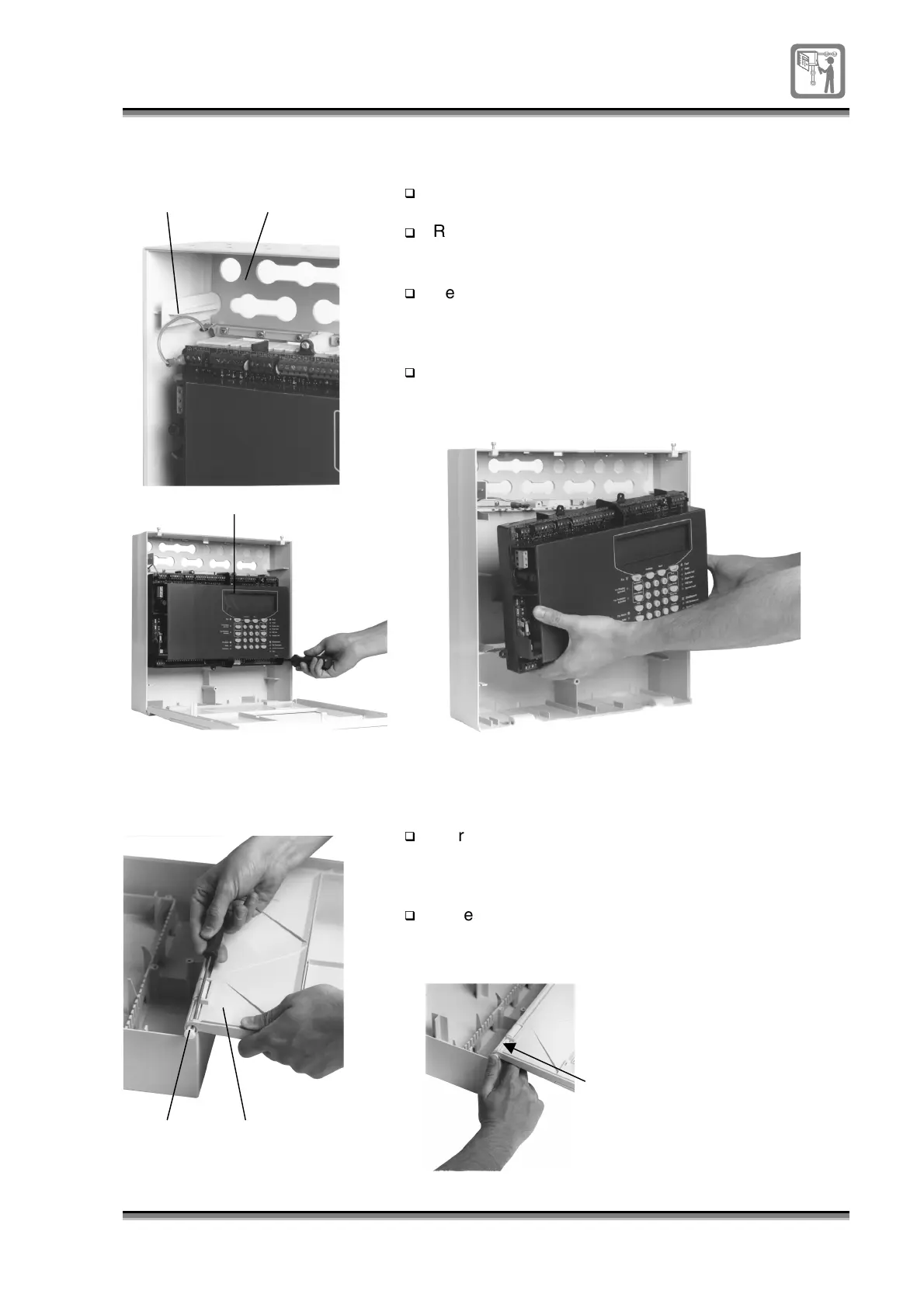

To
remove and refit the
electronic module
Earth lead Gland plate
Electronic module
The
electronic module
should be removed from the
backbox
to prevent building dust getting into the module.
Remove the
earth lead
connected to the
gland plate
.
Remove the five fixing screws that are used to secure
the
electronic module
to the
backbox
.
Remove the
electronic module
from the
backbox.
Keep
the
electronic module
, earth lead and screws in a safe
place until required.
To refit the electronic module: follow the procedure in
reverse order.
To remove and refit the
panel door
Hinge pin Door
The
hinged door
on the panel may be removed from the
backbox
to ease installation work.
To remove the door: Hold the door and use a terminal
screwdriver to push out the two hinge pins, one at a
time.
To re-fit the door: Hold the
door
to the
back box
and
with the
hinge pins
slot visible insert the pin into the
assembly until it click fits into position.
Hinge pin slot must be visible
