Gent System 800 - To Power up the Loop Circuit; (Assuming the Loop Is Powered Down)

32
796688 (4188-657)_i2 _06/03

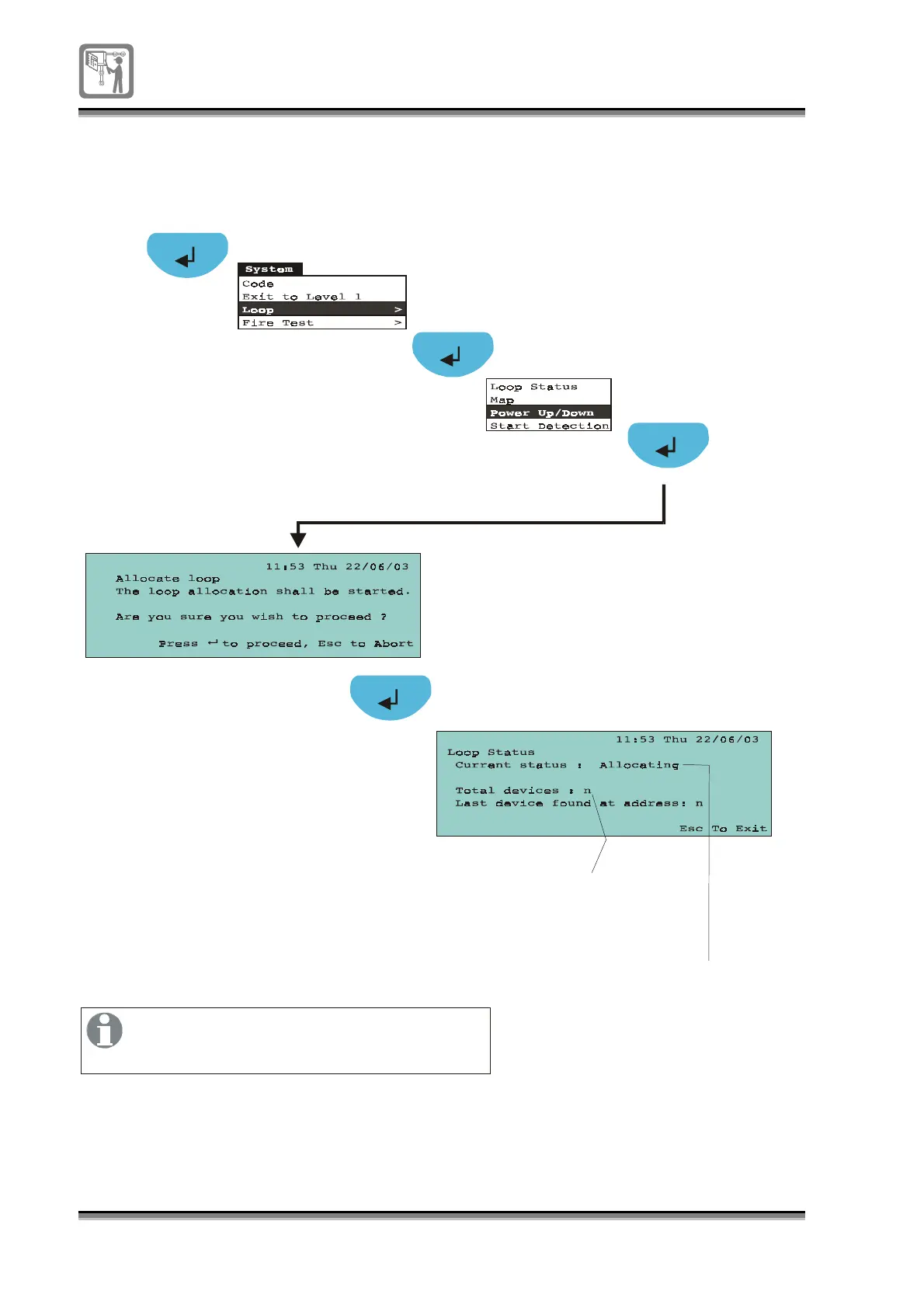

To power up the loop circuit
(assuming the loop is powered down)
This number will increment as devices are
allocated. The allocation process can
take several minutes
‘Allocated’
‘Runnin
g
’ - if no chan
g
es to the loop map
- if loop map has chan
g
ed
A3
If the loop map has chan
g
ed, only then
the loop detection process must be started
manually, see
To start detection process.
