Gent System 800 - Common Fault Output; Auxiliary Relay Output

796688 (4188-657)_I1.2 / 02.02
17

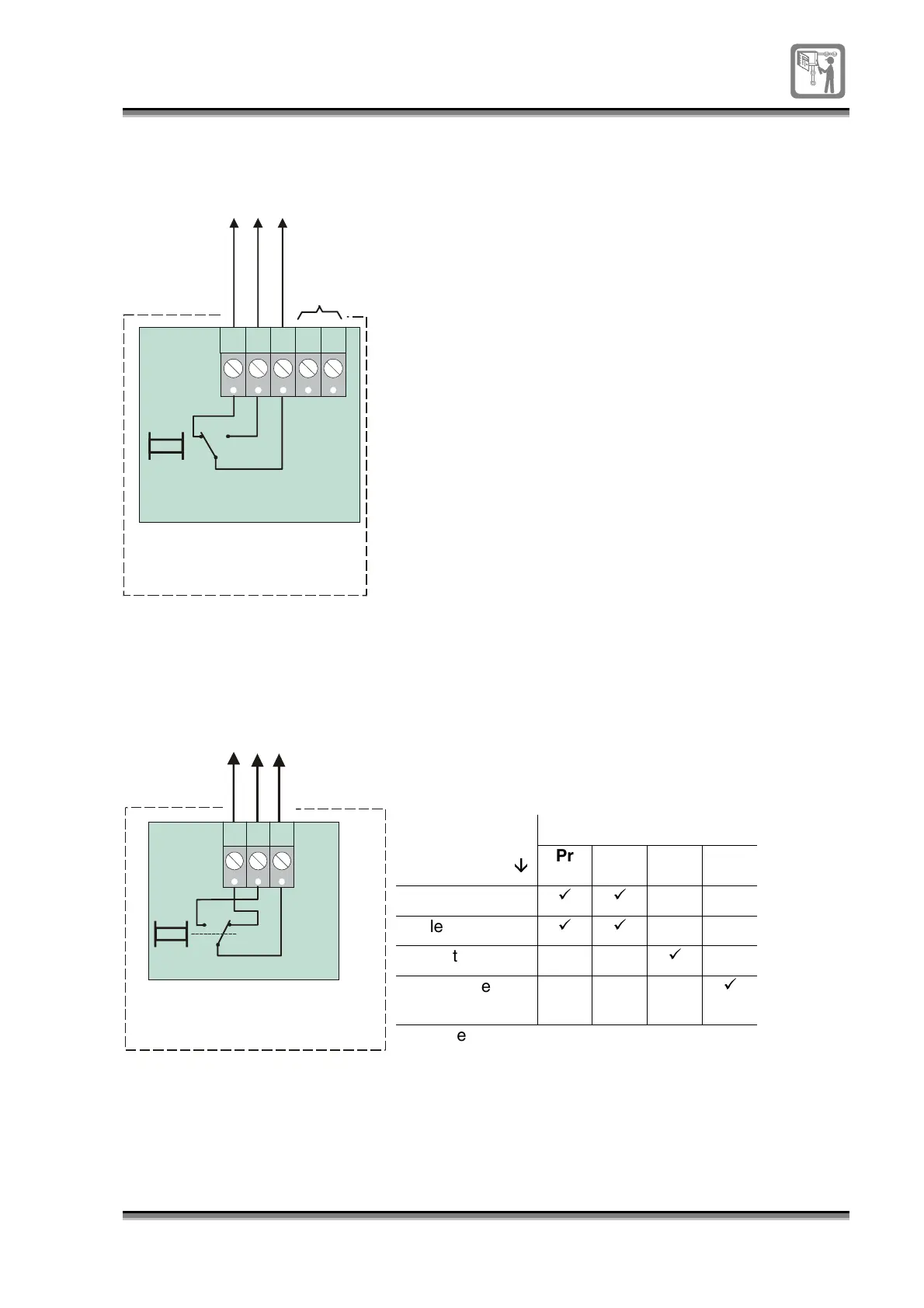

Common fault output
The system 800 panel has a common output that
operates when the panel goes into a fault condition. The
contacts are shown in their normally energised position
and are rated 2A at 30V maximum. The contacts can be
used to switch external equipment on occurrence of a
fault via the voltage free contacts. The fault output can be
controlled using the fault routing facility.
Auxiliary relay output
The system 800 panel has an auxiliary relay that can
operate when a fire event is detected in the system
(default setting). The relay contacts are rated 2A @ 30V
maximum. This output can be used to signal external
equipment in the event of a fire in the system. The relay is
is automatically reset with the following settings:
Common
Relay resets
with
È
È
Pr Fi Fa Di
System reset
99
Silence Alarms
99
Fault removed
9
Disablement
removed
9
Pr – prealarm
Fi – Fire
Fa - Fault
Di - Disablement
In addition to the fire mode of operation, it is possible to
configure the relay to operate with a prefire, fault or
disablement conditions.
Electronic
Module
Control panel
Common fault output via
chan
g
e over contacts
rated 2A @ 30V maximum
COMMON
FAULT
NO
NC
C
P15
I/P
0V
Not used
Contacts shown with the relay
normally ener
g
ised, this is the normal
operatin
g
state.
Electronic
Module
Control panel
AUX
C
P16
NC NO
Auxiliary relay output
via volta
g
e free contacts
Factory default: Auxiliary relay will
ener
g
ise with a fire event and is reset
with system reset
