Power up indications
and address allocation
On powering up the panel the display shows messages of
address allocation and the power on indicator is lit.
The allocation process
starts automatically and
thereafter the fire
detection. The loop is fully
operational and requires no
manual intervention to start
fire detection.
Tip The sounder control
transponder faults are
latching faults and will
require a panel reset to
remove the fault at the
transponder.

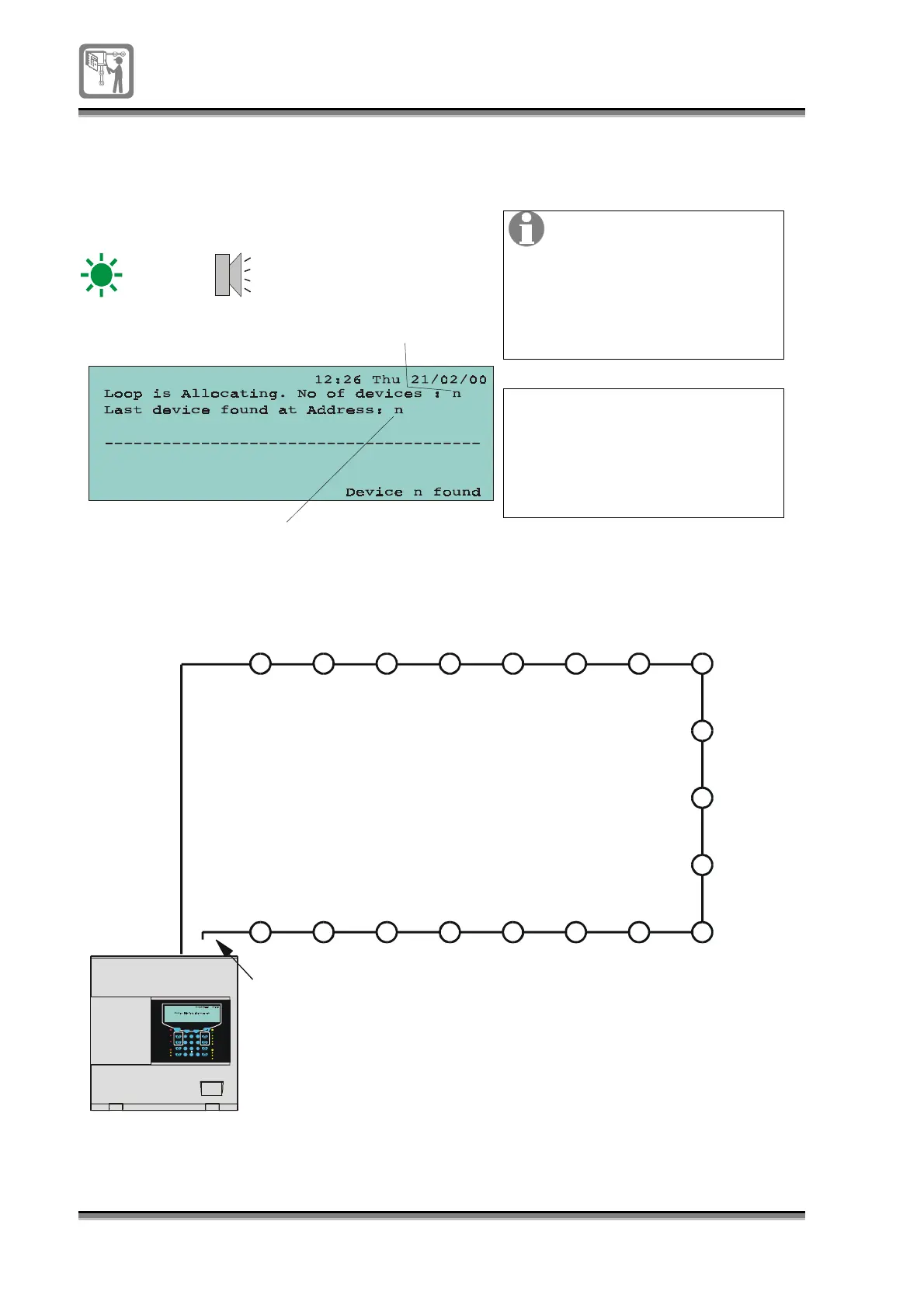

Allocation process
The addresses are allocated to each device on the loop
starting from End 1, in a numerical order, to End 2.
Power
The number of devices
allocated
The last device found durin
g
allocation
11
8
9
10
12
