Gent System 800 - To Reset All Configurations and Labels to Factory Settings59; To View Diagnostic Data

796688 (4188-657)_i2 _06/03
59

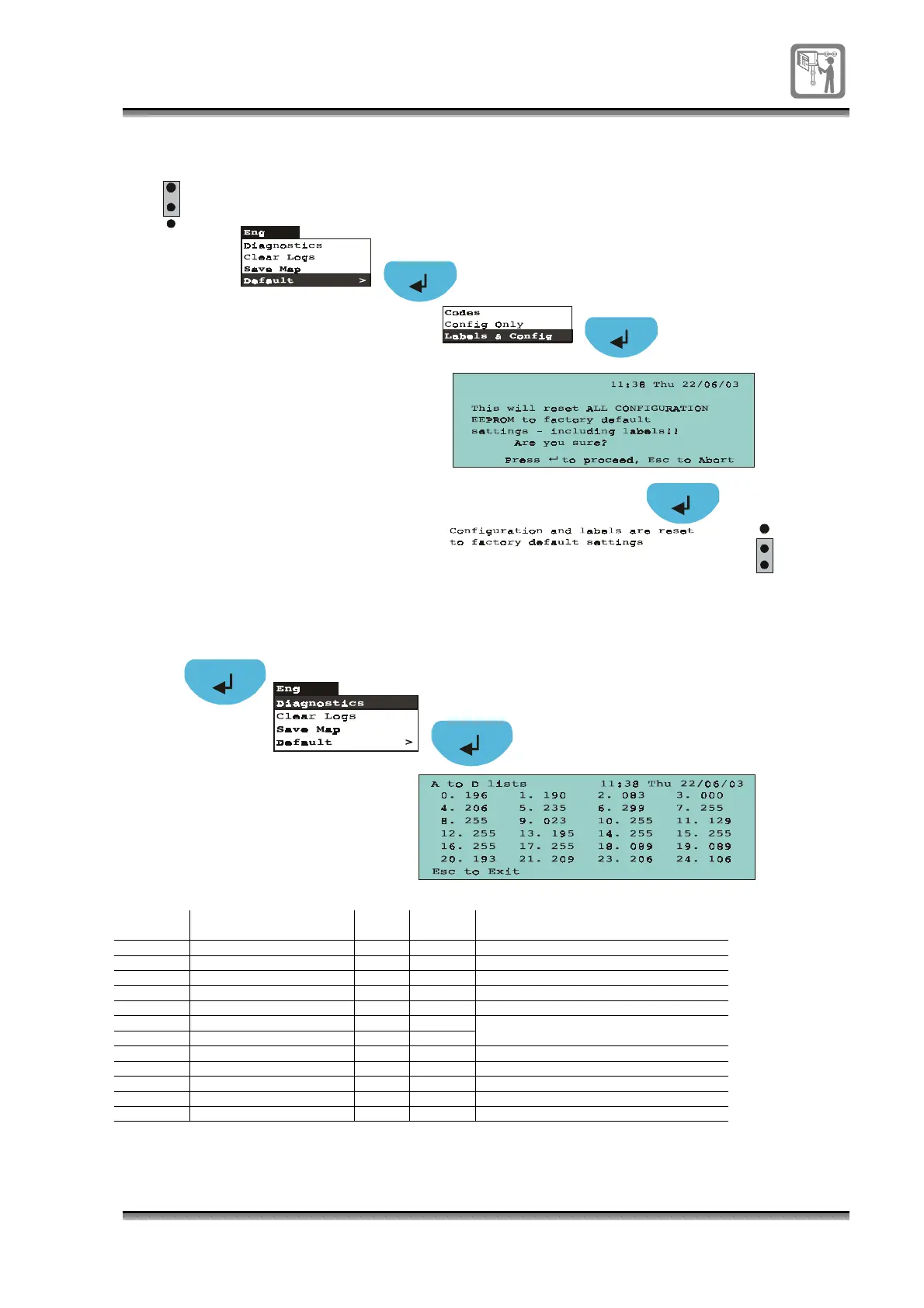

To reset all configurations and labels to factory settings
To view diagnostic data
A to D
reference
Description of A to D
reading
Lower
limit
Higher
limit
Condition
0 Mains 140 - Mains fault - Below the lower limit.
1 Earth 74 204 Earth fault – Outside the two limits
2 5V 223 255 5V supply fault – Outside the two limits
3 12V 1 255 12V supply fault – Outside the two limits
4 24V 140 203 24V supply fault – Outside the two limits
5 Sounder 1 58 150
6 Sounder 2 58 150
Short circuit fault if belwo the lower limit
Open circuit fault if above the higher limit
7 Battery charger
8 Initial battery 1 voltage
9 Initial battery 1 current
10 Final battery 1 voltage
11 EEPROM Charger (PWM)
A fault is indicated if the A to D value is outside the limits.
A3
A4
1
2
3
P1
EEPROM enable
1
2
3
P1
EEPROM enable
