Fire protection
equipment
(This facility is not yet available)

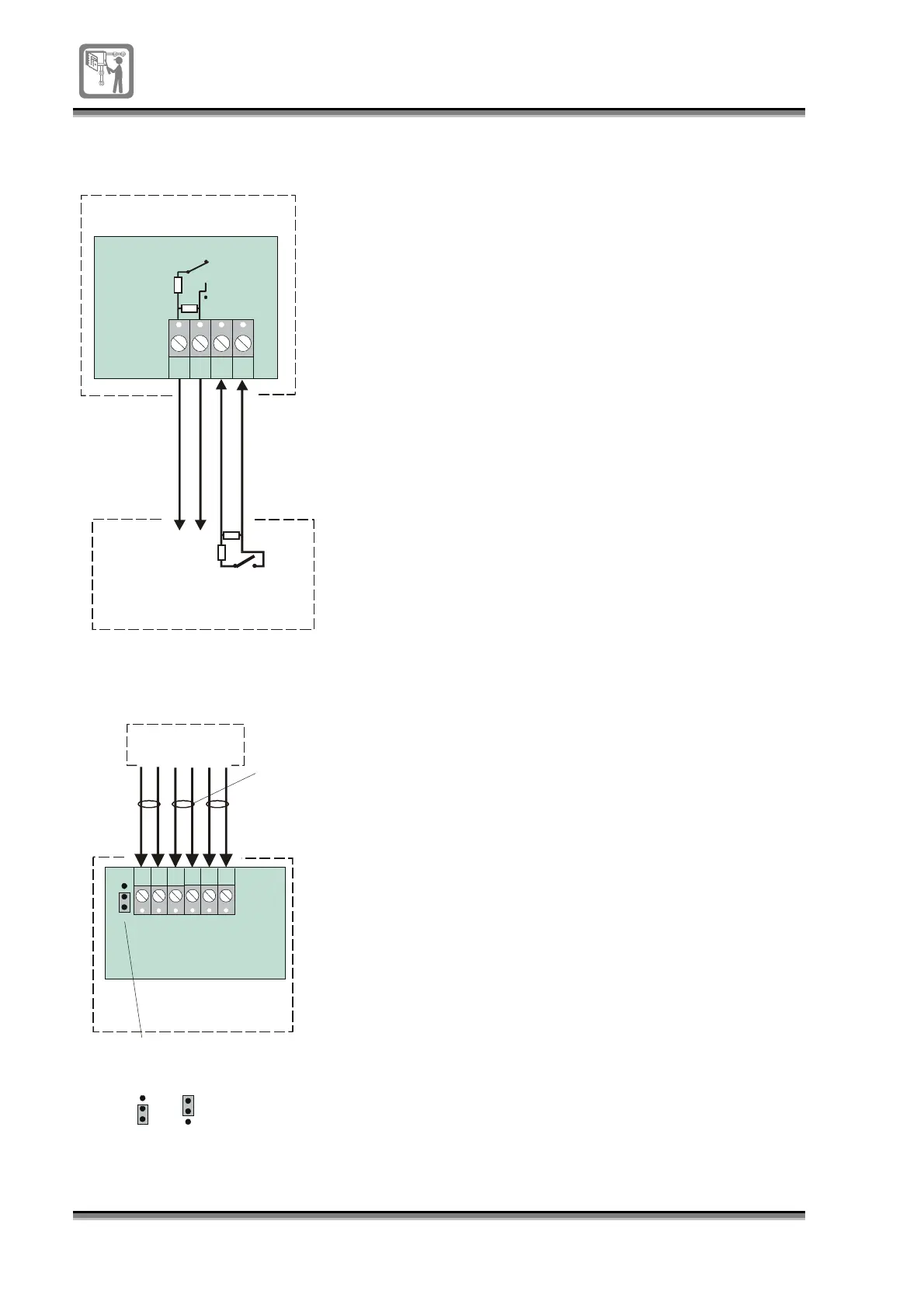

The system 800 panel has a fire protection equipment
output to trigger fixed extinguishing equipment.
External power supply
for alarm sounders
The system alarm sounders can be configured to operate
from the on board power supply or an external power
supply, by setting a link on the electronic module.
The panel is able to monitor the condition of the battery
and mains supply of the external power supply unit via
clean contacts. A closed clean contact at the power
supply equipment is a fault signal to the control panel.
Electronic
Module
Control panel
CNO0V
FIXED EXT
P17
I/P
Activate
FPE
Activated si
g
nal
from FPE
3k3
Fixed Protection Equipment (FPE)
680R
3k3
3k3
680R
Electronic
Module
Control panel
S election link for
interna l / ex te rnal
power suppl
y
EXT
PSU
EXT
BAT
EXT
MAIN
+
-
+
P21
0V
+
P36
1
2
3
P36
1
2
3
Internal
PSU
(Factory
default)
P36
1
2
3
External
PSU
0V
Power
from e xternal
24V power
suppl
y
M a ins failure input
Monitors
clean contacts
of external power
supply
Batter
y
failure input
Monitors
clean contacts
of external power
supply
External PSU
